1 InputAC110-220V 50-60HZ
2 ouputDC 3-20V/0-1000MA
3 LED :单色灯 红发红
4 符合安规认证EMC及ROHS 证书
5.此款有CE UL 证书

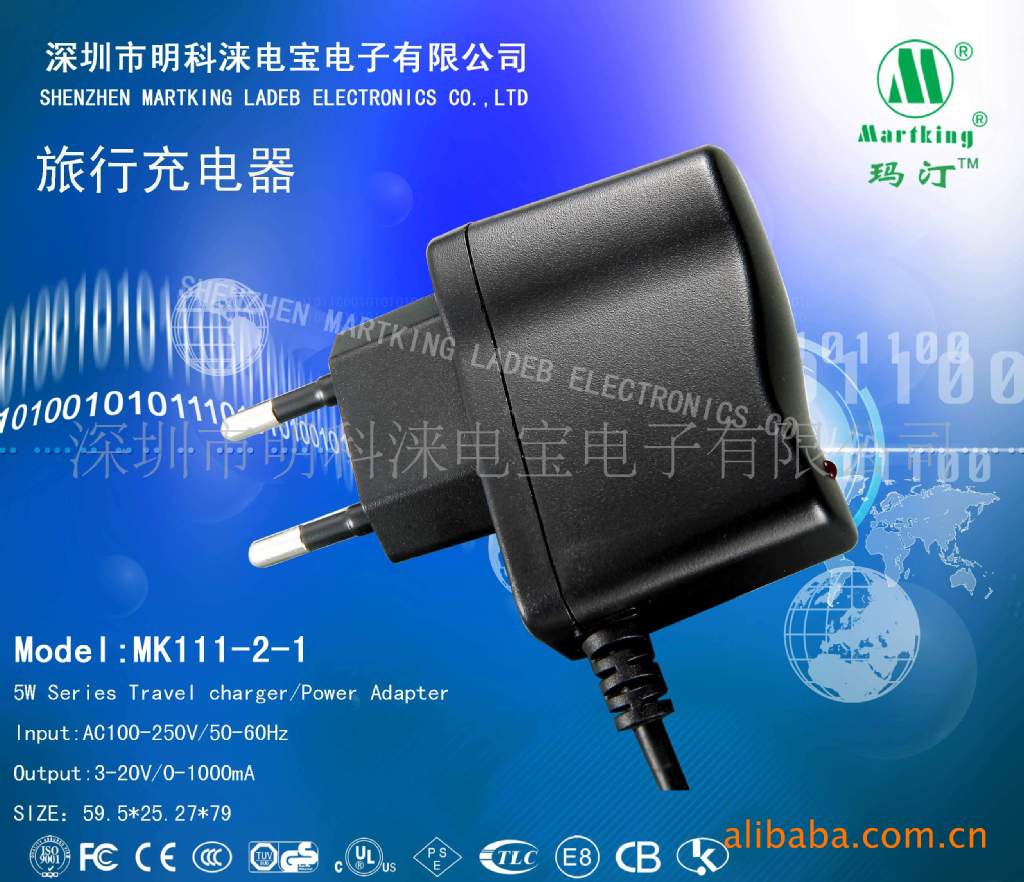

MK111

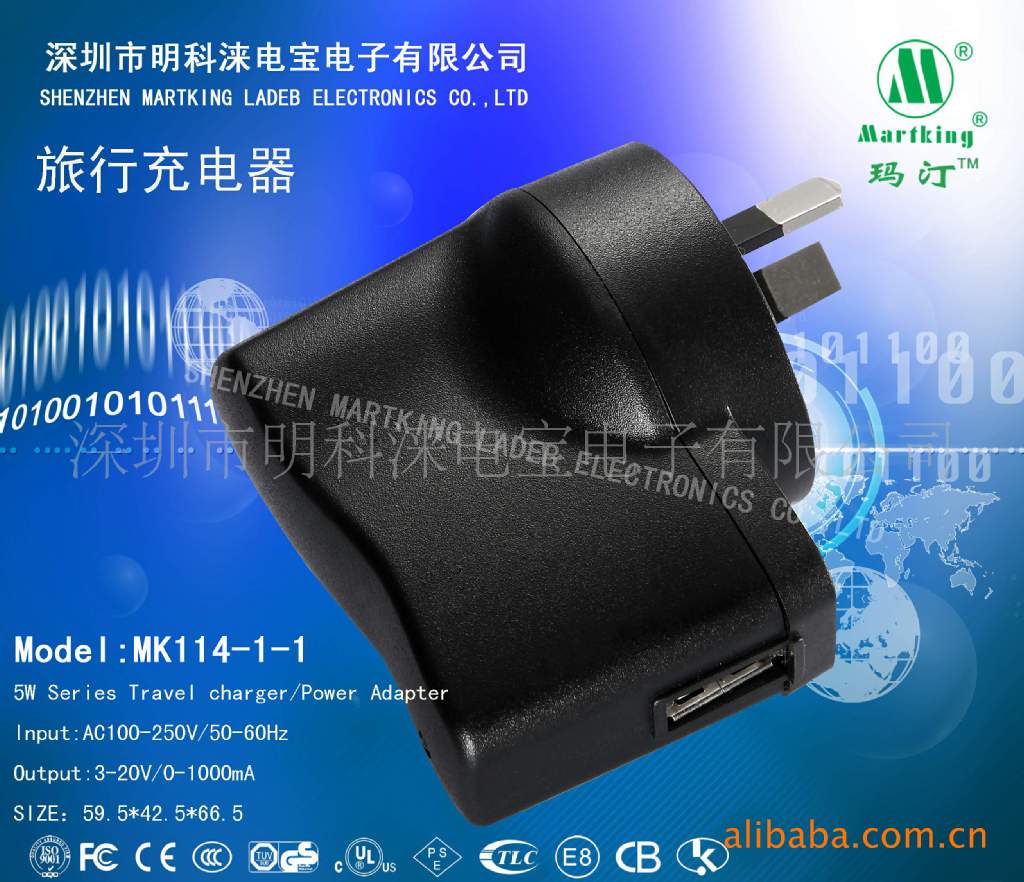

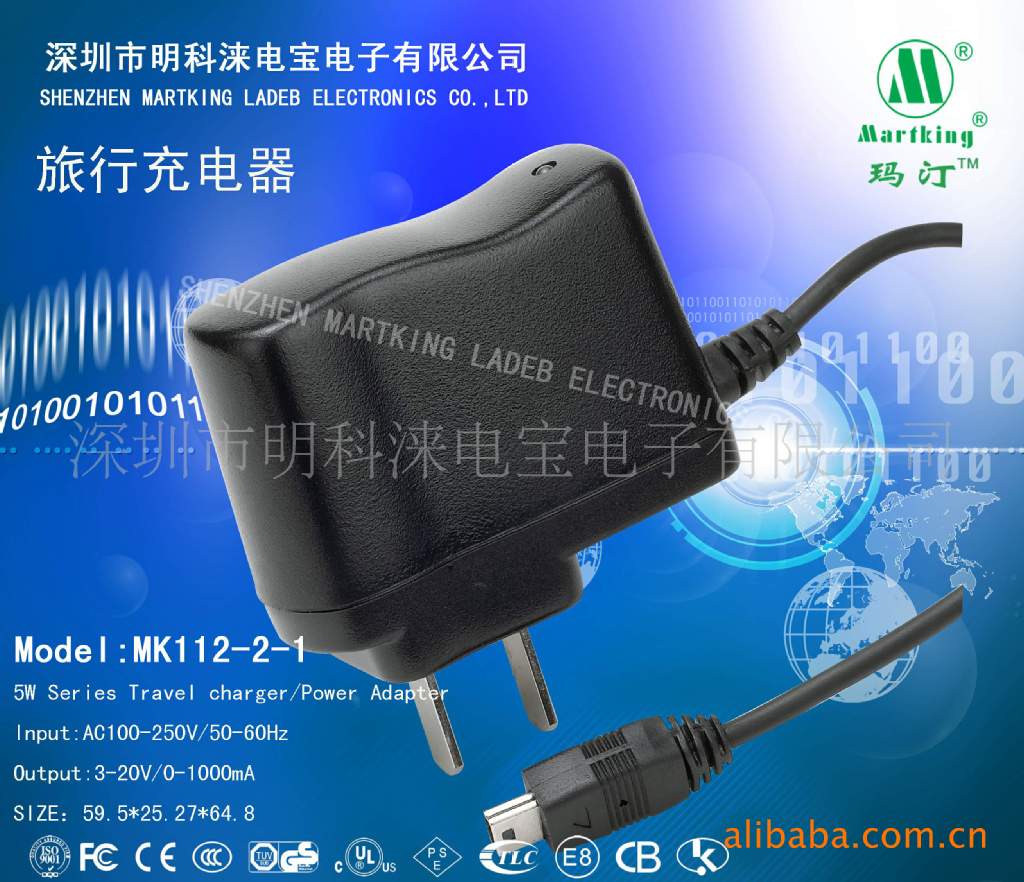

5W Series Travel Charger Switching Adapter(5W系列旅充电源适配器)
Product Characteristics(产品特色)
l With fixed frequency control circuit, it provides with over voltage ,over current , overheat and short circuit protection该系列电源适配器，采用固定频率控制电路，具备限流、限压、过温、短路全功能保护。
l Ultra low no-load/standby power consumption, meet CEC IV green power requirements.
(最低空载及待机功耗均符合CEC IV 绿色环保电源要求)
l Meet all related safety standard. (能够达到所有相关的安全标准)
l Suitable for mobile phone，MP3，MP4，iPod，iPhone，digital camera，gamer，household appliance etc（适用：移动电话，MP3，MP4，iPod，iPhone，数码相机，游戏机，小家电，等等）
Electrical Characteristics（电子特性）
l Input:AC100-250V/50-60Hz，全球通用，
l Output:3.0-20V/0-1000mA
Reliability (可靠性)
l High voltage test(高压测试):3000Vac 60S 5mA max
l Insulation Resistance(绝缘阻抗):7min
l Operating Temperature(工作温度):0--50℃
l Storage Temperature(储藏温度):-40--85℃
l Burn-in test(老化测试):80%--100%
l Safety Approval Standard(符合安规标准):UL/1310/1950/60950
l EMC Standard(EMC标准):EN55022、EN55024/A1
