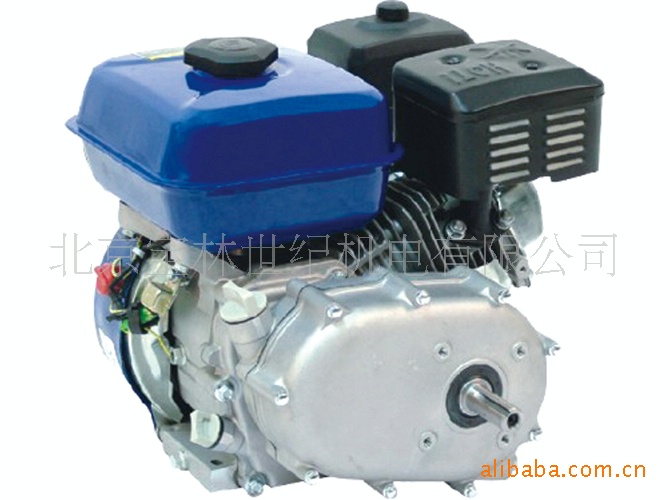

Model: 168F-R/168F-2R (EPA/CARB)

Engine type: 4-stroke 25° inclined single-cylinder with air-cooled

Bore*stroke: 68mm*45mm/68mm*54mm

Displacement: 163ml/196ml

Compression ratio: 8.5:1

Max power output: 4.0kw/1800rpm/4.8kw/1800rpm

Recommded power using: 3.4kw/1800rpm/4.0kw/1800rpm

Max torque: 18N.m/1500rpm/22N.m/1500rpm

Ignition system: Non-contact transistorized ignition(TCI)

Start model: Recoil and hand-operated

Air cleaner: Semi-dry, oil bath type

Fuel tank capaclty: 3.6L

Fuel consumption: 395g/kw.h

Engine oil capacity: 0.6L

Dimension(L*W*H mm): 392*365*335/400*376*335

Dry weight: 21kg/22kg

Carton dimension(L*W*H mm): 455*420*390

QTY/20GP: 478

QTY/40GP: 988

QTY/40HQ: -
