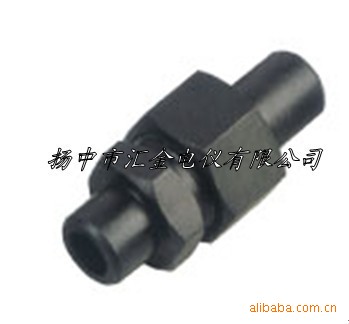

我公司生产的变送器过度接头连接方式分为焊接式和卡套式两种，变送器接头是采用精密数控车床精加工制成，精密度高可与进口产品相比美。
说明 |
本系列产品种类多，规格齐全，欢迎选用 |
性能规范 |
适用介质：油、水、气等非腐蚀性或腐蚀性介质
适用温度：由使用介质和选用垫片而定t≤450C
制造材料：20#,35#,1Cr18Ni9Ti，0Cr18Ni12Mo2Ti,316L
配管要求：φ4～φ50的普通级精度无缝钢管 |
| d | D 0 | d 0 | L | I | S 1 | S 2 | 代号 Code |
| M10×1 | 6 | 3 | 49 | 9 | 14 | 17 | YZG5-1-M10×1-6 |
| M10×1 | 10 | 4 | 55 | 9 | 17 | 19 | YZG5-1-M10×1-10 |
| M14×1.5 | 10 | 6 | 59 | 12 | 19 | 19 | YZG5-1-M14×1.5-10 |
| M14×1.5 | 14 | 8 | 66 | 12 | 24 | 27 | YZG5-1-M14×1.5-14 |
| M18×1.5 | 14 | 10 | 70 | 14 | 27 | 27 | YZG5-1-M18×1.5-14 |
| M18×1.5 | 18 | 10 | 78 | 14 | 30 | 32 | YZG5-1-M18×1.5-18 |
| M22×1.5 | 18 | 12 | 78 | 14 | 32 | 32 | YZG5-1-M22×1.5-18 |
| M22×1.5 | 22 | 12 | 79 | 14 | 32 | 36 | YZG5-1-M22×1.5-22 |
| M27×1.5 | 22 | 15 | 83 | 16 | 36 | 36 | YZG5-1-M27×2-22 |
| M27×1.5 | 28 | 17 | 88 | 16 | 41 | 41 | YZG5-1-M27×2-28 |
| M33×2 | 28 | 20 | 88 | 16 | 41 | 41 | YZG5-1-M33×2-28 |
| M33×2 | 34 | 22 | 95 | 16 | 46 | 50 | YZG5-1-M33×2-34 |
| M42×2 | 34 | 25 | 101 | 18 | 55 | 50 | YZG5-1-M42×2-34 |
| M42×2 | 42 | 28 | 105 | 18 | 55 | 60 | YZG5-1-M42×2-42 |
| M48×2 | 42 | 32 | 107 | 20 | 60 | 60 | YZG5-1-M48×2-42 |
| M48×2 | 50 | 40 | 115 | 20 | 65 | 70 | YZG5-1-M48×2-50 |
| M10×1 | 6 | 3 | 81 | 41 | 14 | 17 | YZG5-1J-M10×1-6 |
| M10×1 | 10 | 4 | 90 | 44 | 17 | 19 | YZG5-1J-M10×1-10 |
| M14×1.5 | 10 | 6 | 94 | 47 | 19 | 19 | YZG5-1J-M14×1.5-10 |
| M14×1.5 | 14 | 8 | 103 | 55 | 24 | 27 | YZG5-1J-M14×1.5-14 |
| M18×1.5 | 14 | 10 | 113 | 57 | 27 | 27 | YZG5-1J-M18×1.5-14 |
| M18×1.5 | 18 | 10 | 121 | 59 | 30 | 32 | YZG5-1J-M18×1.5-18 |
| M22×1.5 | 18 | 12 | 121 | 59 | 32 | 32 | YZG5-1J-M22×1.5-18 |
| M22×1.5 | 22 | 12 | 126 | 60 | 32 | 36 | YZG5-1J-M22×1.5-22 |
| M27×1.5 | 22 | 15 | 130 | 64 | 36 | 36 | YZG5-1J-M27×2-22 |
| M27×1.5 | 28 | 17 | 142 | 70 | 41 | 41 | YZG5-1J-M27×2-28 |
| M33×2 | 28 | 20 | 142 | 70 | 41 | 41 | YZG5-1J-M33×2-28 |
| M33×2 | 34 | 22 | 160 | 81 | 46 | 50 | YZG5-1J-M33×2-34 |
| M42×2 | 34 | 25 | 166 | 83 | 55 | 50 | YZG5-1J-M42×2-34 |
| M42×2 | 42 | 28 | 174 | 90 | 55 | 60 | YZG5-1J-M42×2-42 |
| M48×2 | 42 | 32 | 181 | 92 | 60 | 60 | YZG5-1J-M48×2-42 |
| M48×2 | 50 | 40 | 193 | 98 | 65 | 70 | YZG5-1J-M48×2-50 |
