本公司专业生产云环SAA认证带插头电源线,其主要原材料环保无氧铜丝及PVC.组成,该插头可配置0.75-1.5平方等电源线,尾部可配置防水母插.电脑插.米老鼠插等等。适用于220-380V电压的各种家用电器及设备,同时可根据客户实际需要为其开发设计和另行制作该产品耐寒耐热,室内外皆可,同时可根据客户实际需要为其开发设计和另行制作。
Conductor squarechoiceforPOWER CORFS
导体线径大小选择
电线平方数选择,每平方毫米截面积的铜丝可以通过的最大电流为8安培,所以比如一个产品的功率为2200瓦,电压为220伏,
则电流为2200/220=10A,平方数则为10/8=1.25 可以选择1.5mm2 适宜。
1mm2 the max current 8 Ampere
0.5mm2 8*0.5=4A
If Power is n Watt, voltage is x V,
So the current is n/x
Square choice=(n/x)/8
For USA美国线号和平方转换
20AWG 0.517mm2
18AWG 0.823mm2
16AWG 1.31mm2
14AWG 2.08mm2
12AWG 3.31mm2
10AWG 5.26mm2
Packing instructions for power cords包装说明
可根据客户要求包装,原则上每箱子的重量不超过20千克,正常包装50-100根每箱
重量大于12千克小于20千克,可吸塑包装,可贴便签,可根据要求彩盒包装,木托盘等。
No.1 according to client's inquiry, on principle the weight/per ctn<20kgs
No.2 normal 50-100pcs/ctn 12kgs<weight<20kgs,according to the length and weight
No.3 blister packing size according to the length of cord,stick can be available
No4. Color box can be available
No.5 wood pallet
No.6 others
Production delivery time:交货期
正常5000-200000 10-20天
Normal 15-20days for 5k-200k
Samples for power cords样品
常规样品2-5天,特殊打样根据要求安排时间。
Common product 2-5days free for 2-5pcs
If custom made, according to the fact
New mold ,Mold cost borne by customers
OurLaboratoryroomand Workshops &Equipments
实验室和厂房设备

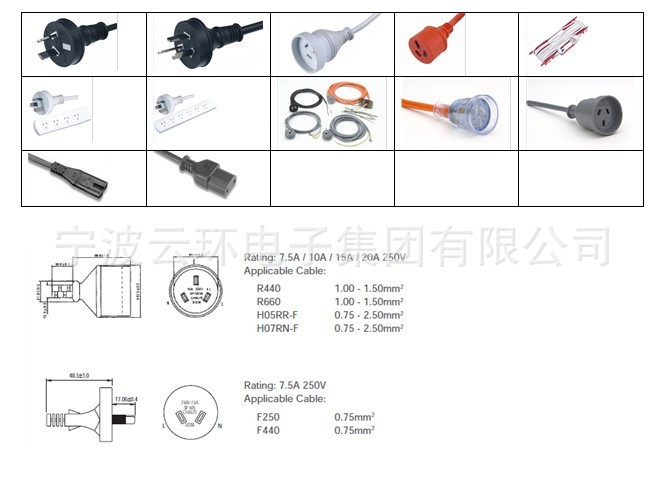

Australia/NZ power cords
澳大利亚电源线标准

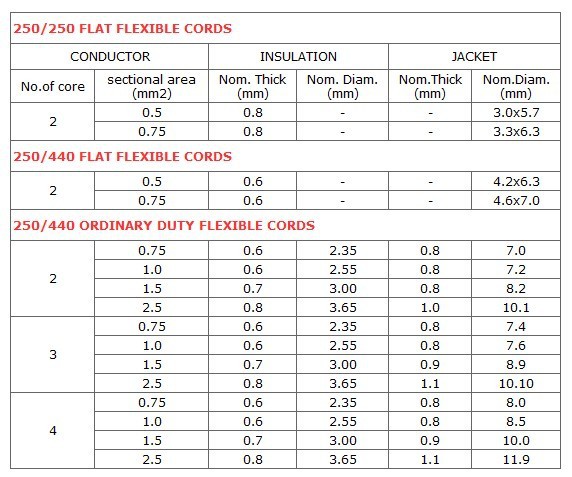

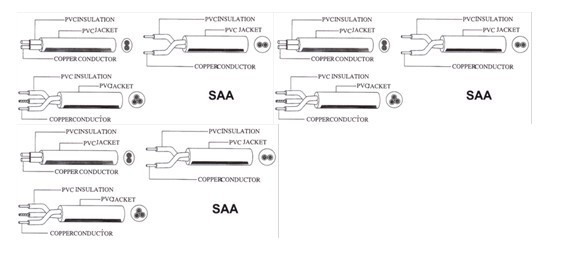

standardsand technical information




60320 IEC connector
尾部连接器选择
Strain reliefs
线卡部分展示
terminalforpower cords
尾部端子展示
