供应UL认证美式电源线，其主要原材料环保无氧铜丝及PVC组成，适用于110-120V电压的各种家用电器及设备，该产品耐寒耐热室内外皆可，同时可供应各种美标系列带插头电源线及可根据客户具体要求为其设计开发和另行制作。
United states/Canada
美国加拿大电源线标准

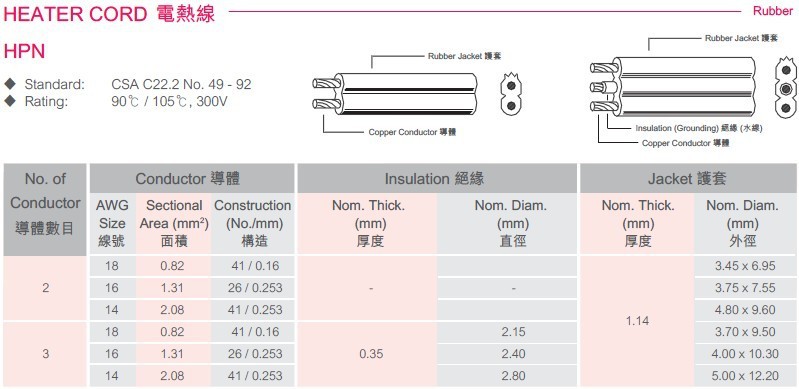

HEATER CORD電熱線
BRAIDED HEATER CORD編織電熱線Rubber
RUBBER CABLE橡膠線
NON-OIL-RESISTANT HARD-SERVICE CORD
非耐油重載供電用軟線
#14,16,18, SJ-------Rubber
OIL-RESISTANT HARD-SERVICE CORD
耐油重載供電用軟線
SJO / SJOW / SJOO / SJOOW---Rubber
◆ Standard: UL 62
◆ Rating: 60℃ / 75℃ / 90℃ / 105℃, 300V
SJT / SJTW / SJTO / SJTOW---PVC
SJE* / SJEO* / SJEOO * / SJEOW* / SJEOOW * Non-Halogen Materials 无卤
FLEXIBLE POWER CORD電源軟線
SRDT----PVC
FLEXIBLE POWER CORD電源軟線
SVE* / SVEO * / SVEOO*Non-Halogen Materials
SVT / SVTO / SVTOO----PVC
◆ Standard: UL 62 / C22.2 No. 49
◆ Rating: 60℃ / 105℃, 300V
◆ Application:用途：
Power Supply Cord for Vacuum真空吸塵機及列印機用電源線
Cleaners, Printers
ST / STW / STO / STOW----PVC
FLEXIBLE POWER CORD電源线
SPT-1 / SPT-1W---PVC
Same as SPT-1 but Heavier Construction與SPT-1相同但功率較大
◆ Application:用途:
◆ Straight or Coiled:直或曲線
◆ 3-Wire with Green Grounding Conductor 3線其中一條綠色地線導體
◆ Rating: 60℃ / 105℃, 300V
◆ Standard: UL 62 / C22.2 No. 49
SPT-3--PVC
PVC INSULATED WIRE塑膠絕緣線
UL 1015 / CSA TEW--PVC
United states/Canada plug
美国加拿大插头
Computer power cords 电脑电源线
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Extension cords 延长线
|
|
|
|
|
|
|
|
|
|
Heavy duty power cords
|
|
|
|
|
|
|
| ||
|
|
|
Conductor squarechoiceforPOWER CORFS
导体线径大小选择
电线平方数选择，每平方毫米截面积的铜丝可以通过的最大电流为8安培，所以比如一个产品的功率为2200瓦，电压为220伏，
则电流为2200/220=10A，平方数则为10/8=1.25 可以选择1.5mm2 适宜。
1mm2 the max current 8 Ampere
0.5mm2 8*0.5=4A
If Power is n Watt, voltage is x V,
So the current is n/x
Square choice=(n/x)/8
For USA美国线号和平方转换
20AWG 0.517mm2
18AWG 0.823mm2
16AWG 1.31mm2
14AWG 2.08mm2
12AWG 3.31mm2
10AWG 5.26mm2
Packing instructions for power cords包装说明
可根据客户要求包装，原则上每箱子的重量不超过20千克，正常包装50-100根每箱
重量大于12千克小于20千克，可吸塑包装，可贴便签，可根据要求彩盒包装，木托盘等。
No.1 according to client's inquiry, on principle the weight/per ctn<20kgs
No.2 normal 50-100pcs/ctn 12kgs<weight<20kgs,according to the length and weight
No.3 blister packing size according to the length of cord,stick can be available
No4. Color box can be available
No.5 wood pallet
No.6 others
Production delivery time:交货期
正常5000-200000 10-20天
Normal 15-20days for 5k-200k
Samples for power cords样品
常规样品2-5天，特殊打样根据要求安排时间。
Common product 2-5days free for 2-5pcs
If custom made, according to the fact
New mold ,Mold cost borne by customers
OurLaboratoryroomand Workshops &Equipments
实验室和厂房设备
60320 IEC connector
尾部连接器选择
|
|
|
|
|
C19 |
|
|
Strain reliefs
线卡部分展示
|
|
|
|
|
|
terminalforpower cords
尾部端子展示
