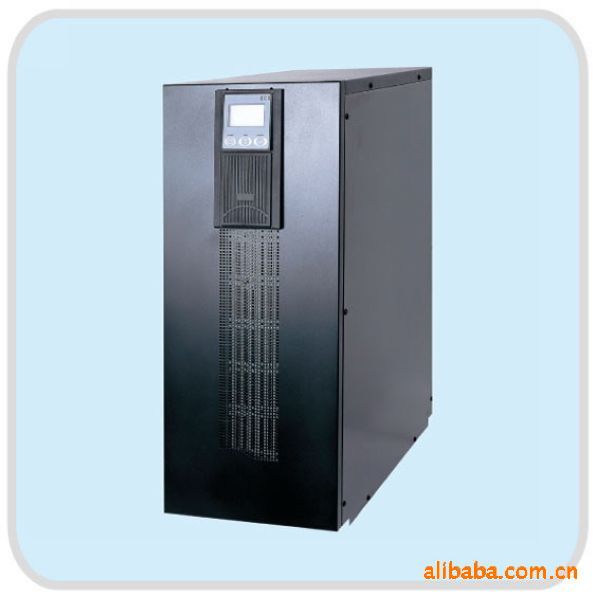

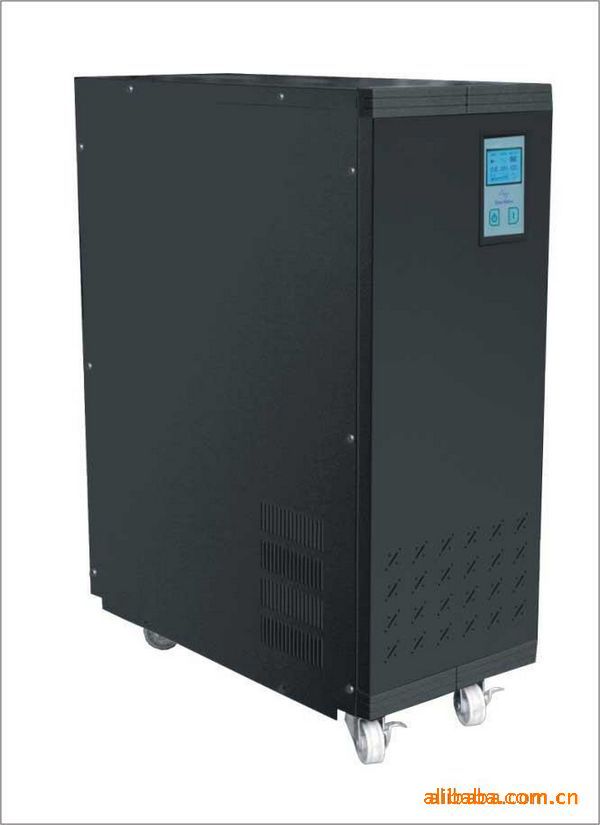

BU2K～20K（Single in and single out）

Mode:

BU2K

BU3K

BU6K

BU10K

BU15K

BU20K

Capacitg(KW)

2KVA/1.6

3KVA/2.4

6KVA/4.8

10KVA/8

15KVA/12

20KVA/16

Voltage

Single phase with two Lines+ground wire,220V±25%

Noise

≤52dB(distance 1m)

≤60dB(distance 1m)

Size:

530×264×592

630×343×700

(W×D×Hmm)

Weight(Kg)

40

45

80

145

160

180

(excludingthebattery)

SP6K～60K（Three- ins and single out）

Mode:

BP6K

BP10K

BP15K

 BP20K

BP30K

BP40K

BP50K

BP60K

Capacitg(KW)

6KVA/4.8

10KVA/8

15KVA/12

20KVA/16

30KVA/24

40KVA/32

50KVA/40

60KVA/48

Voltage

Three phase with four Lines+ground wire,380V±25%

Noise

≤60dB(distance 1m)

≤65dB(distance 1m)

Size:

620×343×995

650×700×1510

(W×D×Hmm)

Weight(Kg)

130

165

180

220

400

450

530

620

(excludingthebattery)

Common parameters

Input

Frequency

50Hz /60Hz ± 10%

Power actor

≥92%

Output

Voltage

{0>

110V± 0.5%<}0{><0}

Voltage regulation

Stable voltage±1%，dynamic oltage±2%，（0-100% load

fluctuation20ms）

Frequency stableness

50Hz /60Hz ± 0.5%

Frequency torsion rate

Less than 1Hz / second

Instant load status

± 0.4%(100% instant load fluctuation)

Harmonic distortion

For linear load, less than 3%(full load)，total rectifying

harmonics islass than 5%

Overload capacitance

150%

Wave form

Sine wave

efficiency

Input AC to output AC

Above 90%

Transfer time

Mains power supply fails or restores

0 second

Turns from UPS to BYPASS

Less than 4 ms

Battery

DC Voltage

192V

Charging time

After it is fully charged, it can be filled to 90% of the total

capacity after it is charged for 8 hours.

Warning sound

Batterydischarge

If the main power fails, it buzzes once every 4 seconds.

If the battery is low, it buzzes once every 0.5 seconds.

If the battery stops discharging, it buzzes continuously.

In fault tatus

Continuously buzzes

Battery

Automatically shuts down the machine when the battery power is

low, it has no fuse switch protection.

Internal

Protecting

Overload

After the overload (110～150%) lasts for 10 seconds,it automaticallyjumps

to BYPASS. It can automatically restore normal state.

device

LCD

Temperature is too high

If the internal temperature of the UPS>85°C, it will

automatically jump to BYPASS.

panel

Output short circuit

Limits Current, automatically shuts down the machine, without

fuse switch protection.

UPS is abnormal

Automatically jumps to BYPASS mode and starts direct mains power supply.

Noise Filter<0}

10~10KHz at 40 db; 100KHz~100MHz at 70 db

LCD display

Indicating input and output voltage, frequency; battery voltage and output

power (%);Temperature

BatteryBVL

One LED, it glows when the battery voltage is low.

Outside environment

Temperature

0~40℃

Relative humidity

10%~90% (No condensation)

Operation condition

Lower than 1500 meters above sea level (altitude)
