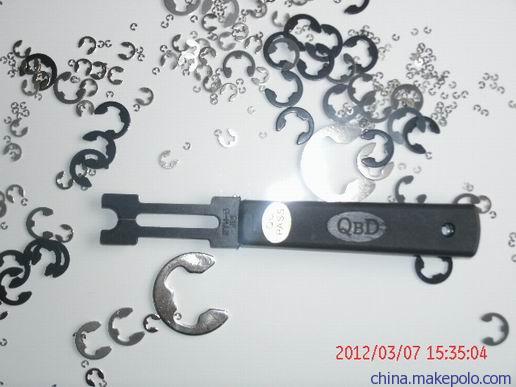

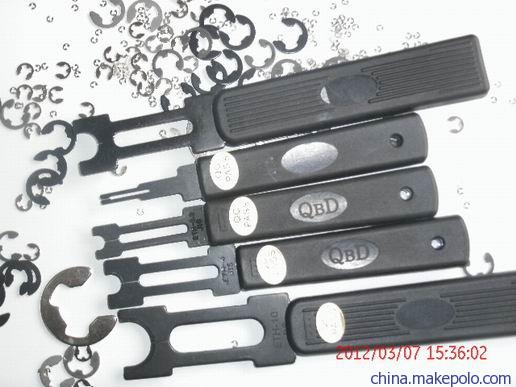

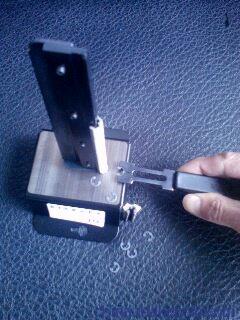

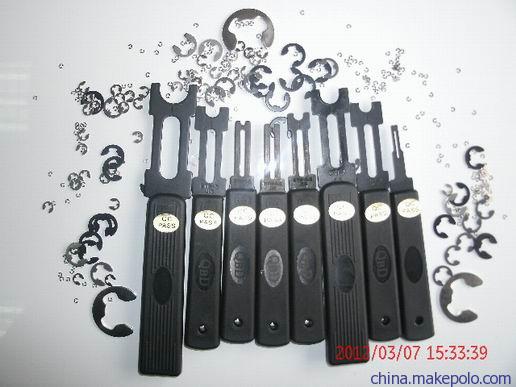

一种新型的日本进口E型卡环钳,适合复印机、打印机、马达电机、数码电子产品安装轴用E型卡环、E令、介子、E型卡簧、挡圈时方便快捷。独特的燕尾槽设计能够牢牢卡住卡簧,避免在安装时卡簧弹飞和划伤工件以及损坏卡簧。特殊的弹簧钢经过淬火等数道工艺处理,坚固耐磨有弹性。大大提高生产效率,降低成本,改善劳动强度。深圳市智润达科技有限公司代理日标,欧标,美标产品及非标定制.
深圳市智润达科技有限公司坐落于美丽的滨海城市---深圳市,日本卡环钳第一金牌代理商.
本公司自2008年成立以来,致力于日本进口卡环叉、卡环钳、卡簧钳、挡圈钳、e型介子叉、e型发卡刀的销售。

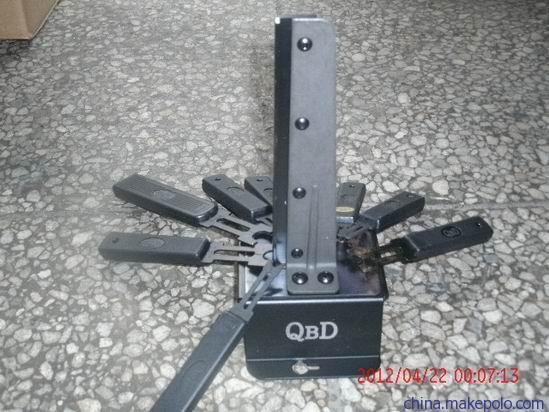

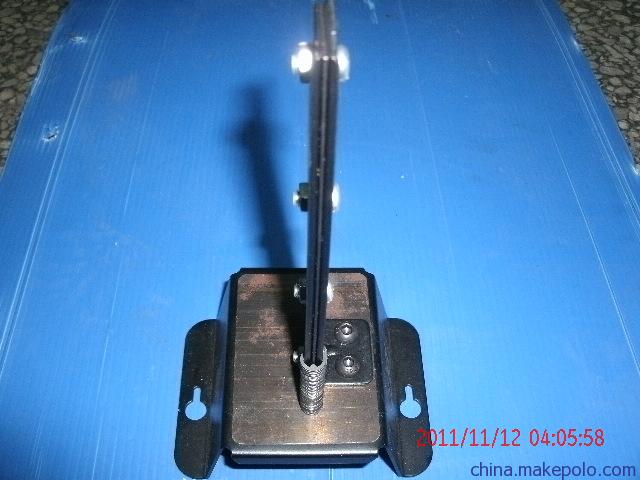

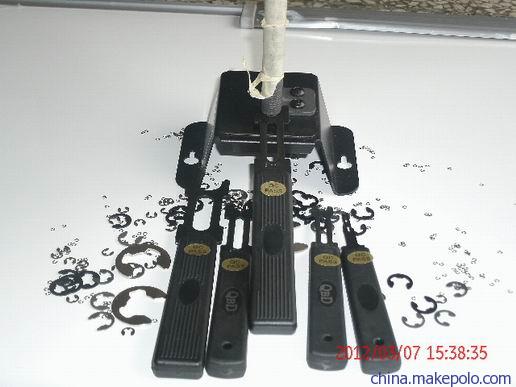

卡簧内径 | 卡簧外径 | 卡簧厚度 | 对应卡簧叉型号 | 对应卡簧座型号 |
0.6 | 1.5 | 0.2 | ETH-0.6 | ETSK-00 |
0.7 | 2 | 0.2 | ETH-0.7 | ETSK-00 |
0.8 | 2 | 0.2 | ETH-0.8 | ETSK-00 |
1.0 | 2.8 | 0.2 | ETH-1 | ETSK-1 |
1.2 | 3 | 0.3 | ETH-1.2 | ETSK-1.2 |
1.5 | 4 | 0.4 | ETH-1.5 | ETSK-1.5 |
1.9 | 4.5 | 0.4 | ETH-1.9 | ETSK-1.9 |
2 | 5 | 0.4 | ETH-2 | ETSK-2 |
2.3 | 6 | 0.4 | ETH-2.5 | ETSK-2.5 |
2.3 | 6 | 0.6 | ETH-2.3(D) | ETSK-2.3(D) |
2.5 | 6 | 0.4 | ETH-2.5 | ETSK-2.5 |
3 | 7 | 0.6 | ETH-3 | ETSK-3 |
3.2 | 7 | 0.6 | ETH-3 | ETSK-3 |
4 | 9 | 0.6 | ETH-4 | ETSK-4 |
4 | 9 | 0.7 | ETH-4 | ETSK-4 |
5 | 11 | 0.6 | ETH-5 | ETSK-5 |
5 | 11 | 0.7 | ETH-5 | ETSK-5 |
6 | 12 | 0.8 | ETH-6 | ETSK-6 |
6 | 12 | 0.7 | ETH-6 | ETSK-6 |
7 | 14 | 0.8 | ETH-7 | ETSK-7 |
7 | 14 | 0.9 | ETH-7 | ETSK-7 |
8 | 16 | 0.8 | ETH-8 | ETSK-8 |
8 | 16 | 1 | ETH-8 | ETSK-8 |
9 | 18.5 | 1 | ETH-9 | ETSK-9 |
10 | 20 | 1 | ETH-10 | ETSK-10 |
10 | 20 | 1.2 | ETH-10 | ETSK-10 |
12 | 23 | 1 | ETH-12 | ETSK-12 |
