General Specifictions(详细说明):
Step Accuracy…………………………………………………………±5%
Temperature Rise………………………………………………80°CMax
Ambient temperature Range………………………………-20°C—+50°C
Insulation Resistance………………………………100MΩMin.500VC DC
Dielectric Strength………………………………………500V AC 1 minute
Electrical Specifications(技术数据):
型号 Series Model | 步距角 Step Angle (°) | 机身长 Motor Length (mm) | 电流 Rated Current (A) | 电阻 Phase Resistance (Ω) | 电感 Phase Inductance (mH) | 静力矩 Holding Torque (Kg.cm) | 定位力矩 Detent Torque (g.cm) | 转动惯量 Rotor Inertia (g.cm²) | 引线数 Lead Wire (NO.) | 重量 Motor Weight (g) |
39BYGB113 | 1.8 | 20 | 0.5 | 13 | 6.4 | 0.7 | 50 | 12 | 4 | 100 |
39BYGB210 | 1.8 | 26 | 0.6 | 10 | 10 | 1.5 | 80 | 14 | 4 | 140 |
39BYGB405 | 1.8 | 34 | 0.6 | 12 | 15 | 2.2 | 100 | 19 | 4 | 160 |
39BYGB440 | 1.8 | 34 | 0.3 | 40 | 20 | 1.3 | 100 | 19 | 6 | 160 |
39BYGB504 | 1.8 | 38 | 1.2 | 3.8 | 6.0 | 2.7 | 120 | 24 | 4 | 240 |
39BYGB530 | 1.8 | 38 | 0.4 | 30 | 22 | 1.8 | 120 | 24 | 4 | 240 |
*以上仅为代表性产品，派生产品可根据客户要求制作！

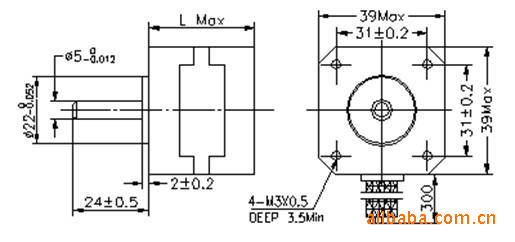

Dimensions(外形图): unit=mm

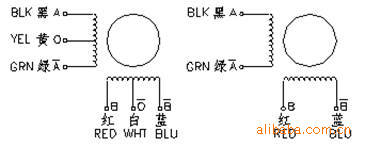

Wiring Diagram(接线图):
UNI-POLAR(6 LEADS) BI-POLAR(4LEADS)
