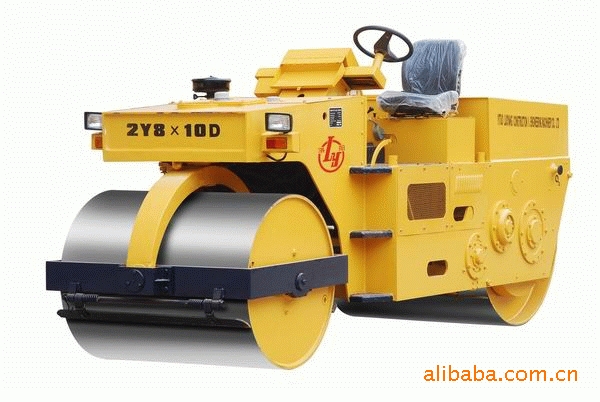

两轮静碾压路机2Y8X10D(8-10Ton)D:康明斯
Static Roller2Y6X8B(8-10Ton)
The driving wheel is of frame model, with low center of gravity and good stability; The front part of the system is narrow, with good view of steering; Dual chairs, dual steering wheels and good side compacting effect; The system is provided with a water spraying device, and the front and the rear wheels are evenly sprayed. Hydraulic controlled power steering. Hydraulic break system.
主要特点：
▲转向轮为框架式，重心低，稳定性好
▲机身前端狭窄，转向视野好。
Main features:
▲Steering roll installed on rectangular frame with low center of gravity and high stability.
▲Front of fuselage is narrow, with excellent steering visibility.
主要技术参数Technical specifications:
型号 | Model | 2Y8X10D |
工作质量（kg） | 不加载 | Operating mass | Without ballast | 8000 |
| 加载 | | With ballast | 10000 |
前轮分配质量（kg） | | Front axle load | | 3800 |
后轮分配质量（kg） | | Rear axle load | | 6200 |
前轮线载荷 (N/cm) | 不加载 | Front linear load | Without ballast | 230 |
加载 | | With ballast | 310 |
后轮线载荷(N/cm) | 不加载 | Rear linear load | Without ballast | 410 |
加载 | | With ballast | 500 |
行走速度(km/h) | 一速 | Travel speeds | 1st gear | 2.0 |
| 二速 | | 2nd gear | 4.0 |
爬坡能力（%） | | Grade ability | | 20 |
转弯半径(mm) | 内侧 | Turning radius | Inside | 5230 |
| 外侧 | | Outside | 6500 |
总长(mm) | | Overall length | 4500 |
总宽(mm) | | Overall width | 1580 |
总高(mm) | | Overall height | 2660 |
前轮尺寸(mm) | | Front wheel size | 1270 |
| 宽度 | | Width | 1020 |
后轮尺寸(mm) | 直径 | Rear wheel size | Diameter | 1270 |
| 宽度 | | Width | 1320 |
轴距(mm) | 直径 | Wheel base | Diameter | 3150 |
最小离地间隙(mm) | Ground clearance | 320 |
柴油机型号 | Engine model | 495AY/4BT3.9-C80 |
柴油机功率(kW) | Diesel power | 36.75/60 |
柴油机转速(r/min) | Diesel speed | 2000 |
燃油箱容量(L) | Fuel tank capacity | 150 |
电气电压(V) | Electrical voltage | 12/24 |
液压油箱容量(L) | Hydraulic tank capacity | 50 |
| | | | | | |
