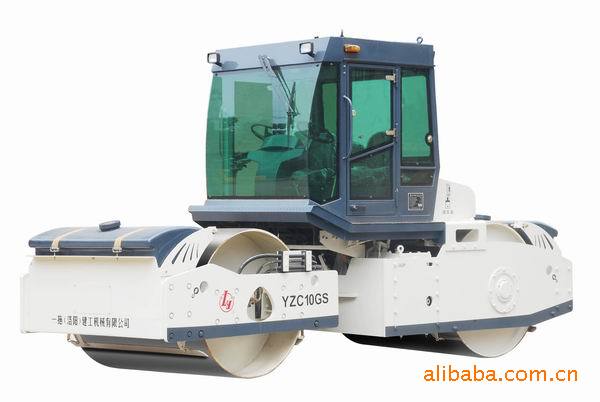

YZC10GS Tandem Vibratory Roller (10Ton)
YZC10GS双钢轮振动压路机（10吨）
YZC10GS双钢轮串联振动压路机是我公司自行研制的机械驱动液压振动压路机。该机具有发动机动力性能好、排放低、功率储备大，碾压轮宽、作业效率高，新颖别致等许多优点。适于压实非粘性土壤、沙石混合料及各种沥青混凝土等。
YZC10GS is driven by machinery, vibrated by hydraulic, it is manufactured by the international advanced technology and its parts is used some of internal abroad high quality components.
The machine is heavy duty tandem vibratory roller, it is suitable for asphalt concrete, sand stone mixtures and dry cement concrete, so is general compaction equipments for highway, municipal road, parking area and industry ground etc. Mechanical travel drive, hydraulic vibration and steering with optimal function/worth ratio and reliable performance.
Spacious and comfortable cab with dual operator seats and dual steering wheels. The engine is Dongfeng Cummins diesel engine, and it is an environment-production, and low fuel consumption. Additionally, with cold start feature.
工作质量(Operating mass) | 10000kg |
激振力(Inspire force) | 90kN |
振动频率（Vibration frequency） | 50Hz |
振幅(Vibration amplitude) | 0.35mm |
行走速度(Travel speed) | 2.5km/h 5.5km/h 8km/h |
爬坡能力(Grade ability) | 20% |
外形尺寸(Dimension) | 5390×2060×2980mm |
发动机型号(Engine model) | 4BT3.9-C80 |
发动机功率（Engine power） | 60kW |
最小转弯半径(Min steering radius) | ＜7000mm |
振动轮宽度(Drum width) | 1700mm |
最小离地间隙（Min clearance） | 310mm |
洒水箱容量(Sprinkler tank capacity) | 280L+280L |
