| 产品型号：GT503WD15BGF40 产品描述：5050三晶正白 | |||||||
| 相关参数： | |||||||
| 光通量：12-15LM | 光强：4000-5000mcd | ||||||
| 电压：3.0-3.2V | 色温：2700-3200K、6000-7000K，也可看样板定做！ | ||||||
| 显色指数：73-75 | |||||||
| 1000H常温下光衰：<4% |
| ||||||
Recommended storage environment
Temperature: 5oC ~ 30oC (41oF ~ 86oF)
Humidity: 60% RH Max.
Use within 2 days after opening of sealed vapor/ESD barrier bags.
If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions.
Baking treatment : 70±5℃for 24 hours.
Fold the opened bag firmly and keep in dry environment.
Soldering
| |||||||||||||||||||||||||||||||||||||||||||||
*After reflow soldering rapid cooling should be avoided.
[Temperature-profile (Surface of circuit board)]
Use the conditions shown to the under figure.
＜1 : Lead Solder＞ ＜2 : Lead-free Solder＞
|
[ Recommended soldering pad design ]
Use the following conditions shown in the figure.
Handling of Silicone Resin LEDs |
Handling Indications |
During processing, mechanical stress on the surface should be minimized as much as possible. Sharp objects of all types should not be used to pierce the sealing compound |
|
Figure 1 |
In general, LEDs should only be handled from the side. By the way, this also applies to LEDs without a silicone sealant, since the surface can also become scratched. |
|
Figure 2 |
When populating boards in SMT production, there are basically no restrictions regarding the form of the pick and place nozzle, except that mechanical pressure on the surface of the resin must be prevented. This is assured by choosing a pick and place nozzle which is larger than the LED’s reflector area. |
Dimensions for Tape
Dimensions for Reel
|
Notes:
1.All dimensions are in mm, tolerance is±2.0mm unless otherwise noted.
2.Specifications are subject to change without notice.
Packing
Notes:
1.All dimensions are in mm, tolerance is±2.0mm unless otherwise noted.
2.Specifications are subject to change without notice.

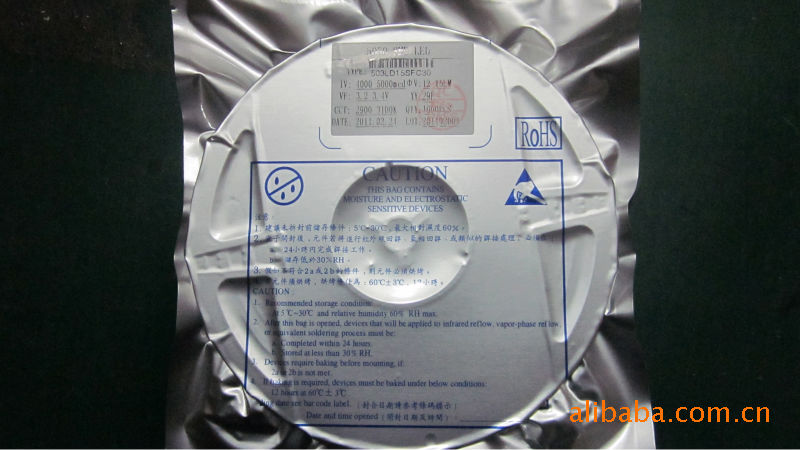

请认准我们的标签和包装方式（5050一包一K）
包装前
除湿箱
生产车间
分光编带机
ASM自动焊线机
仓库！

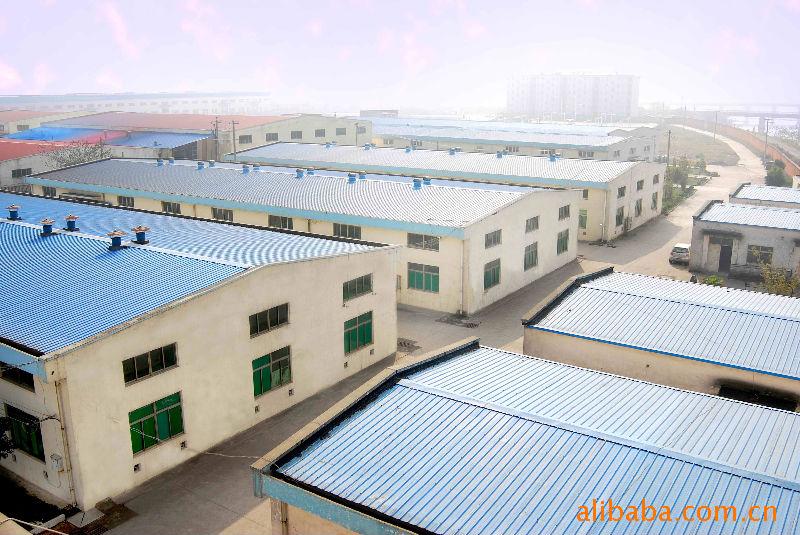

贴片SMD3014 3020 3528 3535 5050 3014专业生产供应商，三家工厂为您服务，专为灯条，模组，灯具厂家研发低成本高质量的灯珠！专业十年品质。完全不用担忧货源找不到，质量找不好，价格谈不拢的问题。你的选择您的满意。欢迎来电咨询与免费索样 ！附深圳分厂（高拓光电）贴片生产车间供参考，盗图必究！
