铁硅铝磁环JCCS050-90

基本参数
Serial/Model NO.: CCS050-90
AL(nH/N2): 40
Perm(μ): 90
Bare Core OD(mm/inch): 12.70/0.500
Bare Core ID(mm/inch): 7.62/0.300
Bare Core HT(mm/inch): 4.75/0.187
Coated Core OD(mm/inch): 13.46/0.530
Coated Core ID(mm/inch): 6.99/0.275
Coated Core HT(mm/inch): 5.51/0.217
Magnetic Material: FeSiAl
CoreLoss: Medium
DCBias: Good
Curie Temp.: 600
Flux Density(G): 10000

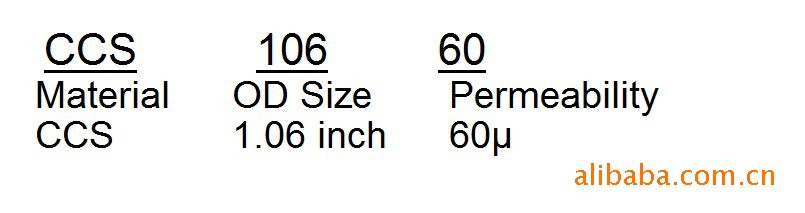

料号结构图

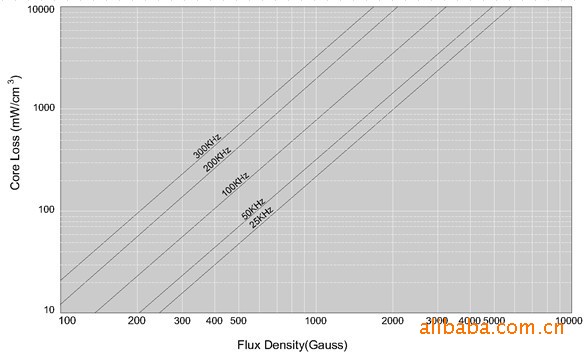

磁芯损耗图

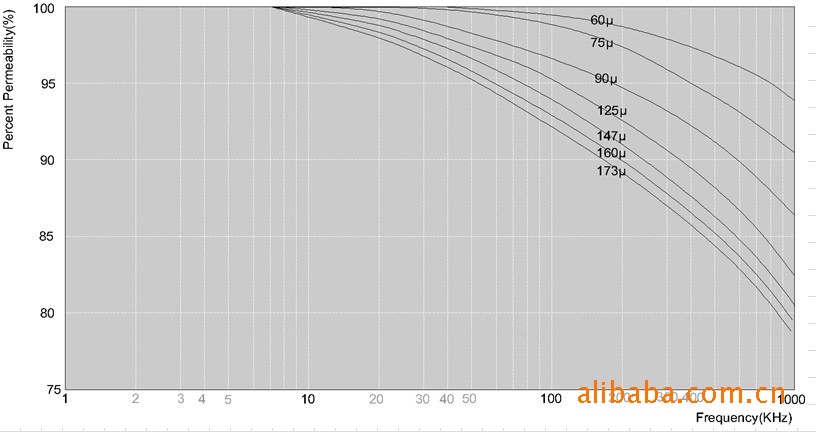

磁导率-频率曲线

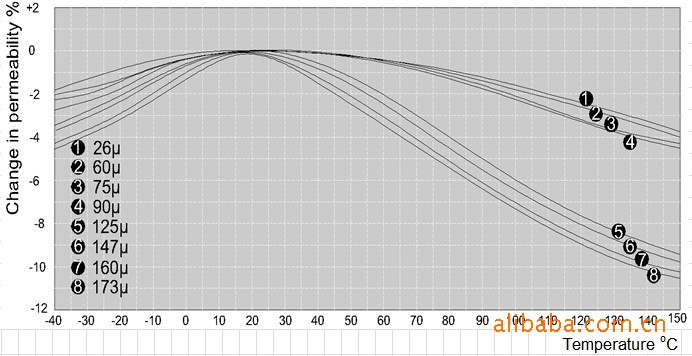

磁导率-温度曲线
