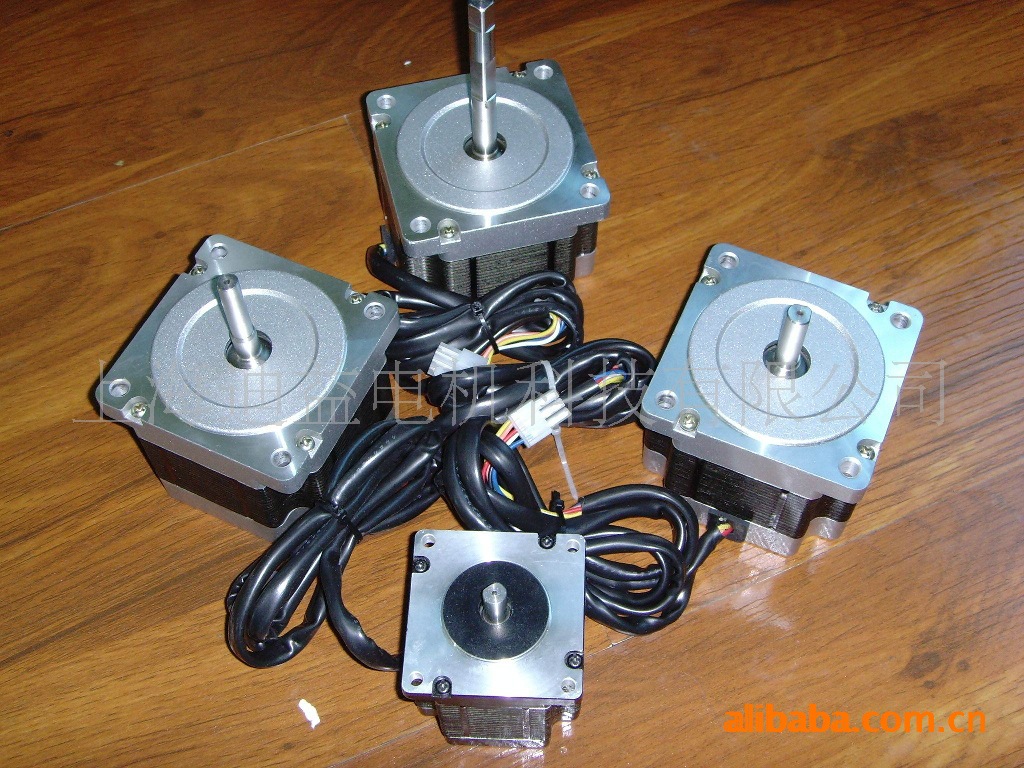

| 60BYGH系列混合式步进电机 | | |
| 一、特征 Specifications： | | | | | | | | | |
| Step Accuracy………………………………………………… ±5% | | | | | | |
| Temperature Rise…………………………………………80℃ Max | | | | | | |
| Ambient Temperature Range…………………………-20℃~+50℃ | | | | | | |
| Insulation Resistance………………………100MΩMin.500VC DC | | | | | | |
| Dielectric Strength………………………………500V AC 1 minute | | | | | | |
| 二、技术数据（Electrical Specifications): | | | | | | | | |
| 电机型号 | 步矩角 | 机身长 | 相电压 | 相电流 | 相电阻 | 相电感 | 静转矩 | 引线数 | 转动惯量 | 重量 | |
| Model | Step angle | Motor Length | Rated voltage | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire | Rotor Inertia | Motor weight | |
| (º) | L(mm) | (V) | (A) | (Ω) | (mH) | (N.m) | (NO.) | (kg.cm²) | (kg) | |
| 60BYGH401 | 1.8 | 67 | 4.7 | 2 | 2.4 | 1.6 | 1.5 | 4 | 570 | 1.2 | |
| 60BYGH162 | 1.8 | 56 | 1.6 | 2 | 0.5 | 3 | 1.2 | 6 | 300 | 0.77 | |
| 60BYGH863 | 1.8 | 87 | 5.6 | 2.1 | 2.8 | 6 | 1.81 | 6 | 840 | 1.34 | |
| 60BYGH802 | 1.8 | 87 | 2 | 3.9 | 0.8 | 3.5 | 2.5 | 4 | 840 | 1.34 | |
| 60BYGH862 | 1.8 | 87 | 4.2 | 3 | 1.45 | 4.3 | 2.1 | 6 | 840 | 1.34 | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| 三、外型图(Mechanical Dimensions) | | | | | 四、接线图(Wiring diagram): |
| Pict Pict | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
| | | | | | | | | | | | |
