Description

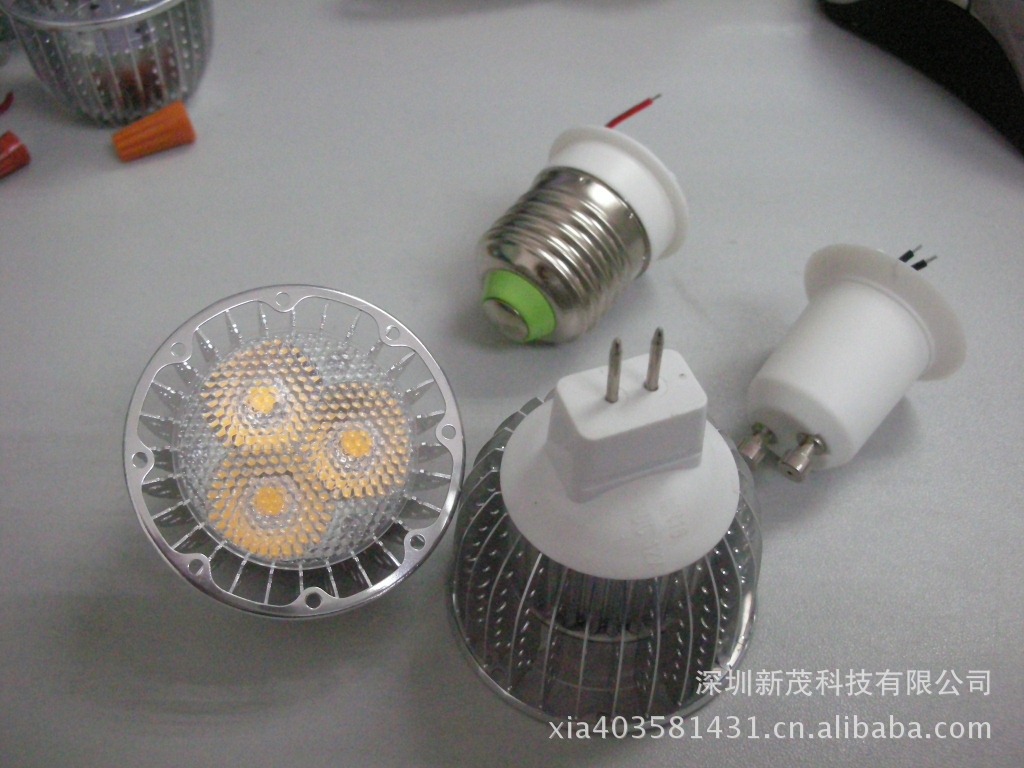

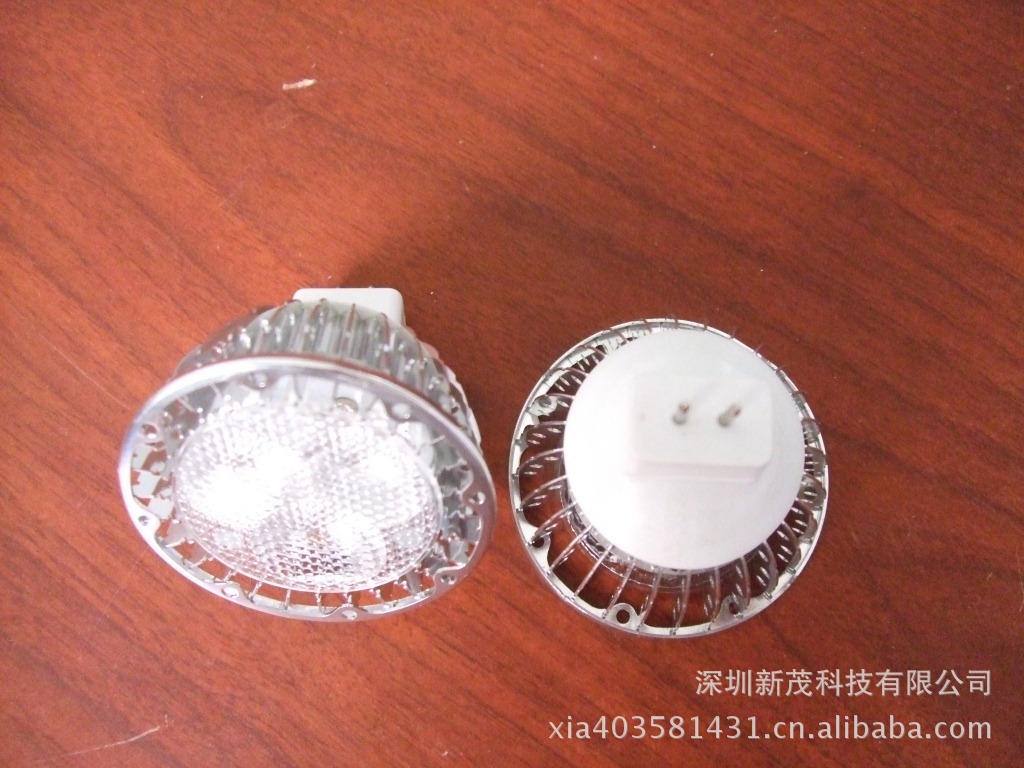

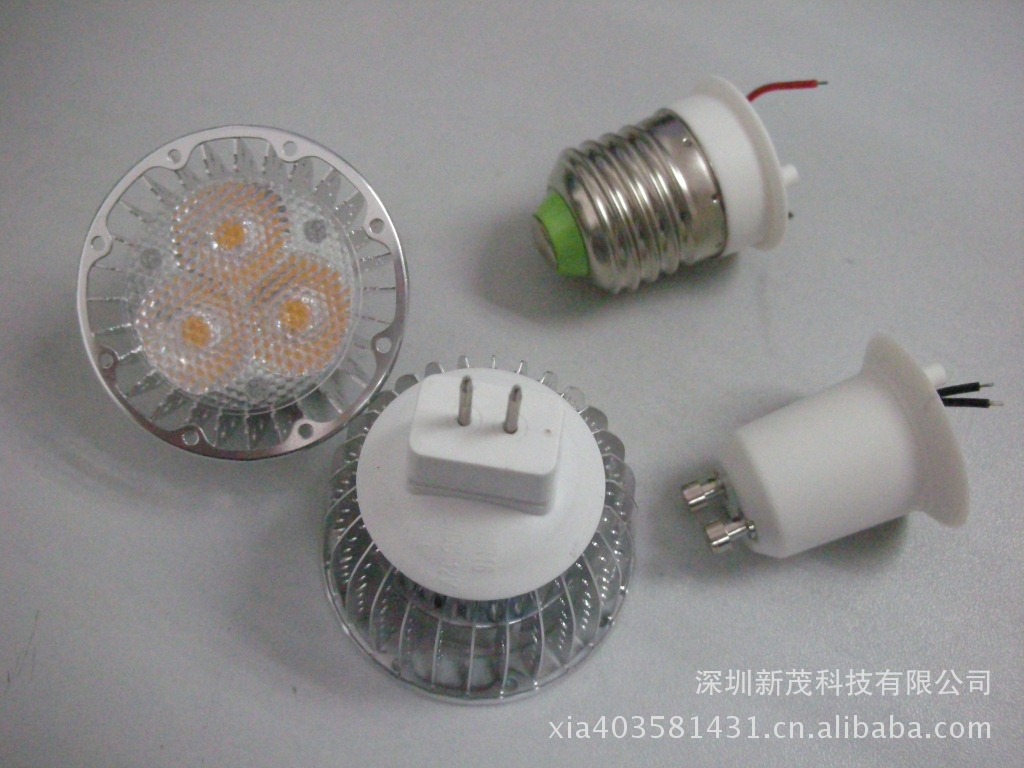

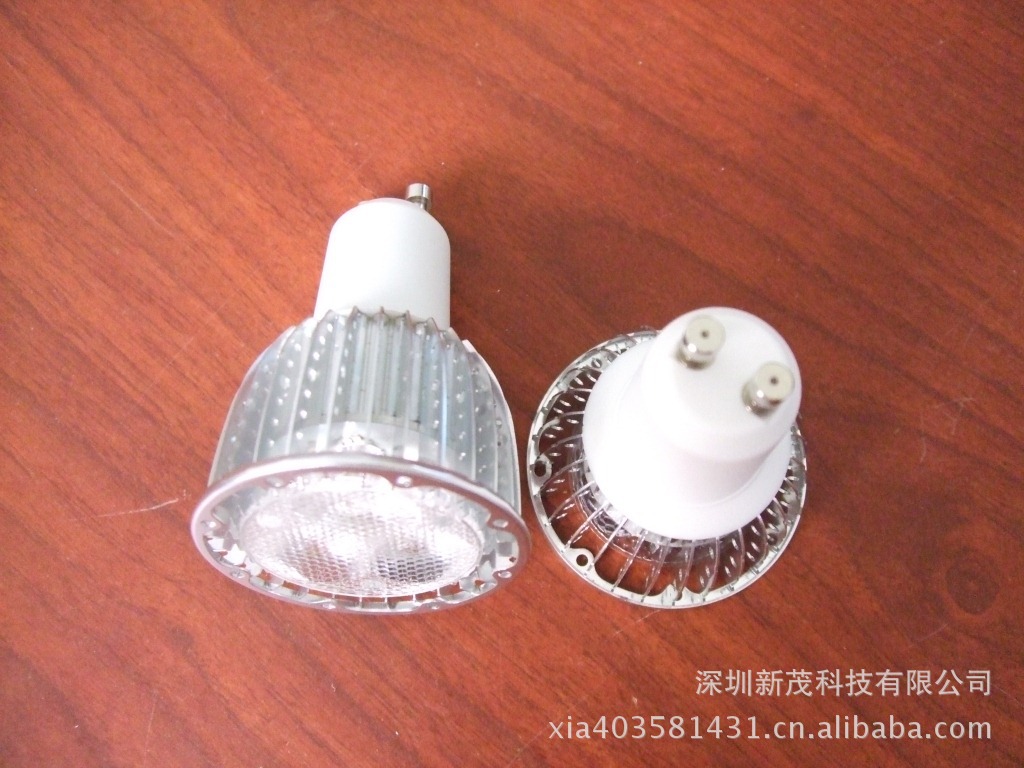

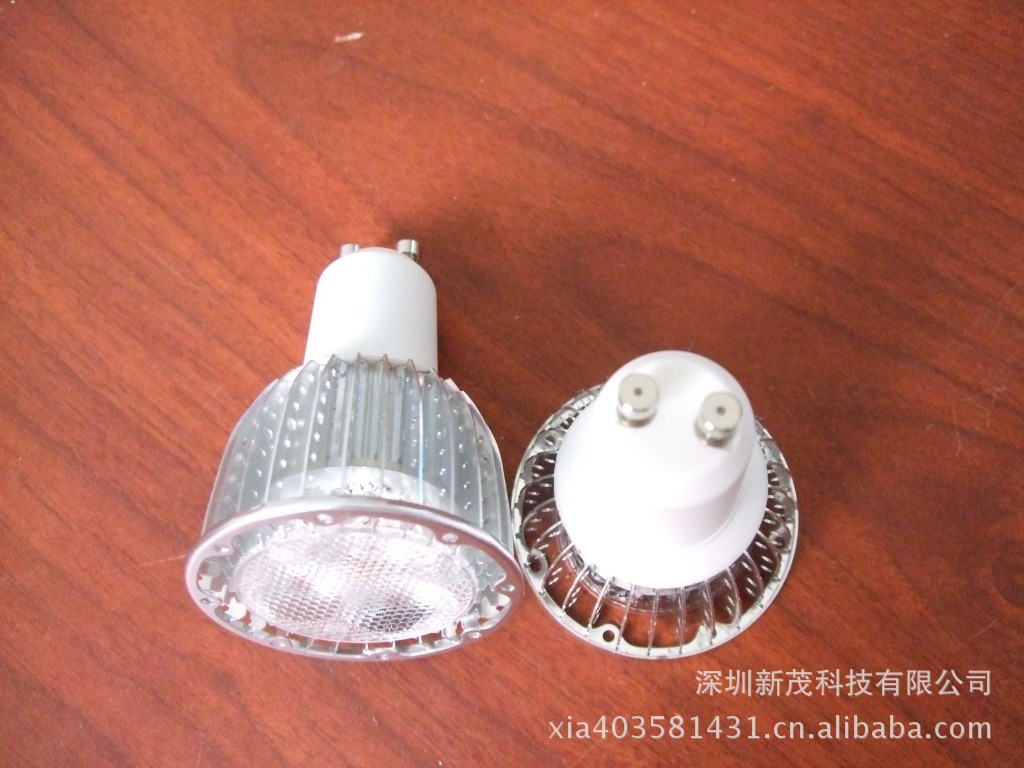

5WLED MR16 GU10 BASE

Model Number

SMMR16-5WW-GU10

SMMR16-5NW-GU10

SMMR16-5CW-WU10

Units

CCT(°K)

3000K±10%

4500K±10%

6000K±10%

Input Voltage

AC85-265V

V

Input Frequency

50~60 Hz

Hz

Power Factor

>0.55

---

PowerConsumption

Typical：4.5W   Maximum:5W

W

LED Operating Voltage

DC6-8V

V

LED Operating Current

650mA±5%

mA

Emission Angle

30?±5?

Degree

Average Illuminanceat1M

391Lx±2Lx

484Lx±5Lx

484Lx±5Lx

Lx

Average Illuminanceat 2M

97Lx±2Lx

121Lx±5Lx

121Lx±5Lx

Lx

Luminous Flux (lm)

300 lm±50 lm

300 lm±50 lm

300 lm±50 lm

lm

CRI

Ra＞70（WW）

Ra＞70（NW）

Ra＞70(CW)

%

Operating Temperature

﹣20℃~60℃

℃

Housing Temperature

≦65℃

℃

Operating Humidity

<85% Non condensed

%

MTBF(1)

>30,000Hr

Hr

Dimension / Weight

ψ49mm ×59mm / 0.04kg

Mm/Kg
