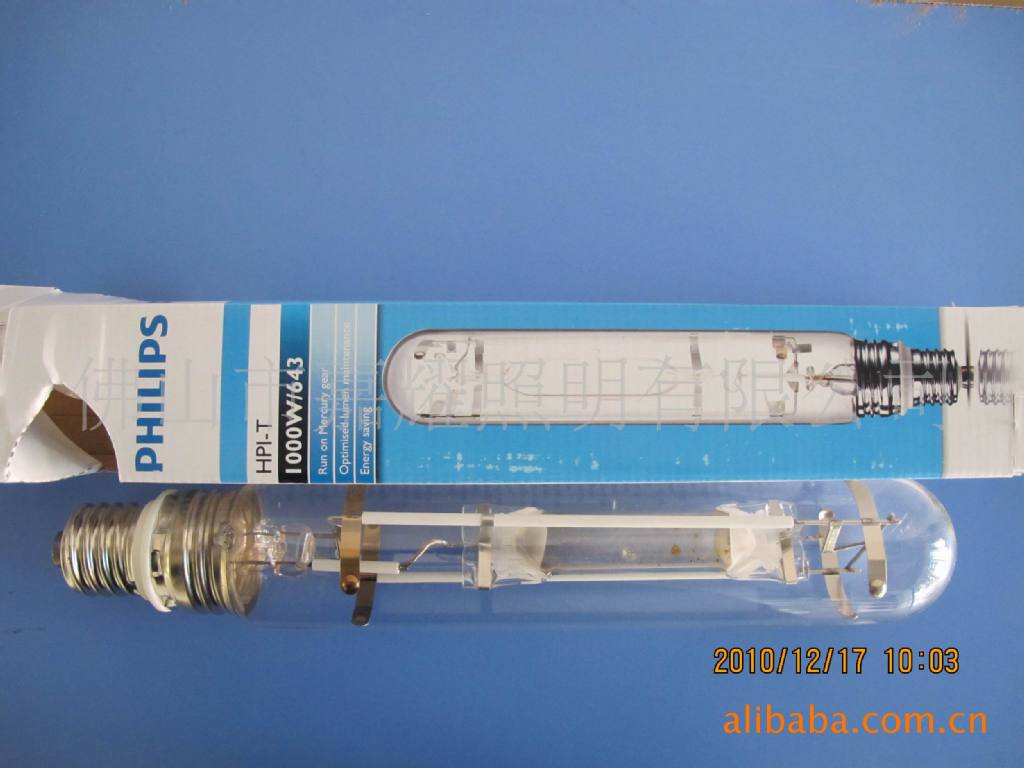

HPI-T 1000W/643 E40 220V CRP

一般特性

灯头座                                                      E40

玻壳                                                       T65 [T 65mm]

玻壳端口                                                    透明

运行位置                                                   p20 [并联+/-20D或水平(HOR)]

5％失效时寿命                                              3000 hr

10％失效时寿命                                             5500 hr

20％失效时寿命                                            8000 hr

50％失效时寿命                                             12000 hr

电气特性

额定光源功率                                               1000 W

灯功率(配电感镇流器时)                                                  985.0 W

电压                                                      220 V

灯电压                                                    130 V

灯电流(配电感镇流器时)                                                  8.25 A

可调光                                                     No

环境特性

汞（Hg）含量                                             68 mg

照明灯技术特性

色标                                                      643 [CCT of 4300K]

显色指数                                                 65 Ra8

颜色描述（文字）                                          冷白色

色温                                                     4300 K

色温技术                                                 4300 K

色度坐标X                                                                 370 -

色度坐标Y                                                                 380 -

光通量灯具EM                                                            85000 Lm

光源光效(配电感镇流器时)                                              86 Lm/W

2000小时流明维持率                                       87 %

5000小时流明维持率                                      80 %

10000小时流明维持率                                     75 %

平均亮度EM                                                               710 cd/cm2

流明维护，场致发光片                                     1500h90 %

产品尺寸

总长C                                                                      382 mm

直径D                                                                       66 mm

光中心长度L                                                               240 mm

弧长O                                                                       80 mm

灯具设计要求

灯头灯座温度                                              300 C

灯管温度                                                  555 C

HPI-T 2000W/642 E40 380V CRP

一般特性

系统描述                                                   高输出

灯头座                                                    E40

玻壳                                                      T100 [T 100mm]

玻壳端口                                                   透明

运行位置                                                  p20 [并联+/-20D或水平(HOR)]

5％失效时寿命                                             3000 hr

10％失效时寿命                                           5500 hr

20％失效时寿命                                           8000 hr

50％失效时寿命                                           12000 hr

电气特性

额定光源功率                                             2000 W

灯功率(配电感镇流器时)                                                1955 W

电压                                                      380 V

灯电压                                                    232 V

灯电流(配电感镇流器时)                                                  9.1 A

可调光                                                      No

环境特性

汞（Hg）含量                                              256 mg

照明灯技术特性

色标                                                      642 [CCT of 4200K]

显色指数                                                  65 Ra8

颜色描述（文字）                                           冷白色

色温                                                      3800 K

色温技术                                                  3800 K

色度坐标X                                                                  397 -

色度坐标Y                                                                  403 -

光通量灯具EM                                                             210000 Lm

光源光效

​
