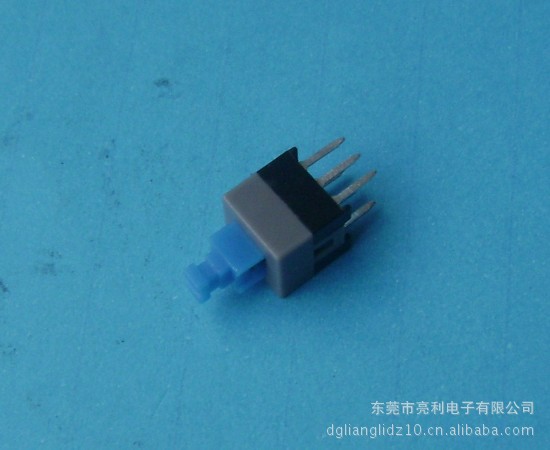

产品图片
規格參數
| 額定負荷 Rating | DC 30V 0.1A |
| 接觸阻抗 Contact Resistance | ≤100m |
| 絕緣阻抗 Insulation Resistance | ≥100M DC500V |
| 絕緣耐電壓 Withstand voltage | AC 250V 1Minute |
| 電氣壽命 Electrical Life | 10,000-30,000 Cycles above （Load） |
| 操作力 Operating force range | 200±50gf |
機械壽命 Mechanical Life | 100,000Cycles （NO Load） |
| 使用溫度 Operating temperature range | -25。C+80。C |
| 使用濕度 Ambient humidity used | ≤85%RH |
| 可焊性 Solder ability | 245。C±5。C 3S±0.5S |
| 耐焊接熱 Withstand Soldering temperature | 260。C±5。C 3S±1S |
產品特徵
具備多種外形尺寸設計
There are many dimensions available , such as
開關聲音清脆,手感、節奏感極佳
The switch sounds silvery , feeling and rhythm are perfect
產品鎖芯機構具備無鎖和有鎖不同結構設計
The are 2 operating modes : Self_Lock and Non-Lock
可依據客戶要求設計不同端子腳位和不同按鍵高度產品
The state of terminals and height of pushbutton can be designde according to customer's requirements
用途
主要應用于電腦周邊控制、電視機、音響設備、各類小型自動化設備、小型儀器設備的控制等
The push button switches can operate computer ancillary equipment , TV , audio equipment ,
all kinds of small autoimmunization equipment and instruments etc .
