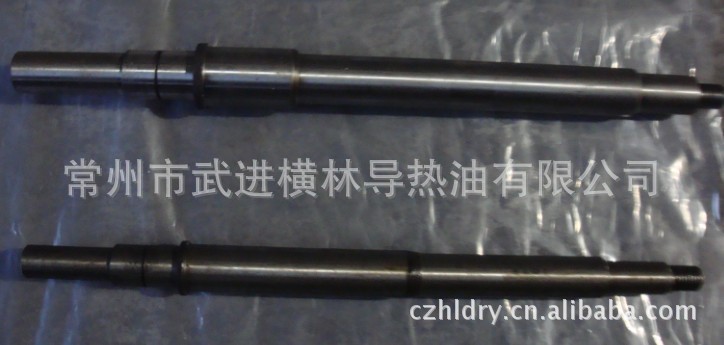

横林厂家直销武英牌导热油泵专用导热油泵配件 泵轴30kw
WRY热油泵规格性能参数表
型号 | 流量
m3/h | 扬程
m | 转速
r/min | 功率KW | 效率
n% | 气蚀余量
m |
轴功率 | 配用功率 |
26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 | 40 | 0.8 |
50-32-150 | 8 | 22 | 2840 | 1.0 | 1.5 | 42 | 1.6 |
50-32-160 | 10 | 25 | 2840 | 1.5 | 2.2 | 42 | 1.8 |
65-40-160 | 12.5 | 25 | 2880 | 2.5 | 3 | 45 | 2.2 |
50-50-170 | 12.5 | 32 | 2890 | 3.2 | 4 | 45 | 2.5 |
50-50-150 | 24 | 18 | 2890 | 3.1 | 4 | 46 | 1.8 |
65-40-190 | 18 | 40 | 2890 | 4.5 | 5.5 | 52 | 2.8 |
65-50-180 | 32 | 32 | 2900 | 4.5 | 5.5 | 52 | 2.7 |
65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 | 52 | 2.7 |
65-50-150 | 52 | 16 | 2900 | 4.2 | 5.5 | 52 | 2.8 |
65-40-200 | 25 | 50 | 2900 | 6.7 | 7.5 | 63 | 3.1 |
80-50-180 | 40 | 40 | 2900 | 6.7 | 7.5 | 63 | 3.1 |
80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 | 63 | 3.1 |
100-65-190 | 60 | 38 | 2930 | 9.2 | 11 | 68 | 3.5 |
100-65-200 | 80 | 40 | 2930 | 12.5 | 15 | 70 | 3.5 |
100-65-220 | 58 | 50 | 2930 | 12.5 | 15 | 68 | 3.5 |
100-65-210 | 90 | 45 | 2930 | 15.7 | 18.5 | 70 | 3.6 |
100-65-230 | 58 | 60 | 2930 | 15.5 | 18.5 | 62 | 3.5 |
100-65-230 | 100 | 55 | 2940 | 19.5 | 22 | 70 | 3.6 |
125-100-190 | 155 | 30 | 2930 | 17.6 | 22 | 72 | 3.8 |
100-65-240 | 100 | 70 | 2950 | 25.5 | 30 | 69.8 | 4.1 |
100-65-257 | 100 | 80 | 2950 | 32.5 | 37 | 67 | 3.6 |
125-100-220 | 160 | 45 | 2950 | 25.5 | 37 | 75 | 3.6 |
125-80-250 | 160 | 60 | 2970 | 35.5 | 45 | 74 | 5 |
