产品简介
特点(features):
1、4方向+中央按钮操作的多方向输入型
The operation function of the control unit enables centre push operation
2、用单一按钮实现了复合操作
Compound operation using a sing knob is realized
3、紧凑、超薄的结构支持回流焊接,可采用编带包装
Compact size and low-profile forms are avaliable for refold soldering ; avaliable for tape and reel packaging
用途(Applications):
适用于通讯设备、手机的操作
Communication equipment operating as portable telephones
适用于小型、便携式的照相机、掌上电脑的操作
Compact,portable unit such as cameras ,PDA etc.

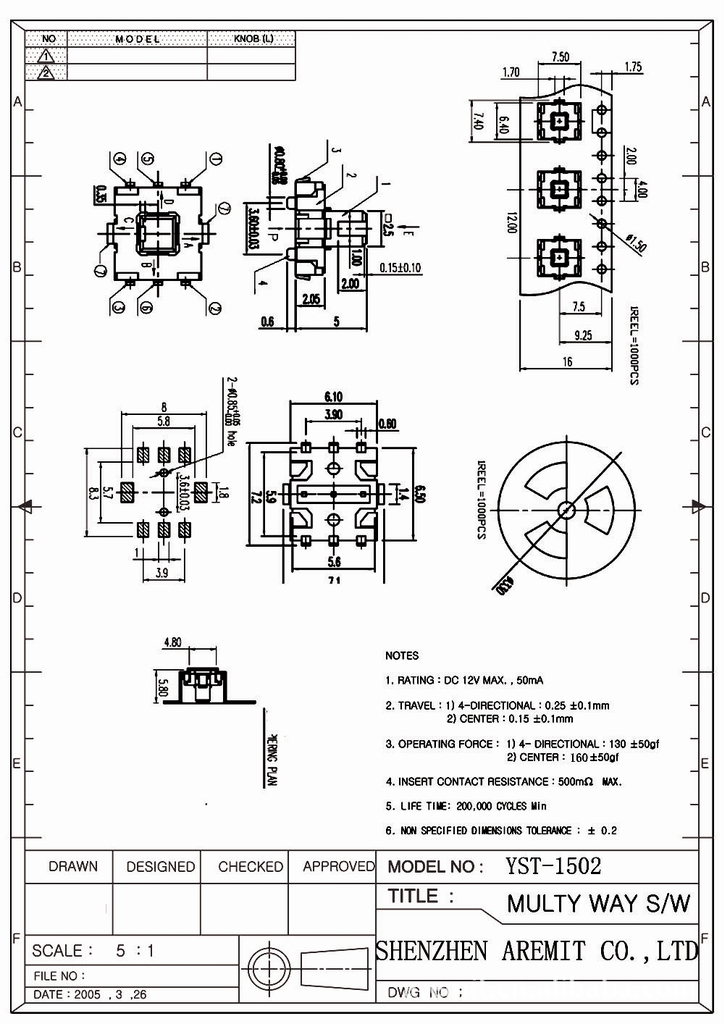

产品图片

项目Items | 标准Standard |
绝缘电阻(Insulation resistance) | 100MΩ min 100V DC |
介电强度(Dielectric strength) | 250V AC for 1 min |
接触电阻(Contact resistance) | 100 mΩ max |
操作温度(Operating temperature range) | -25℃ to ±70℃ |
寿命(lifetime) | 250,000 Cycles |
操作力(Operating force) | 4-direction 70±30 gf Center push 200±50gf |
行程(Travel) | 4-direction0.4±0.1mm Center push 0.20±0.1mm |
