品牌/型号

衡孚/HF400W-S

输入电压

170-264（V）V

输出功率

400（W）W

输出电压

5-110（V）V

产品认证

其他

工作效率

80（%）%

输出电压精度

0.5（%）%

400W 单路输出电源参数

High reliability, low cost
Built in fan speed control
100% full load burn-in test
Protections: over current/ over voltage/
over temperature/ short circuit
1 year warranty

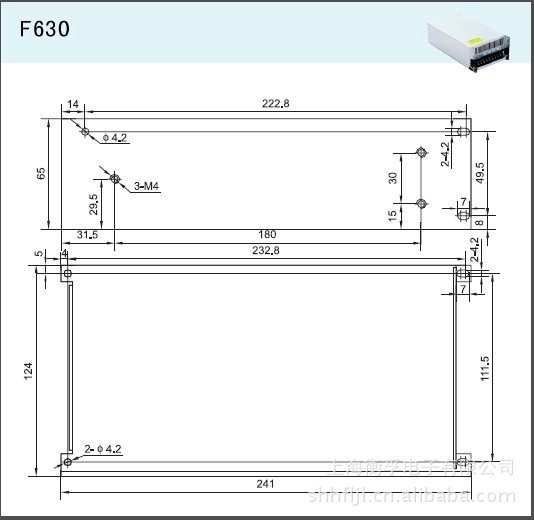

F630 241 x 124 x 65(mm)
AC input voltage range ................... 170~264VAC (210~370VDC)
Input frequency .............................. 47~63Hz
Inrush current .................................. cold start, 40A/230V
Input leakage current ...................... ≤0.7mA/ 230VAC
Line regulation (full load) ................. ≤0.5%
Output voltage adjust range ...........+10%
Output over current protection ........ 110~130%, current limiting, auto recovery
Output over voltage protection ....... 115~150%
Withstand voltage ........................... I/P -O/P: 1.5KVAC/1min
I/P -F/G: 1.5KVAC/1min
O/P-F/G: 0.5KVAC/1min
Rise, Hold up time ......................... 50ms,20ms@fullload (typical)
Operating temp. & humidity ............ -10 ~+50 , 20%~90%RH (non condensing)
Storage temp. & humidity ............... -20 ~+85 , 20%~95%RH (non condensing)
Safety standards ............................ design refer to GB4943, UL60950, EN60950
EMC standards ............................... design refer to GB9254, EN55022 classA
Cooling method ............................... fan
        Model           DC Output         Load regul.     R&N      Efficiency
HF400W-S-12        12V 33.0A            0.5%          150mV      83%
HF400W-S-24        24V 17.0A           0.5%          150mV      85%
HF400W-S-36        36V 13.0A            0.5%         150mV       85%
HF400W-S-48        48V 8.3A              0.5%           200mV      86%
* 3~48VDC output all available.
