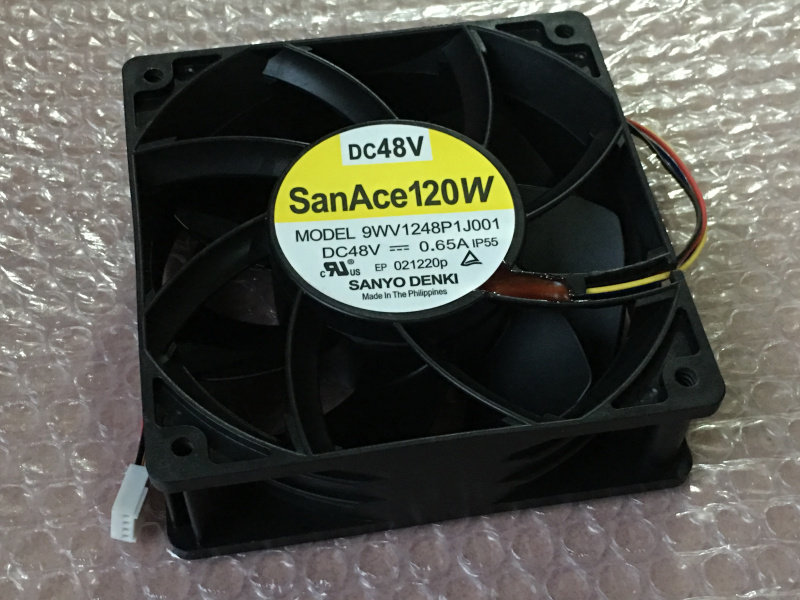

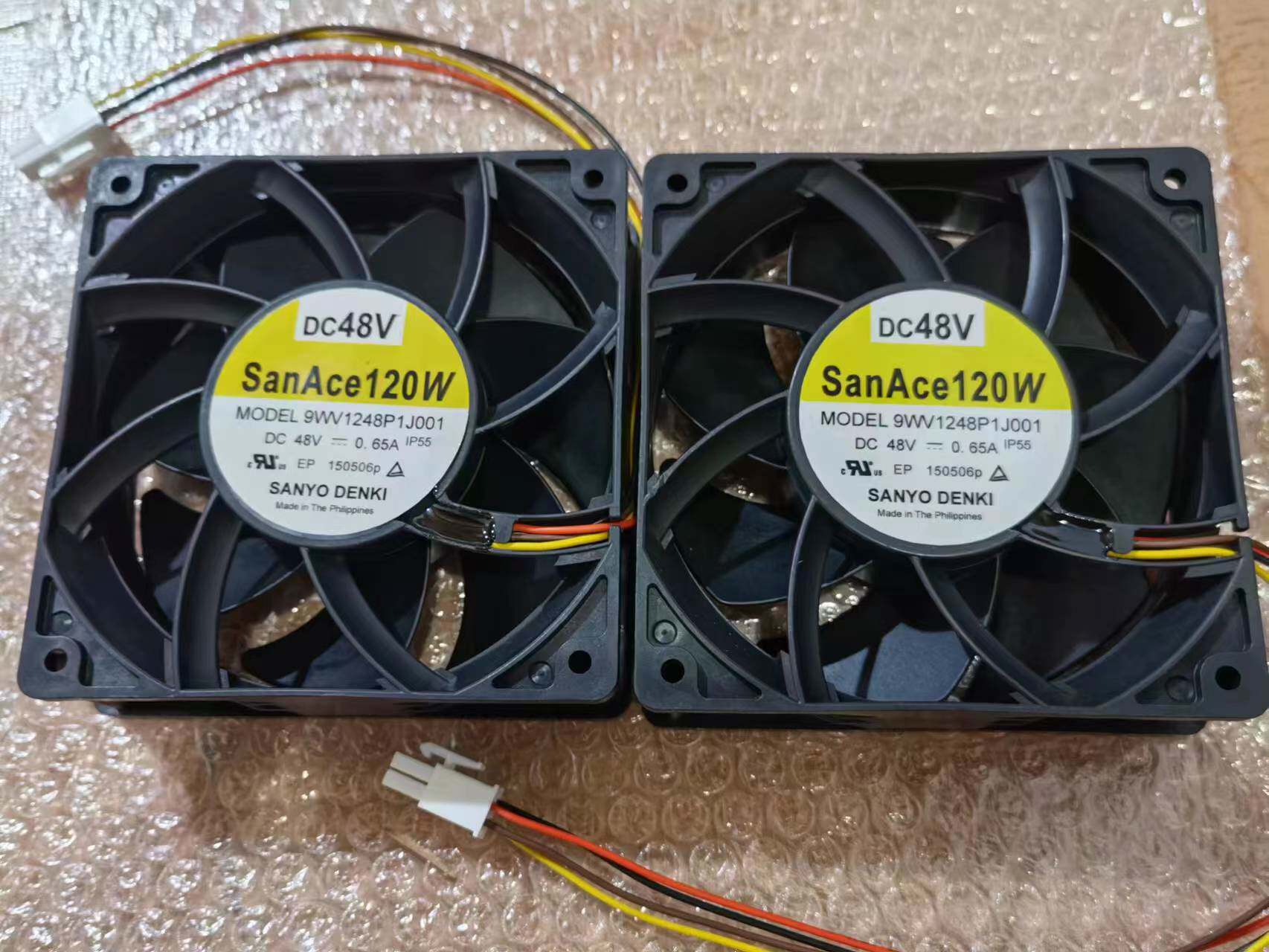

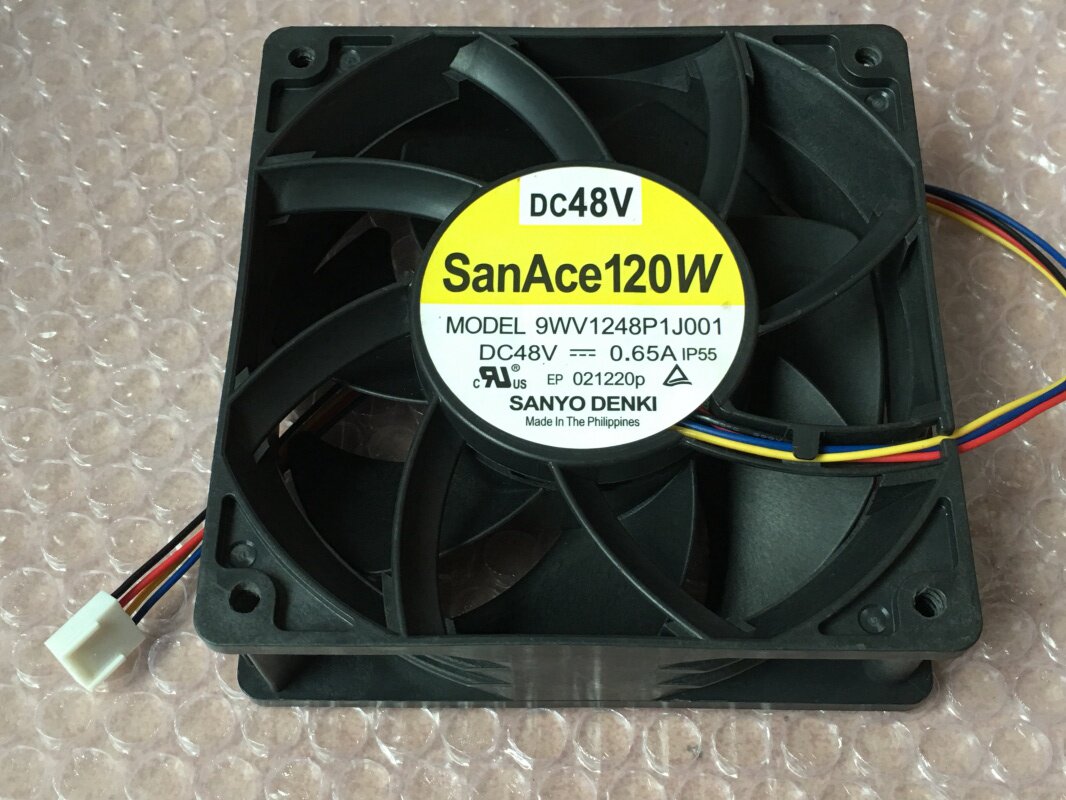

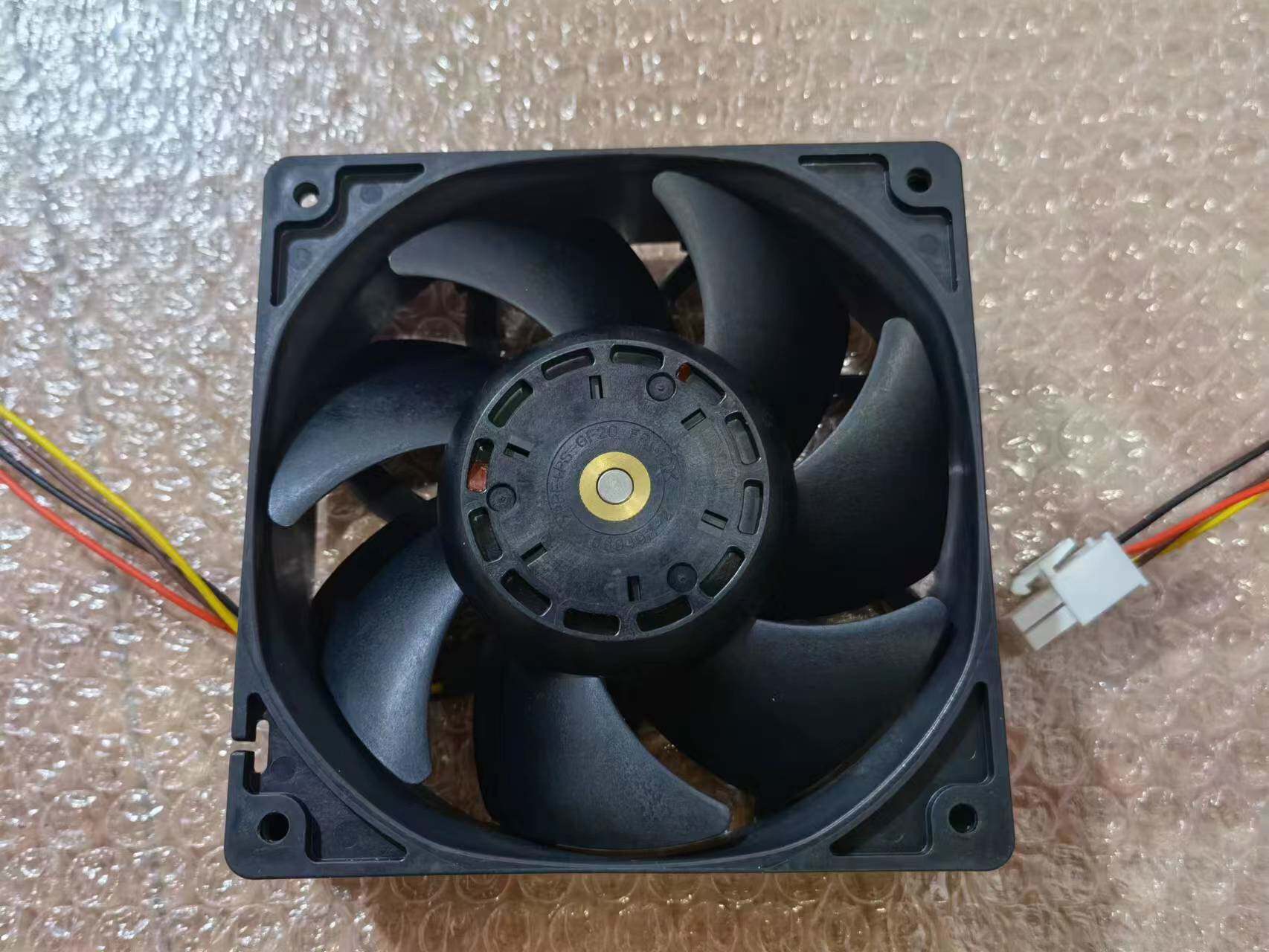

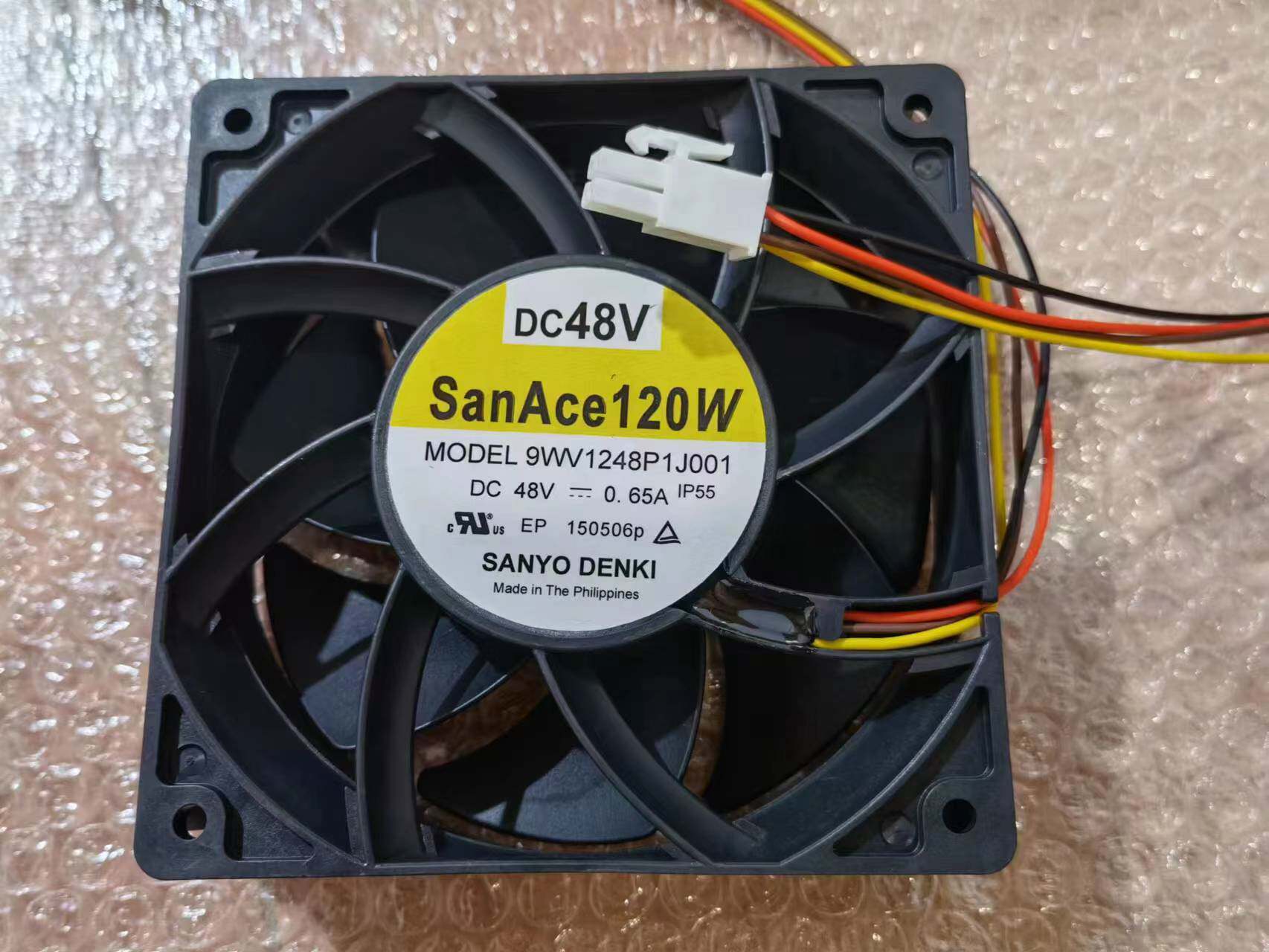

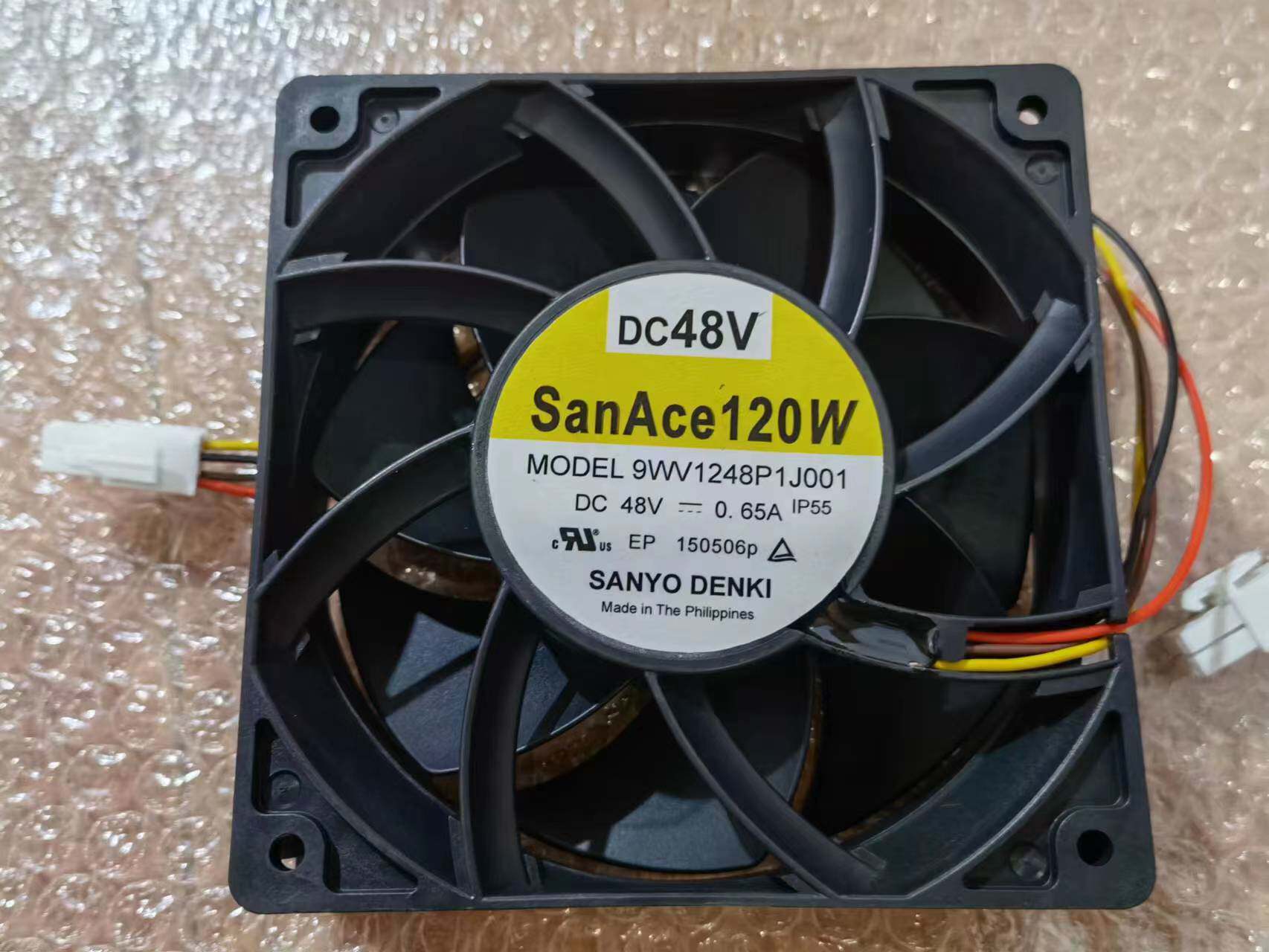

原装三洋 9WV1248P1J001 12038 48V 0.65A 12CM 大风量散热风扇
型号：9WV1248P1J001
DC Fans Fan 120x38mm 48VDC SplashProof Tach PWM
| Manufacturer: | Sanyo Denki | |
| Product Category: | DC Fans | |
| RoHS: | Details | |
| Product: | DC Fans | |
| Type: | Splash Proof | |
| Size: | 120 mm | |
| Frame Dimensions - mm: | 120 mm x 120 mm x 38 mm | |
| Operating Supply Voltage: | 48 VDC | |
| Airflow: | 225.28 CFM | |
| Speed: | 6400 RPM | |
| Pressure Type: | 36 mmAq | |
| Noise: | 64 dBA | |
| Housing Material: | Aluminum | |
| Termination Style: | Wire Leads | |
| Brand: | Sanyo Denki | |
| Current Type: | DC | |
| Height: | 120 mm | |
| Length: | 120 mm | |
| Packaging: | Bulk | |
| Series: | 9WV | |
| Factory Pack Quantity: | 20 | |
| Tradename: | San Ace | |
| Width: | 38 mm | |
| Part # Aliases: | 3568884 40T7354 |
