厂家专业生产不锈钢丝网 304 316不锈钢丝网
安平县兆通五金网业有限公司
中国 衡水
产品属性
图文详情
品牌推荐
品牌/厂家
兆通
类型
不锈钢网

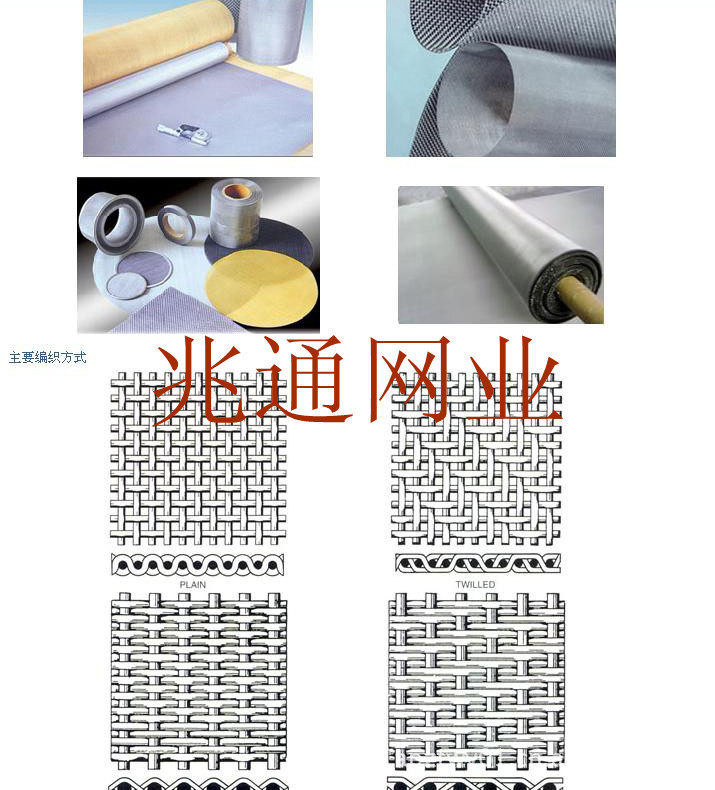

编织工艺
斜纹编织
材料
不锈钢
规格
多种（m）
不锈钢丝网规格参考数：
| 目数 | 丝径 | 孔径 | 开孔面积 | 网重（磅） /100 平方英尺 | ||
| 英寸 | 毫米 | Inch | 毫米 | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
斜纹－密纹编织不锈钢丝网技术参数:
| 目数 | 丝径 | 绝对过滤值μm | 名义过滤值μm |
| 20x250 | .0098x.0079 | 110-120 | 98-105 |
| 30x360 | .0098x.0060 | 90-100 | 80-84 |
| 40x560 | .0070x.0040 | 70-75 | 47-52 |
| 120x400 | .0040x.0025 | 50-55 | 37-43 |
| 120x160 | .0040x.0025 | 40-45 | 28-32 |
| 80x700 | .0040x.0030 | 35-40 | 24-26 |
| 200x600 | .0024x.0018 | 28-32 | 19-21 |
| 165x800 | .0028x.0020 | 24-26 | 14-16 |
| 165x1400 | .0028x.0016 | 16-18 | 9-11 |
| 200x1400 | .0028x.0016 | 12-14 | 5-6 |
| 250x1400 | .0022x.0016 | 11-12 | 3-4 |
| 325x2300 | .0015x.0010 | 8-9 | 2-3 |
平纹－密纹编织不锈钢丝网技术参数:
| 目数 | 丝径 | 绝对过滤值μm | 名义过滤值 μm |
| 8X85 | .014X.0126 | 318 － 340 | 250 － 255 |
| 12X64 | .024X.0165 | 270 － 285 | 200 － 205 |
| 14X88 | .020X.013 | 225 － 245 | 150 － 155 |
| 20X150 | .0098X.007 | 155 － 165 | 100 － 105 |
| 24X100 | .015X.010 | 115 － 125 | 80 － 85 |
| 30X150 | .009X.007 | 95 － 100 | 65 － 70 |
| 40X200 | .007X.0055 | 65 － 70 | 55 － 60 |
| 50X250 | .0055X.0045 | 55 － 60 | 40 － 45 |
| 80X400 | .0049X.0028 | 43 － 48 | 35 － 40 |
