德国B S 海模导向环

0台起批

￥8

中国佛山

产品属性

图文详情

品牌推荐

品牌/型号

宝色霞板/导向环

材质

聚氨酯

是否进口

是

是否标准件

标准件

样品或现货

现货

使用温度

-40℃至 110℃（℃）℃

使用压力

25至40（MPa）MPa

品牌: 瑞典特瑞堡TRELLEBORG（原宝色霞板Busak+Shamban）

品名: 德国海模斯来圈耐磨环
HiMod Slydring Wear Ring

说明

海模斯来圈是用特殊的、经过改进的热塑材料制成的，能够用于中等负载至重型负载的液压缸。有三种不同等级的材料可以提供:海模 HM061: 特殊玻璃纤维增强的聚甲醛海模。 HM062: 特殊玻璃纤维增强、热稳定的聚酰胺，含PTFE填充物海模。 HM063: 特殊玻璃纤维增强、热稳定的聚酰胺用。HM061、HM062 和 HM063 等海模材料制成的斯来圈是注射成型的(必须有模具)，标准尺寸的范围很宽。

旧型号的资料说明中，等效于HM061的有：

Polypac:
PO (POM/GL/BK)

Sealing Parts: POG2 (Wearite)

材料

海模 HM061是聚醛(POM)基材料，含有玻璃纤维。

优点:

- 非常好的性能/价格比；压缩强度高；便于安装在活塞和导套中(导套孔径>40 mm)；耐磨性高；吸水率 0.2%；刚性好。

技术数据

速度，往复运动: ≤ 0.8 m/s

温度:
-40℃至+110℃

径向安装斯来圈技术数据：

最大承载力 Pr: 最高40 N/mm2，在25℃

最高25 N/mm2，>60℃

特殊用途:

要求其他材料组合的特殊用途，请和佛山市轩仑密封液压元件有限公司联系。

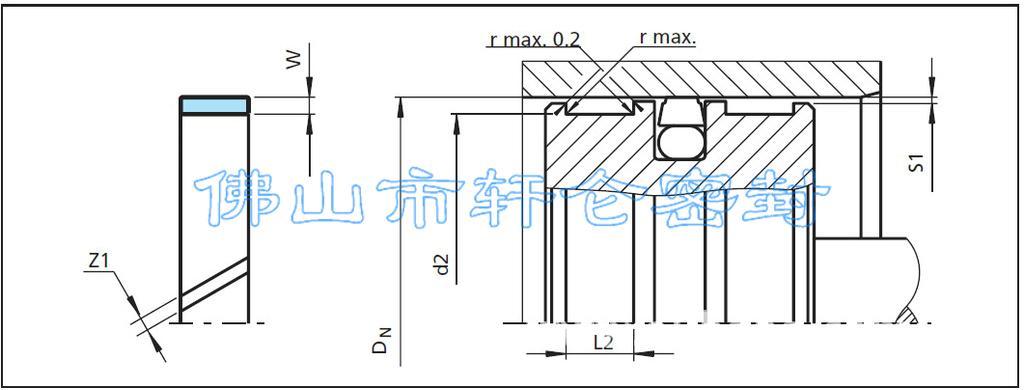

海模孔用导向环:

订货编号	Polypac编号
		GP4300120-HM061	WR 8.9 12 4
		GP4300160-HM061	WR 12.9 16 4
GP4300200-HM061	WR 16.9 20 4
GP4300240-HM061	WR 20.9 24 4
GP4300250-HM061	WR 21.9 25 4
GP6500250-HM061	WR 20 25 5.6
GP6900250-HM061	WR 20 25 9.7
GP6500270-HM061	WR 22 27 5.6
GP6900270-HM061	WR 22 27 9.7
GP6500300-HM061	WR 25 30 5.6
GP6900300-HM061	WR 25 30 9.7
GP4300320-HM061	WR 28.9 32 4
GP6500320-HM061	WR 27 32 5.6
GP6900320-HM061	WR 27 32 9.7
GP6500330-HM061	WR 28 33 5.6
GP6500350-HM061	WR 30 35 5.6
GP6900350-HM061	WR 30 35 9.7
GP6500370-HM061	WR 32 37 5.6
GP6900370-HM061	WR 32 37 9.7
GP6500400-HM061	WR 35 40 5.6
GP6900400-HM061	WR 35 40 9.7
GP6500410-HM061	WR 36 41 5.6
GP6900410-HM061	WR 36 41 9.7
GP6500450-HM061	WR 40 45 5.6
GP6900450-HM061	WR 40 45 9.7
GP7300450-HM061	WR 40 45 15
GP6500500-HM061	WR 45 50 5.6
GP6900500-HM061	WR 45 50 9.7
GP7300500-HM061	WR 45 50 15
GP6500520-HM061	WR 47 52 5.6
GP6500550-HM061	WR 50 55 5.6
GP6900550-HM061	WR 50 55 9.7
GP7300550-HM061	WR 50 55 15
GP6500570-HM061	WR 52 57 5.6
GP6900570-HM061	WR 52 57 9.7
GP6900580-HM061	WR 53 58 9.7
GP6500600-HM061	WR 55 60 5.6
GP6900600-HM061	WR 55 60 9.7
GP6500610-HM061	WR 56 61 5.6
GP6900610-HM061	WR 56 61 9.7
GP6500630-HM061	WR 58 63 5.6
GP6900630-HM061	WR 58 63 9.7
GP6500650-HM061	WR 60 65 5.6
GP6900650-HM061	WR 60 65 9.7
GP6500680-HM061	WR 63 68 5.6
GP6900680-HM061	WR 63 68 9.7
GP7300680-HM061	WR 63 68 15
GP6500700-HM061	WR 65 70 5.6
GP6900700-HM061	WR 65 70 9.7
GP6500720-HM061	WR 67 72 5.6
GP6500750-HM061	WR 70 75 5.6
GP6900750-HM061	WR 70 75 9.7
GP7300750-HM061	WR 70 75 15
GP6500800-HM061	WR 75 80 5.6
GP6900800-HM061	WR 75 80 9.7
GP7300800-HM061	WR 75 80 15
GP6500850-HM061	WR 80 85 5.6
GP6900850-HM061	WR 80 85 9.7
GP7300850-HM061	WR 80 85 15
GP6500900-HM061	WR 85 90 5.6
GP6900900-HM061	WR 85 90 9.7
GP7300900-HM061	WR 85 90 15
GP6500950-HM061	WR 90 95 5.6
GP6900950-HM061	WR 90 95 9.7
GP6501000-HM061	WR 95 100 5.6
GP6901000-HM061	WR 95 100 9.7
GP7301000-HM061	WR 95 100 15
GP6501050-HM061	WR 100 105 5.6
GP6901050-HM061	WR 100 105 9.7
GP7301050-HM061	WR 100 105 15
GP6901100-HM061	WR 105 110 9.7
GP7301100-HM061	WR 105 110 15
GP6901150-HM061	WR 110 115 9.7
GP7301150-HM061	WR 110 115 15
GP6901200-HM061	WR 115 120 9.7
GP6501250-HM061	WR 120 125 5.6
GP6901250-HM061	WR 120 125 9.7
GP7301250-HM061	WR 120 125 15
GP7301300-HM061	WR 125 130 15
GP6901400-HM061	WR 135 140 9.7
GP7301400-HM061	WR 135 140 15
GP6901600-HM061	WR 155 160 9.7
GP7301600-HM061	WR 155 160 15
GP7302000-HM061	WR 195 200 15

海模轴用导向环:

订货编号	Polypac编号
		GR4300200-HM061	WR 20 23.1 4
		GR6500200-HM061	WR 20 25 5.6
GR6900200-HM061	WR 20 25 9.7
GR6500220-HM061	WR 22 27 5.6
GR6900220-HM061	WR 22 27 9.7
GR4300250-HM061	WR 25 28.1 4
GR6500250-HM061	WR 25 30 5.6
GR6900250-HM061	WR 25 30 9.7
GR6500270-HM061	WR 27 32 5.6
GR6900270-HM061	WR 27 32 9.7
GR6500280-HM061	WR 28 33 5.6
GR6500300-HM061	WR 30 35 5.6
GR6900300-HM061	WR 30 35 9.7
GR6500320-HM061	WR 32 37 5.6
GR6900320-HM061	WR 32 37 9.7
GR6500350-HM061	WR 35 40 5.6
GR6900350-HM061	WR 35 40 9.7
GR6500360-HM061	WR 36 41 5.6
GR6900360-HM061	WR 36 41 9.7
GR6500400-HM061	WR 40 45 5.6
GR6900400-HM061	WR 40 45 9.7
GR7300400-HM061	WR 40 45 15
GR6500450-HM061	WR 45 50 5.6
GR6900450-HM061	WR 45 50 9.7
GR7300450-HM061	WR 45 50 15
GR6500470-HM061	WR 47 52 5.6
GR6500500-HM061	WR 50 55 5.6
GR6900500-HM061	WR 50 55 9.7
GR7300500-HM061	WR 50 55 15
GR6500520-HM061	WR 52 57 5.6
GR6900520-HM061	WR 52 57 9.7
GR6900530-HM061	WR 53 58 9.7
GR6500550-HM061	WR 55 60 5.6
GR6900550-HM061	WR 55 60 9.7
GR6500560-HM061	WR 56 61 5.6
GR6900560-HM061	WR 56 61 9.7
GR6500580-HM061	WR 58 63 5.6
GR6900580-HM061	WR 58 63 9.7
GR6500600-HM061	WR 60 65 5.6
GR6900600-HM061	WR 60 65 9.7
GR6500630-HM061	WR 63 68 5.6
GR6900630-HM061	WR 63 68 9.7
GR7300630-HM061	ER 63 68 15
GR6500650-HM061	WR 65 70 5.6
GR6900650-HM061	WR 65 70 9.7
GR6500670-HM061	WR 67 72 5.6
GR6500700-HM061	WR 70 75 5.6
GR6900700-HM061	WR 70 75 9.7
GR7300700-HM061	WR 70 75 15
GR6500750-HM061	WR 75 80 5.6
GR6900750-HM061	WR 75 80 9.7
GR7300750-HM061	WR 75 80 15
GR6500800-HM061	WR 80 85 5.6
GR6900800-HM061	WR 80 85 9.7
GR7300800-HM061	WR 80 85 15
GR6500850-HM061	WR 85 90 5.6
GR6900850-HM061	WR 85 90 9.7
GR7300850-HM061	WR 85 90 15
GR6500900-HM061	WR 90 95 5.6
GR6900900-HM061	WR 90 95 9.7
GR7500920-HM061	WR 92 97 25
GR6500950-HM061	WR 95 100 5.6
GR6900950-HM061	WR 95 100 9.7
GR7300950-HM061	WR 95 100 15
GR6501000-HM061	WR 100 105 5.6
GR6901000-HM061	WR 100 105 9.7
GR7301000-HM061	WR 100 105 15
GR6901050-HM061	WR 105 110 9.7
GR7301050-HM061	WR 105 110 15
GR6901100-HM061	WR 110 115 9.7
GR7301100-HM061	WR 110 115 15
GR6901150-HM061	WR 115 120 9.7
GR6501200-HM061	WR 120 125 5.6
GR6901200-HM061	WR 120 125 9.7
GR7301200-HM061	WR 120 125 15
GR7301250-HM061	WR 125 130 15
GR6901350-HM061	WR 135 140 9.7
GR7301350-HM061	WR 135 140 15
GR7301550-HM061	WR 155 160 15
GR7301950-HM061	WR 195 200 15
