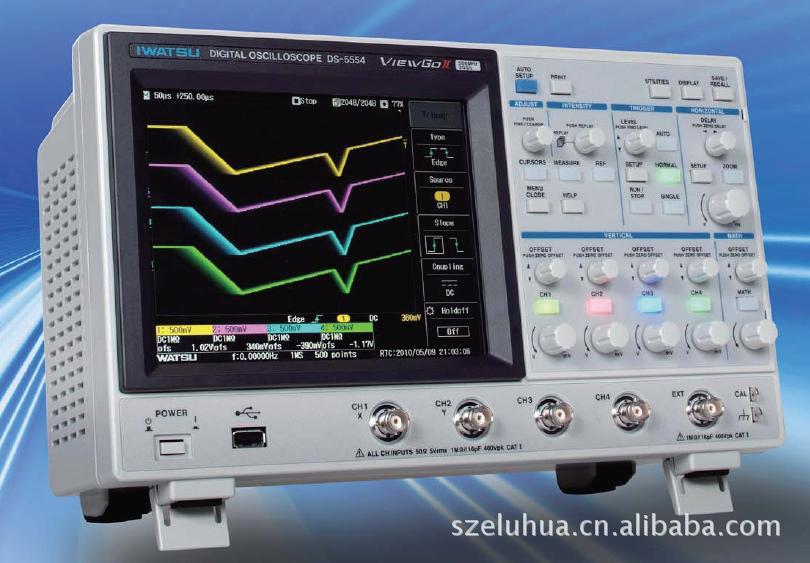

DS-5500 Series Specifications
DS-5514 DS-5512 DS-5524 DS-5522 DS-5534 DS-5532 DS-5554 DS-5552
Frequency bandwidth(-3dB) 100MHz 200MHz 350MHz 500MHz
Rise time(Typical) 3.5ns 1.75ns 1ns 750ps
Input Channel 4 2 4 2 4 2 4 2
Maximum Sampling Speed 1GS/s 1GS/s?all CHs?/ 2GS/s?Channel combined?
Equivalent Sampling Rate 100GS/s
Peak detect resolution 1ns
Averaging 2 to 256 times
Maximum Memory Length 1Mpts/ch?for all CHs?
Vertical Resolution 8-bit
Vertical
System
Range 2mV/p - 10V/p?1Mohm? 2mV/p - 10V/p?1Mohm?,2mV/p - 2V/p?50ohm?
Offset 2mV/p - 50mV/p : +/-1V,50.2mV/p - 500mV/p : +/-10V,502mV/p - 10V/p : +/-100V
DC accuracy +/?- 1.5% + 0.5% of Full Scale?
Maximum Input Voltage +/-400Vpeak CAT I? 1Mohm? +/-400Vpeak CAT ?I 1Mohm?, 5Vrms? 50ohm?
BW Limit 20MHz 20MHz,100MHz
Input coupling GND, DC 1Mohm, AC 1Mohm GND, DC 1Mohm, AC 1Mohm, DC 50ohm
Input Impedance 1Mohm +/-1.5% // 20pF 1Mohm +/-1.5% // 16pF,50ohm +/-1.5%
Probe sense Automatic 1:1, 10:1, 100:1, 1000:1, Manual 1:1, 5:1, 10:1, 20:1, 50:1, 100:1, 200:1, 500:1, 1000:1, 2000:1
Probe (One per channel) SS-0130R SS-101R
Timebase 5ns/p - 50s/p 2ns/p - 50s/p 1ns/p - 50s/p 500ps/p - 50s/p
Roll mode 50ms/p - 50s/p?100kS/s, max.?
Timebase (Clock) accuracy 10ppm
Trigger Function Edge, Edge ALT, Edge OR, Pulse Count, Pulse Width, Period, Dropout, TV, Pattern?OR, NOR, AND, NAND?
Trigger
System
TV mode NTSC, PAL, Custom
Line number /Field sequence upto 3,000 / 1, 2, 4 & 8 fields
Pulse Count Trigger 1 to 9,999events
Pulse Width Trigger 15ns to 50s
Period Trigger 40ns to 50s
Dropout Trigger 50ns to 50s
Pattern Trigger OR, NOR, AND, NAND
Trigger source / Status Input CHs / High , Low , Don’t-care
Trigger threshhold level setting Inpidually available for each CH
Trigger Source Input CHs, Line, EXT(+/-0.5V), EXT10(+/-5.0V)
Trigger Coupling AC, DC, HF Rej, LF Rej, Noise Rej
Display size/ resolution 7.5inch color TFT-LCD with Touch screen / VGA(640*480pixels)
Display mode Y-T, XY, XY (Triggered)
Vector Display Method Interpolation on sample points or Dots
Analog persistence mode Monochrome grayscale or Color Spectrum
Persistence time setting 100ms, 200ms, 500ms, 1s, 2s, 5s, 10s & Infinite
Reference waveform memory 5waveforms
Panel setting memory 5settings for Internal memory or USB memory
Parameter measurement
Maximum, Minimum, Peak-Peak, RMS, Cycle RMS, Mean, Cycle Mean, Top, Base, Top-Base, +Overshoot,
-Overshoot, Tr 20-80%, Tf 80-20%, Tr 10-90%, Tf 90-10%, Freq., Period, +Pulse Count, -Pulse Count, +Pulse Width,
-Pulse Width, Duty Cycle, Integral, Skew (+, -), Skew at level
Cursor Time, Amplitude, Time and Amplitude, Value at cursor
Zoom Zoom key enable display at inpidual grid area
Calculation Addition, Subtraction, Multiplication, FFT(8k points maximum, RECTANGULAR, HANNING, FLATTOP)
Rescaling / Unit conversion a*x+b(x: input voltage at User defined a and b) / Volt, Ampere, Watt, degree and unit-less
Replay Automatic waveform recording upto 2,048waveforms, History Replayable
Counter 6-digit
Interfaces USB 2.0(Host&Device), 10/100-BaseTX LAN, IEEE488.2 GPIB?Factory option: DS-576?
Multi Language Help Japanese, English, Simplified Chinese
AUX Interface AUX connector for External options
EXT Output(option) CH1&CH2 output: DS-577, CH1&TRIG output: DS-578
Waveform Data Storage USB memory for Binary, ASCII, Mathcad, Calculation(ASCII) & Calculation(Mathcad)
Hardcopy Output Output to USB memory in TIFF, BMP & PNG format or Output to PictBridge Printers
AC input voltage, Frequency, Power
consumption 90 to 264V AC at 50Hz/60Hz, 90 to 132V AC at 50Hz/60Hz/400Hz, 95VA (60W) max.
Dimensions / Weight 330(W)*190(H)*124(L) mm / 3.7kg
Performance guaranteed Temperature range +10?C to +35?C
Operation temperature and humidity /
Altitude conditions 0deg. to +40?C at 5 to 80%(RH<=30?C) and 55%RH or less at 40?C non-condensation / 2,000meter or lower
Storage temperature -20?C to +60?C
