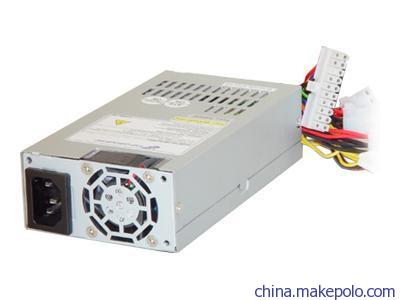

1U Single】P1A-6300P
 |
300W |
ATX 2.03,ATX12V(P4),EPS12V,WTX,AMD-GES |
Server,Workstation,Storage System,IPC | | |
 |
|
205.00x100.00x40.50 (mm)
8.07x3.94x1.59 (inch) |
| |
VOLTAGE: 90 ~ 264 VAC FULL RANGE
FREQUENCY : 47 ~ 63 HZ
INPUT CURRENT: 6.0 A ( RMS ) FOR 115VAC
3.0 A ( RMS ) FOR 230VAC
INRUSH CURRENT: 60.0A MAX. FOR 115 VAC; 80.0A MAX. FOR 230 VAC |
| | | |
 |
| Output Voltage |
Output Current Min. |
Output Current Max. |
Output Current Peak |
Regulation Load |
Regulation Line |
Output Ripple & Noise Max.[P-P] |
| 5V |
3 |
24.00 |
|
± 5% |
± 1% |
80mV | | |
|
| 12V |
2 |
20 |
22 |
± 8% |
± 1% |
120mV | | |
|
| -5V |
0 |
0.5 |
|
±10% |
± 1% |
150mV | | |
|
| -12V |
0 |
0.5 |
|
±10% |
± 1% |
150mV | | |
|
| +5VSB |
0.1 |
1.5 |
|
± 5% |
± 1% |
80mV | | |
|
|
| REMARKS: 1. THE OUTPUT POWER OF 5V & 3.3V NOT EXCEED 170 WATTS 2. THE OUTPUT POWER OF 5V, 3.3V AND 12V NOT EXCEED 284 W 3. TOTAL OUTPUT POWER NOT EXCEED 300 WATTS |
*Active PFC (full range), MEET IEC-1000-3-2 CLASS D
*12V Max. Current : 20A
*TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃.
* HUMIDITY:OPERATING:20%-95%, NON-OPERATING:10%-95%
* REMARKS:85% IS NORMAL CONDITION AND 95% IS WITH SPECIAL COATING PROCESS
*EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
*OVER POWER PROTECTION
*OVER VOLTAGE PROTECTION
*OVER CURRENT PROTECTION
*SHORT CIRCUIT PROTECTION
*SAFETY: UL, CSA, TUV, CCC, GOST
*Remote on/off control
*Cooling: ONE 40 mm DC Fan
*3.3V /5V Remote sensing
*Extend AC cable ( optional )
*Serial ATA optional
*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS | | | | | |
