Description

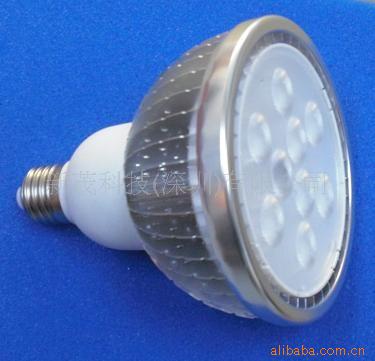

15WLED PAR38 Spot Light

Model Number

SMP38-15WW

SMP38-15NW

SMP38-15CW

Units

CCT(°K)

3000K±10%

4500K±10%

6000K±10%

Input Voltage

AC85~265V

V

Input Frequency

50~60 Hz

Hz

Power Factor

>0.95

---

PowerConsumption

Typical：15W   Maximum:16W

W

LED Operating Voltage

DC30-33 V

V

LED Operating Current

480Ma±5%

Ma

Emission Angle

25?LENS

Degree

Average Illuminanceat1M

3587Lx±5Lx

3485Lx±5Lx

3485Lx±5Lx

Lx

Average Illuminanceat 2M

896Lx±5Lx

871Lx±5Lx

871Lx±5Lx

Lx

LEDLuminous Flux (lm)

1100 lm±100 lm

1100 lm±100lm

1100 lm±100lm

lm

CRI

Ra＞45（WW）

Ra＞70（NW）

Ra＞70(CW)

%

Operating Temperature

﹣20℃~60℃

℃

Housing Temperature

≦60℃

℃

Operating Humidity

<85% Non condensed

%

MTBF(1)

>30,000Hr

Hr

Dimension / Weight

 ψ119mm *128mm /0.330kg

Mm/Kg

Box Size / Weight

130*130*136mm / 0.420Kg

Mm/Kg

Carton Size / Weight /Quantity

56*43*32CM/ 11kg / 24pcs

Cm/Kg/Pcs

Housing Color

Silver /Golden/Black/…

Base Type

E27 / E26 / B22 (Available)
