PCB继 电 器

JQC-3FF

●10A switching capability

●Small footprint

●Sealed type available

●Class B/F available

●Conform to RoHS,ELV directive

Nominal Voltage额定电压(VDC)

3

5

6

9

12

18

24

48

0.36W

Coil Resistance线圈阻值(Ω±10%)

25

69

100

225

400

900

1600

6400

Rated Current额定电流(mA)

120

71.4

60

40

30

20

15

7.5

Max Operate Voltage最大吸合电压(VDC)

2.25

3.75

4.5

6.75

9

13.5

18

36

Min Release Voltage最小释放电压(VDC)

0.15

0.25

0.3

0.45

0.6

0.9

1.2

2.4

Max ApplicableVoltage最大过载电压

70℃时额定电压的130%，23℃时额定电压的170%

Contact  Form触点形式

1H/1Z

Contact  Material触点材料

Silver Alloy

Load负载

Resistive load(COSФ=1)

Contact  Ratings触点负载

1H:10A 240VAC               1Z: 7A 240VAC

12A120VAC                  10A120VAC

Minimum load最小负载

100mA 5VDC

Max Switching Voltage最大转换电压

250VAC/30VDC

Max Switching Current最大转换电流

15A

Max Switching Power最大转换功率

2770VA/240W

Contact Resistance接触电阻

100mΩMax          at 6VDC 1A

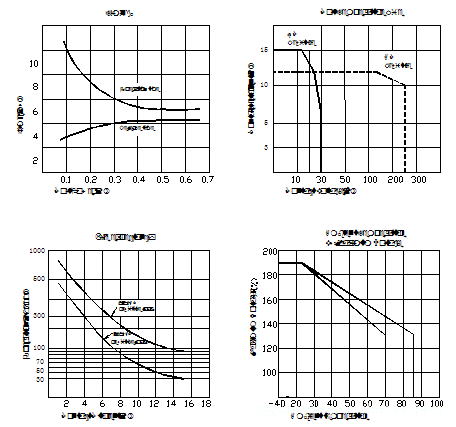

Life Expectancy寿命

Electrical电气寿命:100,000 Operations(at30Operations/minute)

Mechanical机械寿命:10,000,000Operations(at300Operations/minute)

Insulation Resistance绝缘阻值

100MΩMinat 500VDC

Dielectric Strength Between Open Contacts触点间耐压

750VAC(50/60Hz for one minute)

Between Contacts and coil触点与线圈间耐压

1500VAC(50/60Hz for one minute)

Operate Time吸合时间

10ms

Release Time释放时间

5ms

Temperature Range环境温度

-40℃to+85℃

Shock Resistance冲击

Operating Extremes动作极限: 10G

Damage Limits破坏极限: 100G

Vibration Resistance振动

10-55Hz, 1.5mm

Max. switching frequency最大转换频率

Mechanical: 18,000 operations/hr

Electrical: 1,800 operations/hr

Humidity湿度

40-85%

Weight重量

Approx 10g

Safety Standard安全标准

UL  cUL  TÜV   CQC  VDE
