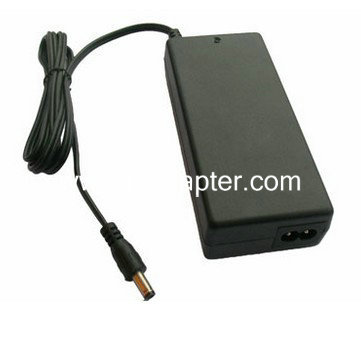

Switching adapter 12V5A

Switching adapter 12V5A
Item No.: FY1205000

 Features/ Functions
Regulated output with low ripple
Power-on LED indicator
Modified and custom designs
Constant output current option
Comply with CEC,MEPS,EuP
Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS

 General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 12 VDC
Output current : 5000 mA
Ripple : 350 mVp-p Max.
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 85 % Min.
Operating temperature: -29℃～+45.5℃
Storage temperature: -40℃～+75℃
Operating relative humidity: 5%～95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25℃
Case dimension: 134X59X31.5mm
AQL: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; NIN 2.5
