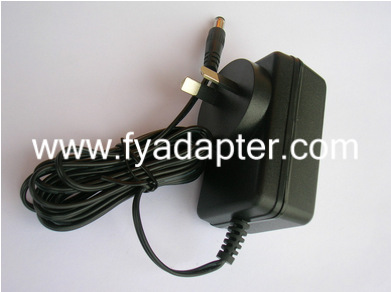

AC switching adapter 12V1A with C-tick
AC switching adapter 12V1A with C-tick
Item No.: FY1201000
Features/ Functions
Regulated output with low ripple
Power-on LED indicator
Constant output current option
Comply with EMPS
Certifications: SAA, C-tick, RoHS
General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 12 VDC
Output current : 1000 mA
Ripple : 250 mVp-p Max.
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 80 % Min.
Operating temperature: -29℃～+45.5℃
Storage temperature: -40℃～+75℃
Operating relative humidity: 5%～95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃
AQL: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; NIN 2.5
