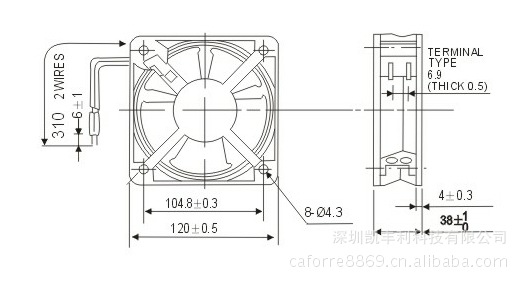

SIZE：120×120×38mm
CONSTRUCTION：
●Die-cast aluminum housing
●Glass fiber reinforced plastic impeller，UL 94V-0 rating
●Impedance protected
●Leader wire is available
OPERATING TEMPERATURE：
Ball Bearing：-30℃to + 75℃
Sleeve Bearing：-10℃to + 70℃
WEIGHT：0.53Kg
技术参数：
规格型号 Model No. | 轴承 Bearing | 电压
Voltage (V) | 频率 Frequency (Hz) | 电流 Current (A) | 输入功率
Input Power (W) | 转速 Speed (RPM) | 风量 Air Flow | 风压 Static Pressure (mmH2O) | 噪音 Noise (dB)-A |
(m3/min) | (CFM) |
KFL12038HA1 | Ball | 110/120 | 50/60 | 0.22/0.18 | 21/18 | 2650/2950 | 2.58/3.20 | 91/113 | 6.35/7.62 | 40/45 |
KFL12038HA1 | Sleeve | 110/120 | 50/60 | 0.22/0.18 | 21/18 | 2650/2950 | 2.58/3.20 | 91/113 | 6.35/7.62 | 40/45 |
KFL12038HA2 | Ball | 220/240 | 50/60 | 0.14/0.12 | 22/21 | 2700/3100 | 2.68/3.25 | 95/115 | 8.38/9.65 | 42/47 |
KFL12038HA2 | Sleeve | 220/240 | 50/60 | 0.14/0.12 | 22/21 | 2700/3100 | 2.68/3.25 | 95/115 | 8.38/9.65 | 42/47 |
KFL12038MA2 | Ball | 220/240 | 50/60 | 0.12/0.11 | 20/19 | 2600/2950 | 2.58/3.20 | 91/113 | 6.35/7.62 | 40/45 |
KFL12038MA2 | Sleeve | 220/240 | 50/60 | 0.12/0.11 | 20/19 | 2600/2950 | 2.58/3.20 | 91/113 | 6.35/7.62 | 40/45 |
KFL12038LA2 | Ball | 220/240 | 50/60 | 0.09/0.08 | 16/15 | 2200/2500 | 2.03/2.25 | 72/80 | 3.56/5.33 | 37/39 |
KFL12038LA2 | Sleeve | 220/240 | 50/60 | 0.09/0.08 | 16/15 | 2200/2500 | 2.03/2.25 | 72/80 | 3.56/5.33 | 37/39 |
KFL12038HA3 | Ball | 380 | 50 | 0.06 | 18 | 2600 | 2.58 | 91 | 6.35 | 40 |
KFL12038HA3 | Sleeve | 380 | 50 | 0.06 | 18 | 2600 | 2.58 | 91 | 6.35 | 40 |
