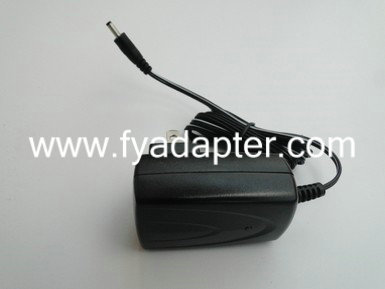

3 cell li-ion battery charger 12.6V0.5A


3 cell li-ion battery charger 12.6V0.5A
Item No.: FY1260500
Features/ Functions
Reverse polarity protection
Continuously monitoring the battery voltage
Constant charging current
Terminating charging once battery is full
With a dual color LED indicator
Comply with ENERGY STAR
Safety standard approvals: UL, CUL, PSE, FCC
General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 7.5~12.6 +/-0.15 VDC
Output current: 0.5A +/-5%
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency : 80% Min.
Temperature: Case 75 ℃ Max.
Operating temperature: -29℃ ~ +45.5℃
Storage temperature: -40℃ ~ +75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short-circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25℃
AQL: MIL-STD-105D II CRI 0; MAJ 0.25; NIN 2.5
Warranty: 2 years
Application: 3 Cell Li ion battery pack
