《安普博讯》0525A型号，导体是采用八芯全铜包芯对绞组合而成，导体线径达0.5，米数达250米传输距离可在90米~100米之间，由于传输数据高，性能稳定,是中高网络工程的专用线

产品特性：

符合国际TIA/EIA-568B.2.-1和ISO/IEC 11801五类线缆标准

满足国家YD/T 1019-2001标准

 产品应用：

支持数字、语音、数据、和视频信号和满足高端需求的应用

支持100BAST、千兆以太网、ATM155Mbit/s、多媒体

型号:CLA04-UC5E,标准长度:305米,适用范围:10BASE-T网路(IEEE802.3),100Mbps(兆比特每秒),100BASE-T4网路(快速以太网),100BASE-T(快速以太网)

产品的生产依据ISO/IEC11801、EIA/TIA-568-B和YD/T 1019-2001，通过信息产业部有线通信产品质量监督检验中心检验，性能完全满足并优于上述标准。本系列产品通过了UL认证。合理的电缆结构设计和高质量的原材料，使其具有优秀的数据传输性能：低的传输延迟和误码率，以及较高的抗电磁干扰性，确保链路满足三类传输性能，最高传输频率为16MHz。本系列产品适用于综合布线网络ISDN、快速以太网的副干线布线和设备间布线。标准包装是305m，但根据市场和用户需求，可以提供其他包装

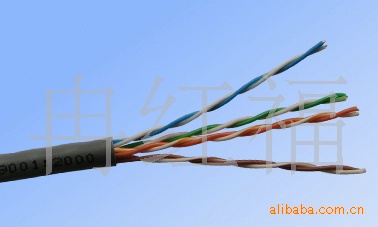

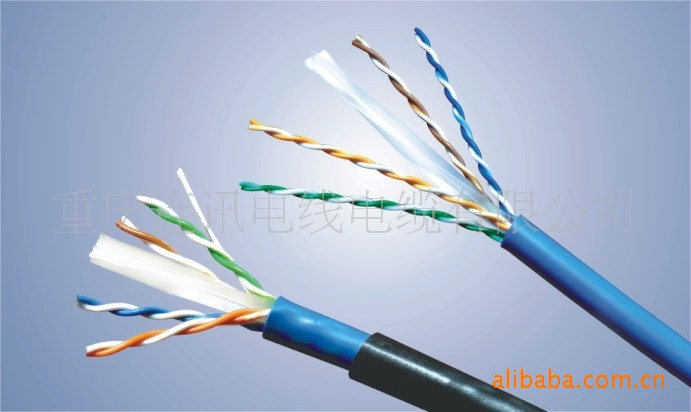

soft annealed solid oxgenless bare copper conductor Φ0.57mm or 0.60mm

● Insulation: HDPE Φ1.0mm

● Jacket: PVC or LSZH

Reference  standards: UL758, UL1581, UL444, TIA/EIA-568, CSA C22.2, ISO / IEC 11801, YD/T1019-2001

  Uses:                                                                                                                         ● digital communication with the level of twisted cables, used in building an integrated cabling system in the work area leads to side with the transfer of communication between the cabling between the MDF, as well as an integrated cabling system for residential user of communication leads ended with line between the aircraft wiring, high-speed local area network used to meet the broadband channel in the 250MHz communications, wire cross section separated from the design to enhance near-end crosstalk (NEXT) and impedance performance, enhance the bandwidth and signal to noise ratio margin. Wiring length of the standard 90 meters, the T568A or T568B termination means to connect, share five, five ultra-connected parts. ANSI/TIA/EIA-568-B color-coded according to standard color.                                                               ● All UTP Ethernet protocol 4.8Gbps data rate applications, such as: 1000BASE-T, 1000BASE-TX, 100BASE-T4, 100BASE-T2, 10BASE-T                                                                                                                           ● all the protocol data rate of 4.8Gbps of ATM                                                                                                                       ● Based on UTP 100MbpsTD-PMD                                                                                                                       ● broadband video (550MHz with 77 channels
