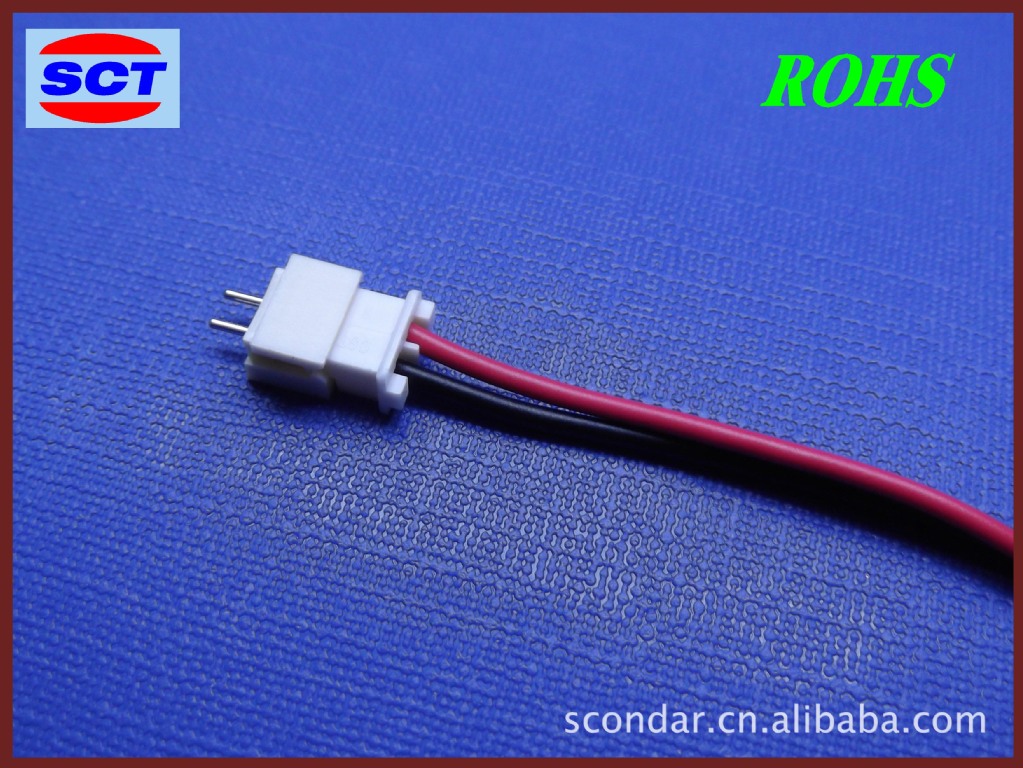

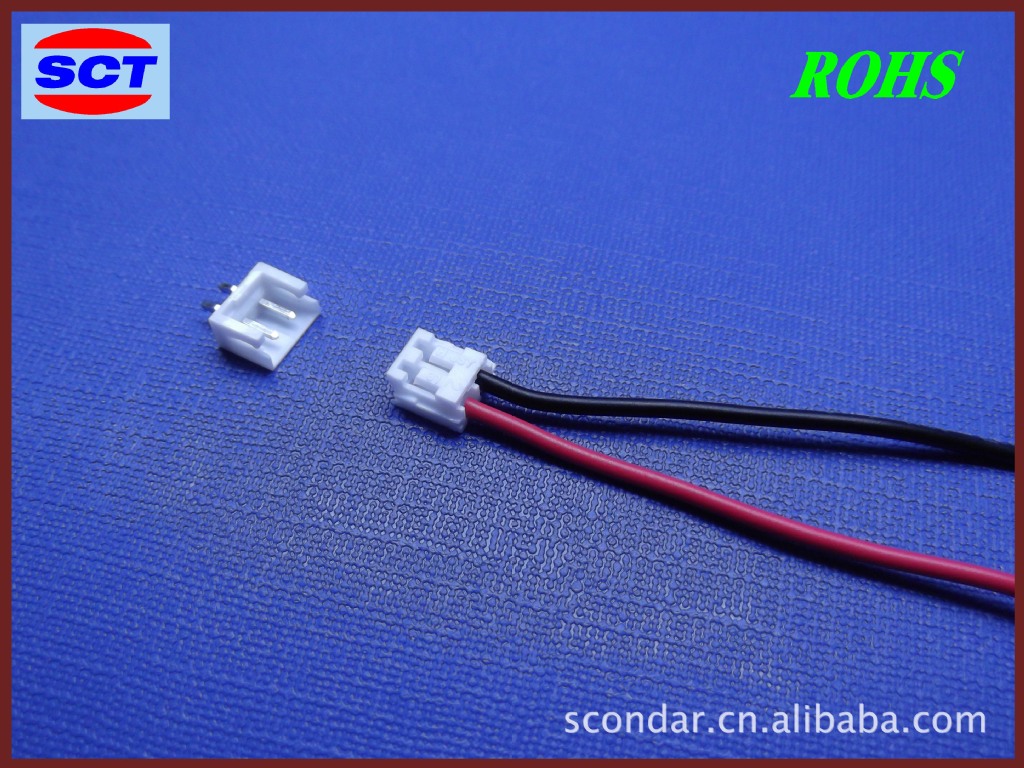

JST EH2.5 2P连接器

Specifications :
Current Rating : 2A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~+85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1000V AC/minute
*Contact SCT2511 for detals*

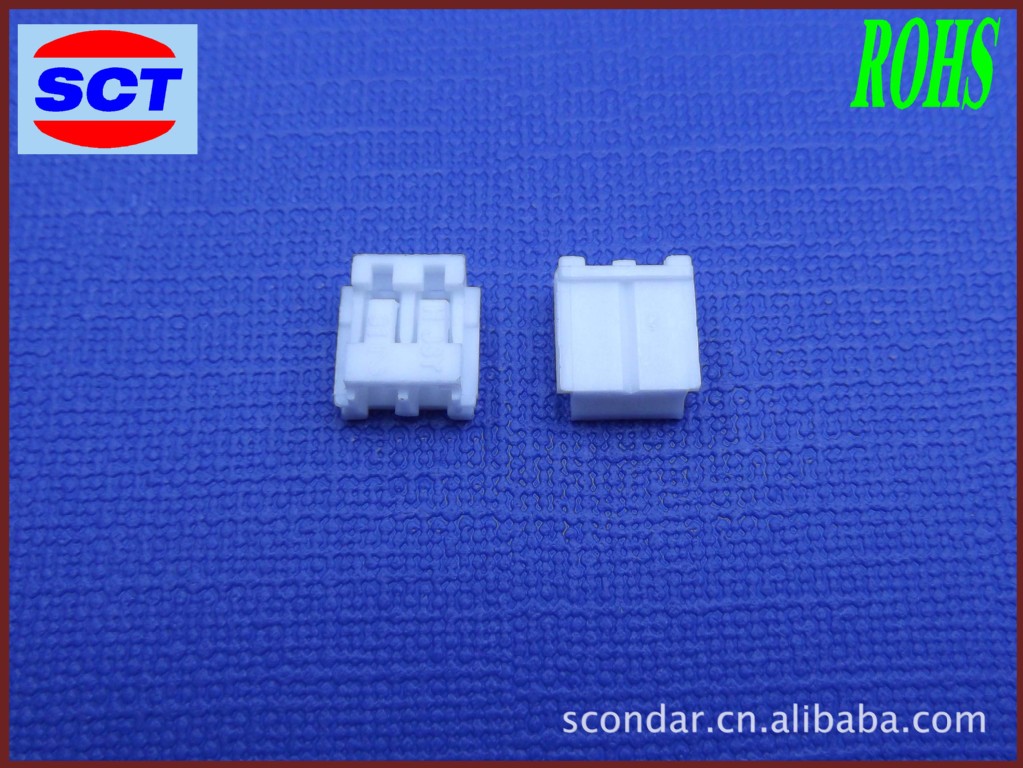

Housing
Part No:SCT2511H-
Poles:2-16P.
Material:Nylon66 UL94V0
Packing Q'TY:1000pcs/bag
Mates With SCT2511T  Series Terminal

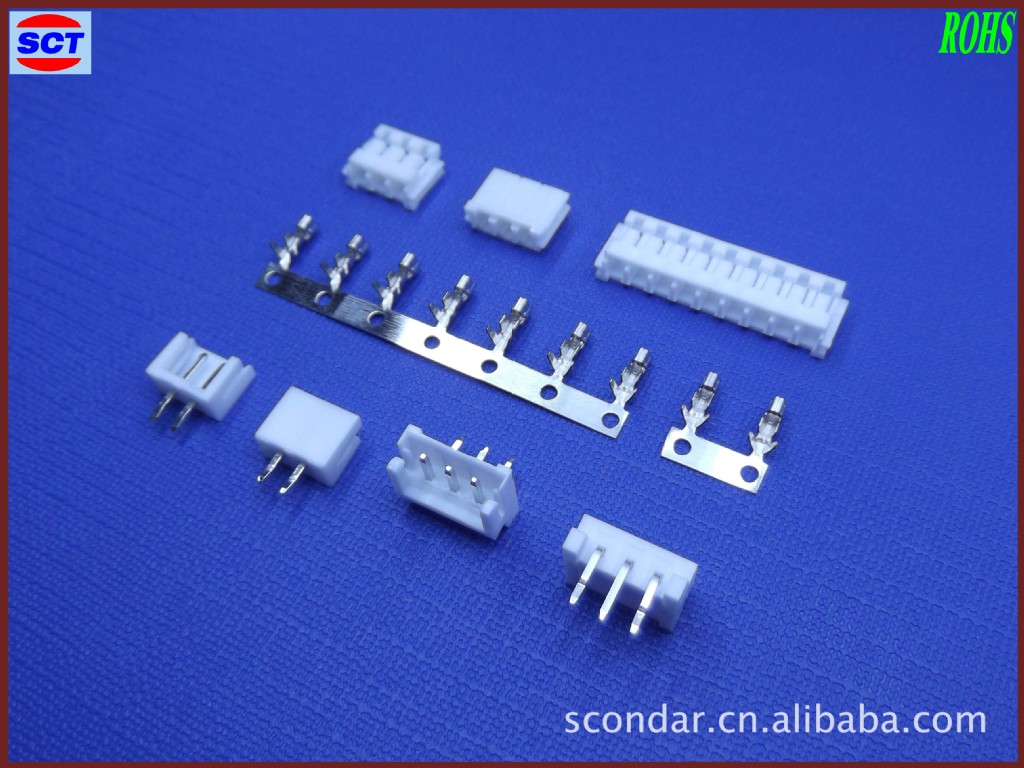

Terminal
Part No:SCT2511T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.40mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT2511H- Series Housing

Wafer (DIP  Type)
Part No:SCT2511WV/WR-NP
Poles:2-16P
Material:Nylon66 UL94V-0
Packing Q'TY:1000pcs/box
Mates With SCT2511H- Series Single Row Housing
