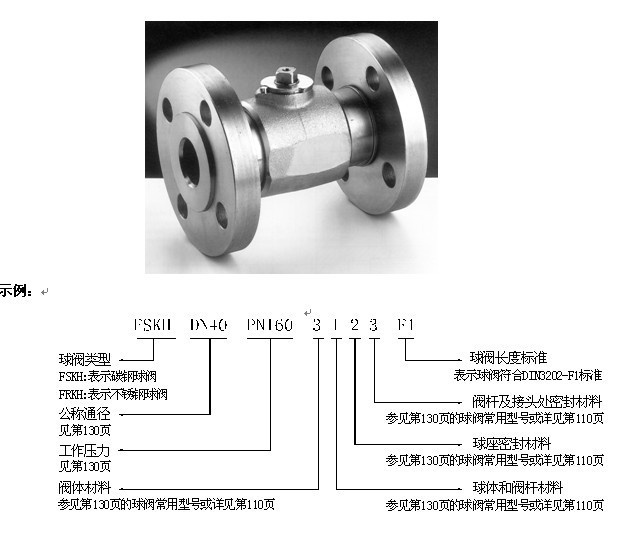

FSKH碳钢带活法兰中高压球阀

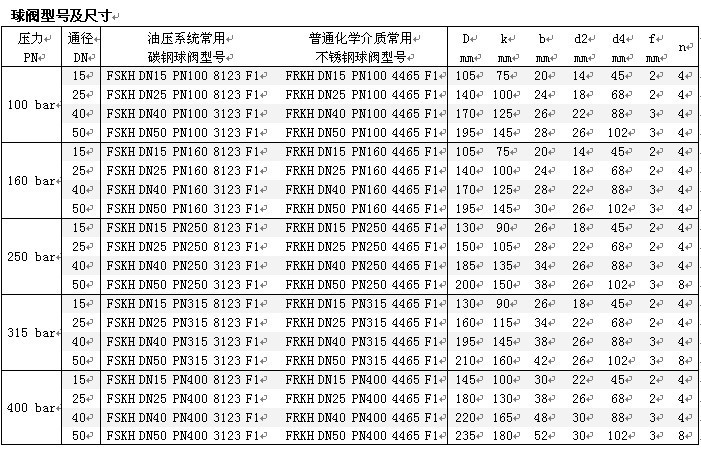

阀体尺寸
|
通径
DN |
实际内径
LW |
L1
mm |
L
mm |
B
碳钢阀体 |
B
不锈钢阀体 |
H
mm |
H1
mm |
H2
mm |
H4
mm |
M |
SW
mm |
|
15 |
15 |
48 |
130 |
38 |
48.5 |
62 |
46 |
12 |
19 |
M6 |
12 |
|
25 |
24 |
65 |
160 |
58 |
63.5 |
79 |
63 |
12 |
28 |
M6 |
14 |
|
40 |
38 |
85 |
200 |
83 |
83 |
111 |
92 |
13.5 |
41.5 |
M8 |
17 |
|
50 |
48 |
100 |
230 |
100 |
100 |
130 |
111 |
13.5 |
50 |
M8 |
19 |
