迈格诺科VCR母接头
昆山迈格诺科洁净材料有限公司
中国 苏州
产品属性
图文详情
品牌推荐
品牌/型号
迈格诺科
品牌
迈格诺科
型号
英寸
| 适用流体： | 超纯气体 | 加工定制： | 否 |
| 材质： | 316L | 管道口径： | 6.35（mm） |
| 品牌： | MAGNOX | 使用温度范围： | -20至100（℃） |

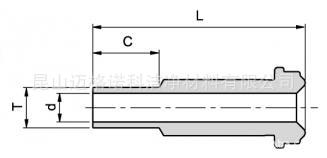

Gland Short without Shoulder
| Part Description |
L | C | d | T Tube OD | W.T. | |||||
| in | mm | in | mm | in | mm | in | mm | in | mm | |
| 1/8-W-E | 1.08 | 27.43 | 0.75 | 19.05 | 0.07 | 1.86 | 1/8 | 0.028 | ||
| 1/4-W-H | 1.10 | 27.94 | 0.75 | 19.05 | 0.18 | 4.56 | 1/4 | 0.035 | ||
| 1/4-W-E | 1.10 | 27.94 | 0.75 | 19.05 | 0.18 | 4.56 | 1/4 | 0.035 | ||
| 1/4-W-U | 1.10 | 27.94 | 0.75 | 19.05 | 0.18 | 4.56 | 1/4 | 0.035 | ||
| 3/8-W-H | 1.12 | 28.40 | 0.75 | 19.05 | 0.30 | 7.73 | 3/8 | 0.035 | ||
| 3/8-W-E | 1.12 | 28.40 | 0.75 | 19.05 | 0.30 | 7.73 | 3/8 | 0.035 | ||
| 3/8-W-U | 1.12 | 28.40 | 0.75 | 19.05 | 0.30 | 7.73 | 3/8 | 0.035 | ||
| 1/2-W-H W.T=.065 | 1.12 | 28.40 | 0.75 | 19.05 | 0.37 | 9.40 | 1/2 | 0.065 | ||
| 1/2-W-H | 1.12 | 28.40 | 0.75 | 19.05 | 0.40 | 10.20 | 1/2 | 0.049 | ||
| 1/2-W-E | 1.12 | 28.40 | 0.75 | 19.05 | 0.40 | 10.20 | 1/2 | 0.049 | ||
| 1/2-W-U | 1.12 | 28.40 | 0.75 | 19.05 | 0.40 | 10.20 | 1/2 | 0.049 | ||
| 6M-W-H | 1.16 | 29.46 | 0.75 | 19.05 | 0.16 | 4.00 | 6 | 1.00 | ||
| 6M-W-E | 1.16 | 29.46 | 0.75 | 19.05 | 0.16 | 4.00 | 6 | 1.00 | ||
| 8MM-W-H | 1.16 | 29.46 | 0.75 | 19.05 | 0.24 | 6.00 | 8 | 1.00 | ||
| 8MM-W-E | 1.16 | 29.46 | 0.75 | 19.05 | 0.24 | 6.00 | 8 | 1.00 | ||
| 10MM-W | 1.16 | 29.46 | 0.75 | 19.05 | 0.31 | 8.00 | 10 | 1.00 | ||
| 12M-W-E | 1.16 | 29.46 | 0.75 | 19.05 | 0.39 | 10.00 | 12 | 1.00 | ||
