厂家直销。C型钢
徐州市双盛达彩钢制品有限公司
中国 徐州
产品属性
图文详情
品牌推荐
品牌/型号
双盛达
用途
厂房
材质
q235

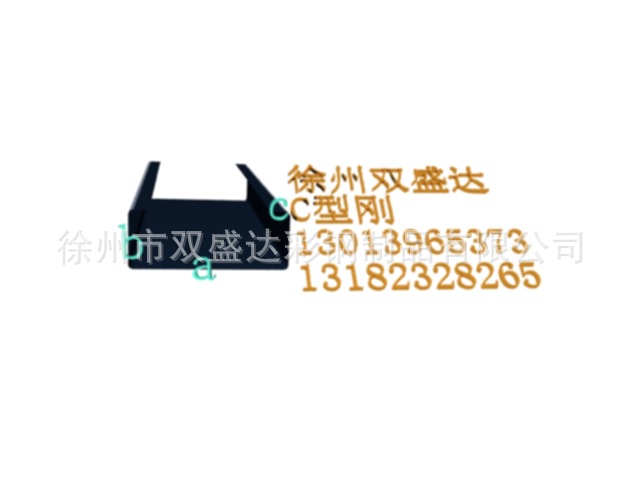

| 双盛达C型钢尺寸表 | |||||||
| 序号 | a | b | c | t | L | 展开宽度Coil width | |
| 1 | 80 | 40 | 15 | 3.0 | 172 | ||
| 2 | 100 | 40 | 15 | 3.0 | 40 | 192 | |
| 100 | 50 | 20 | 3.0 | 40 | 222 | ||
| 100 | 60 | 20 | 3.0 | 40 | 242 | ||
| 3 | 120 | 50 | 20 | 3.0 | 50 | 242 | |
| 120 | 60 | 20 | 3.0 | 50 | 262 | ||
| 4 | 140 | 50 | 20 | 3.0 | 60 | 262 | |
| 140 | 60 | 20 | 3.0 | 60 | 282 | ||
| 5 | 160 | 60 | 20 | 3.0 | 80 | 302 | |
| 160 | 70 | 20 | 3.0 | 80 | 322 | ||
| 6 | 180 | 60 | 20 | 3.0 | 100 | 322 | |
| 180 | 70 | 20 | 3.0 | 100 | 342 | ||
| 7 | 200 | 60 | 20 | 3.0 | 120 | 342 | |
| 200 | 70 | 20 | 3.0 | 120 | 362 | ||
| 8 | 220 | 70 | 20 | 3.0 | 120 | 382 | |
| 220 | 80 | 20 | 3.0 | 120 | 402 | ||
| 9 | 240 | 70 | 20 | 3.0 | 120 | 402 | |
| 240 | 80 | 20 | 3.0 | 120 | 422 | ||
| 10 | 250 | 70 | 20 | 3.0 | 150 | 412 | |
| 250 | 80 | 20 | 3.0 | 150 | 432 | ||
| 11 | 300 | 70 | 20 | 3.0 | 150 | 462 | |
| 300 | 80 | 20 | 3.0 | 150 | 482 |
| C型钢理论重量表 | |||
| 型号 | 每米重（kg) | 型号 | 每米重（kg) |
| C80×50×20×2.25 | 3.886 | C180×60×20×3.00 | 8.007 |
| C80×50×20×2.50 | 4.318 | C180×70×20×3.00 | 8.478 |
| C80×50×20×2.75 | 4.749 | C180×80×20×3.00 | 8.949 |
| C80×50×20×3.00 | 5.181 | C200×50×20×2.50 | 6.673 |
| C100×50×20×2.25 | 4.239 | C200×60×20×2.50 | 7.065 |
| C100×50×20×2.50 | 4.710 | C200×70×20×2.50 | 7.458 |
| C100×50×20×2.75 | 5.181 | C200×80×20×2.50 | 7.850 |
| C100×50×20×3.00 | 5.652 | C200×50×20×3.00 | 8.007 |
| C120×50×20×2.25 | 4.592 | C200×60×20×3.00 | 8.478 |
| C120×50×20×2.50 | 5.103 | C200×70×20×3.00 | 8.949 |
| C120×50×20×2.75 | 5.613 | C200×80×20×3.00 | 9.420 |
| C120×50×20×3.00 | 6.123 | C220×50×20×2.50 | 7.065 |
| C140×50×20×2.50 | 5.495 | C220×60×20×2.50 | 7.458 |
| C140×60×20×2.50 | 5.888 | C220×70×20×2.50 | 7.850 |
| C140×50×20×3.00 | 6.594 | C220×80×20×2.50 | 8.243 |
| C140×60×20×3.00 | 7.065 | C220×50×20×3.00 | 8.478 |
| C160×50×20×2.50 | 5.888 | C220×60×20×3.00 | 8.949 |
| C160×60×20×2.50 | 6.280 | C220×70×20×3.00 | 9.420 |
| C160×70×20×2.50 | 6.673 | C220×80×20×3.00 | 9.891 |
| C160×50×20×3.00 | 7.065 | C240×50×20×2.50 | 7.458 |
| C160×60×20×3.00 | 7.536 | C240×60×20×2.50 | 7.850 |
| C160×70×20×3.00 | 8.007 | C240×70×20×2.50 | 8.243 |
| C180×50×20×2.50 | 6.280 | C240×80×20×2.50 | 8.635 |
| C180×650×20×2.50 | 6.673 | C240×50×20×3.00 | 8.949 |
| C180×70×20×2.50 | 7.065 | C240×60×20×3.00 | 9.420 |
| C180×80×20×2.50 | 7.458 | C240×70×20×3.00 | 9.891 |
