13mm间距电源连接器性能参数：

◎ Rated current and voltage :
Current rating: When applying AWG #24 For 1A
Voltage rating:3000V AC,DC
◎ Dielectric Withstanding Voltage:
5000V AC 50~60 Hz for one minute
◎ Contact Resistance : ＜10mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant
◎ Halogen-Free

12mm间距电源连接器性能参数：

◎ Rated current and voltage :
Current rating: When applying AWG #22 wire
1A , 600V AC DC(r.m.s)
◎ Voltage rating:3500V AC,DC
◎ Dielectric Withstanding Voltage:
1800V AC for one minute
◎ Contact Resistance : ＜10mΩ
◎ Insulation Resistance : ＞1000MΩ
◎ Operating Temperature : -25℃~85℃
◎ RoHS Compliant
◎ Halogen Free

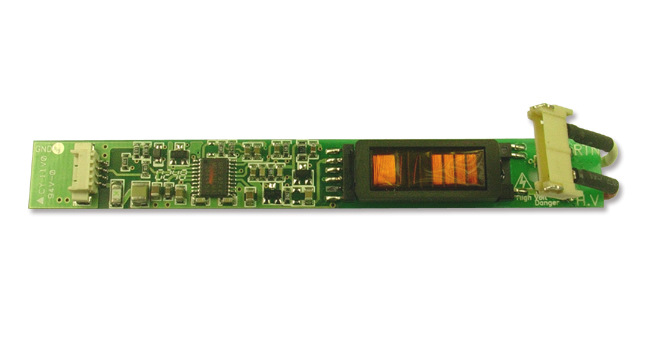

以下为产品应用展示：

另外一端为本公司线对板连接器CI44系列产品，如下所示：

详情联系我司。
