东莞8kw推盘高周波熔断机
东莞市新高机电设备有限公司
塘厦镇石潭埔工业区创兴路1号
产品属性
图文详情
品牌推荐
类型
热合机
包装材料
PET，APET，PVC，PE，GAG，PU，EVA等
功率
8（Kw）kW
加工定制
是
重量
1（kg）kg
外形尺寸
1400*700*2000（mm）mm

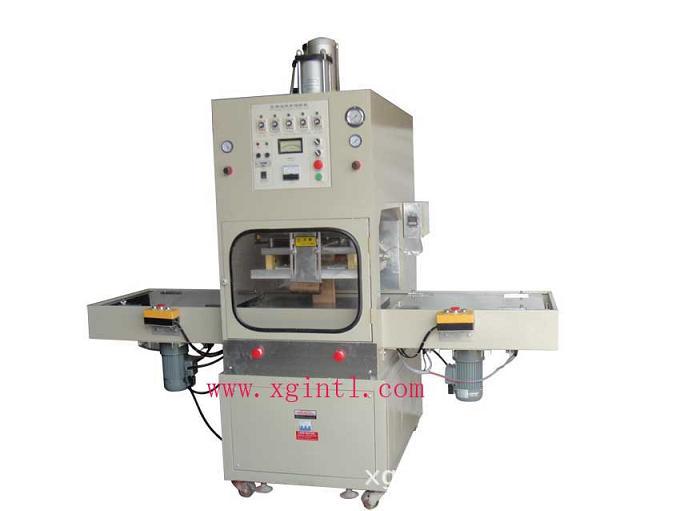

| 自动滑台高周波同步熔断机 Automatic slipway high frequency welding and cutting machine | ||
| 产品特点 function | ||
| ◆处理PET/APET/PETG等环城公路 类材料、皮革、皮布复合材料费产 品销售的熔接裁断，成品熔接均匀美观，裁断光滑整洁； | ||
| ◆日本东芝真空电子管，输出稳定可靠，1-10吨空压，油压增压装置， 熔接、切断一次OK，快速准确； | ||
| ◆美国NL-5557高灵敏火花保护电路，可自动切断高周波，抑制火花； | ||
| ◆设有高周波频率稳定的器及高周波屏蔽装置，将高频干扰降到最低； | ||
| ◆设有手动高节模具 系统和卡槽式装模结构，装模对位方便快速； | ||
| ◆四点式水平调工结构，架模调模简便省时； | ||
| ◆自动过渡保护系统，增加真空电子管使用寿命，保护模具； | ||
| ◆台湾进口汽缸，确保长期高精度动作； | ||
| ◆全套优质进口电子元器件组装，品质优良，性能稳定。 | ||
| ◆Provides even fusing and cutting for PET/APET/PETG,leather, cloth and composite materials ,the finished products are equality and slinky, the surface is smooth. | ||
| ◆Japan Toshiba vacuum electron tube, powerful output, 1-10 ton air pressure oil pressure improved instrument,provides welding and cutting at one time ,fast and accurate. | ||
| ◆American NL-5557 high sensitive sparkle protection tube and circuit, automatically cuts off the high frequency, restrain the spark. | ||
| ◆High frequency stabilizer and shielding device minimizes high frequency interference. | ||
| ◆Manual mould adjusting system and cardcage die setting system provide easiness of opeeration. | ||
| ◆4 point horizontal adjusting structure is easy and quick for the mould adjusting. | ||
| ◆Overflow protection prolongs the tube life span and protect the mould. | ||
| ◆Cylinder from Taiwan, ensures long time and high precision movement. | ||
| ◆Whole-set imported superior quality elements from USA,wnsure excellence in quality and perfomance. | ||
| 技术规格 Specification | ||
| Model 机 型 | XG—5KW | XG—8KW |
| Power 高周出力 | 5000W | 8000W |
| Input voltage 输入电压 | AC380v ,3∮,5Line 三相五线 | |
| Input power 输入功率 | 8KVA | 15KVA |
| Frequency 振荡频率 | 27.12MHz | |
| Rectifier 整流器 | SILICON DIODE 矽二极体 | |
| Oscillation tube 振荡管 | 7T85RB | 7T69RB |
| 防火花闸流火花管 | NL-5557 | |
| Press style 加压方式 | 空油压直动式 | |
| Gap of electrodes 上下电极间隔 | 250mm | |
| Top plate size 上部定盘尺寸 | 300mmx450mm | 350mmx550mm |
| Size of plate 定盘尺寸 | 350mmx500mm | 400mmx600mm |
| Scale of tempreture 温控 | 30-300℃可调Adjustable | |
| Size (LxWxH) 外形尺寸 | 1400mmx700mmx2000mm | |
| Net welght 净重 | 800KG | 1000KG |
| 适用范围 Suitable scope | ||
| ◆PET/APET/PET等环保料双面吸塑泡壳包装； ◆鞋类配件、商标、手表带、皮带； | ||
| ◆同时熔断纸板用吸塑（牙刷包装） ◆CD袋等环保料折盒压线； | ||
| ◆同时熔断汽车合成皮椅、遮阳板等； ◆大尺寸布料皮革压花切边； | ||
| ◆各种高周波材料费熔接及熔断 | ||
| ◆Double faced environmental-protect plastic shell wrap page such as PET/APET/PET .. | ||
| ◆Synchronization welding and fusing the paper block and plastic(tooth brush package) | ||
| ◆Synchronization welding and fusing leather chair of the cars ,adumbal board. |
