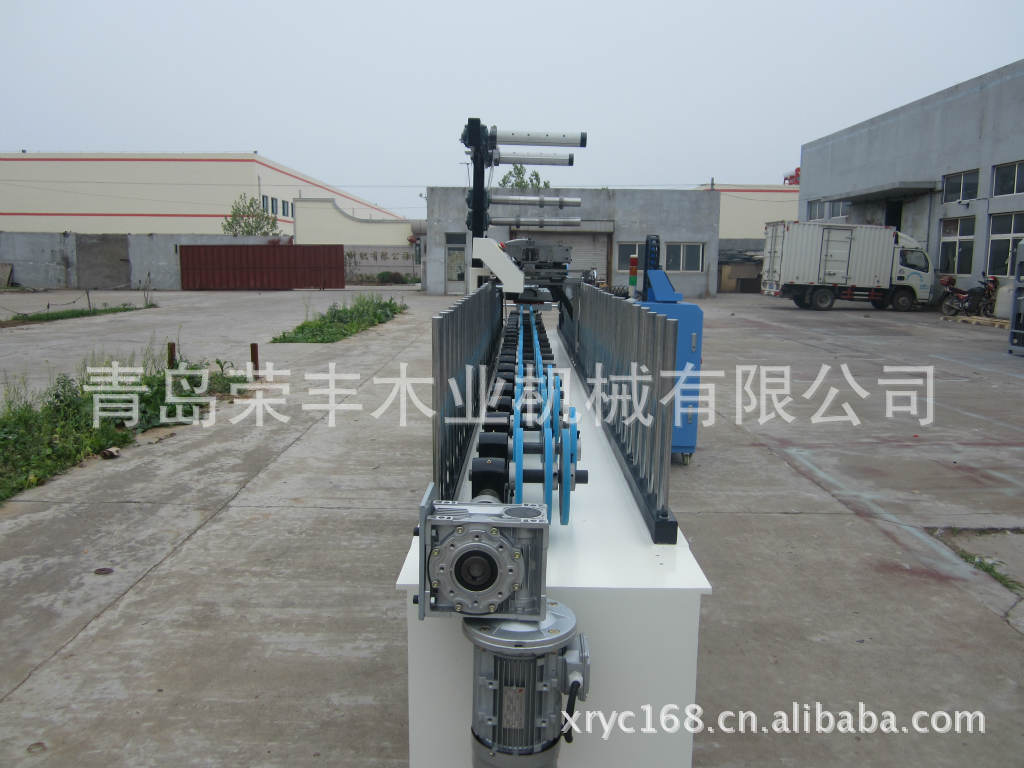

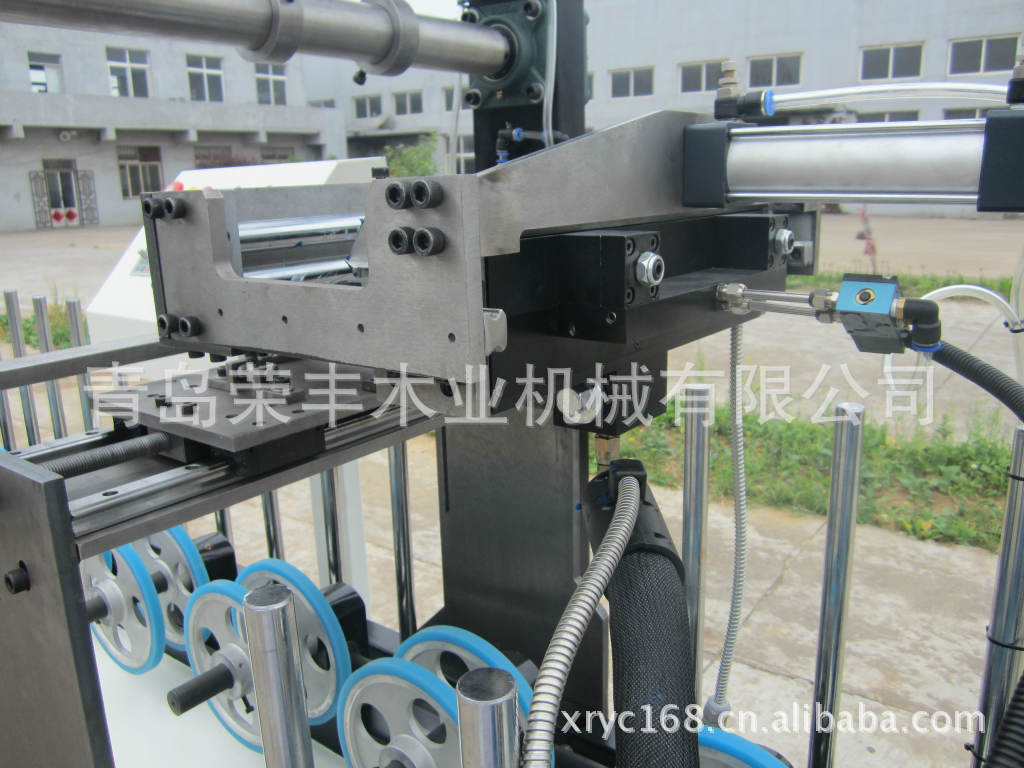

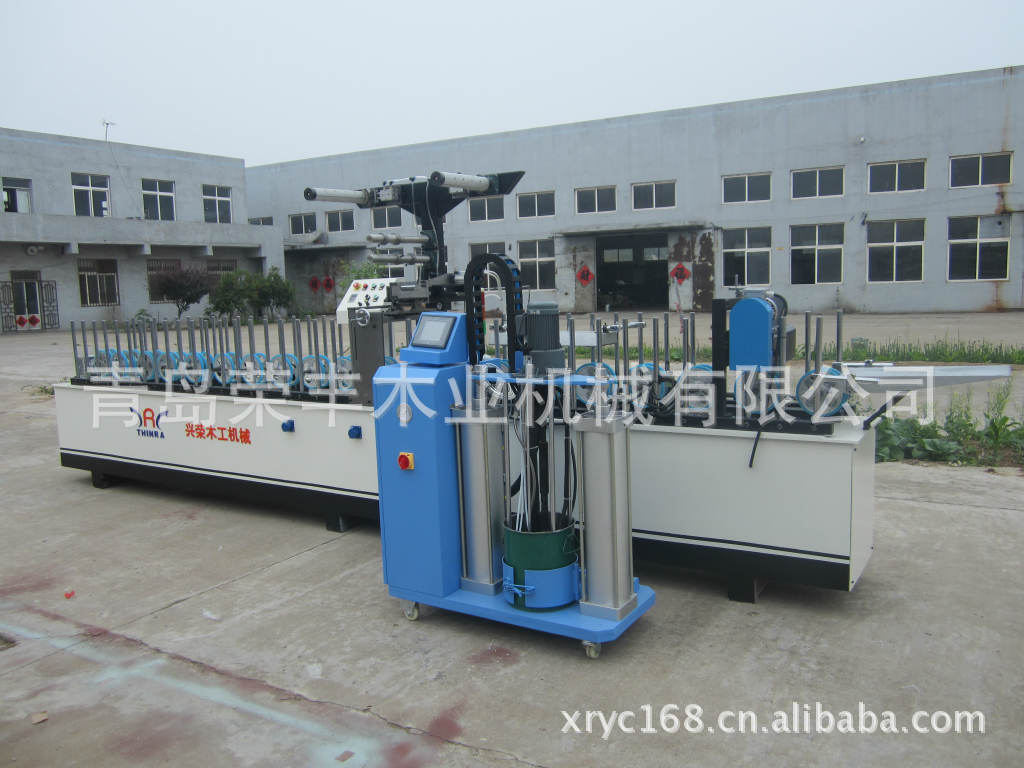

XRBL300-A多功能包覆机主要利用压轮对型材工件截面轮廓逐点包络贴压成形的基本原理,将各种装饰材料贴覆于工作表面。配备冷热胶两套涂胶系统,具备冷然胶两种机型的功能,可实现PVC膜、木皮、装饰纸等装饰材料的贴覆。自动纠偏装置可以在不停机的状态下随时调整装饰膜的位置,大大降低了废品率。适用于实木、密度板、铝合金、塑钢、木塑及其他材料的表面包覆。可根据客户需要,加装辊涂系统、修边机构、切断机构、喷涂机构等选配装置。
型号 Model | XRBL300-A |
最大包覆宽度 Max.wrapping width | 300mm |
型材最大高度 Max.height of profiled base material | 80mm |
最小加工长度 Min.processing length | 600mm |
型材线速度 Feeding speed of profiled base material | 2-23m/min |
气源压力 Pressure of air supply | 0.6-0.8kw |
总功率 Total power | 10.8kw |
外形尺寸 Figure dimension | 6232*1000*2150mm |
设备重量 Weight | 1840kg |
XRBL300-A Multi-functional Wrapping Machine can coat the workpiece with varied decorative material by using the basic principle that pressing wheels press the points of the section profile one by one . This nachine is equipped with cold and hot two sets of roller gluer system, so that it has two functions of XRBL300-B and XRBL300-C to realize coating natural wood, MDF, aluminum alloy, plastic-steel, wood-plastic material and so on with PVC film, wood veneer, decorative paper, etc. This machine can be equipped with roller gluer system, edge-cutting device, cutting device, spraying devece, etc in addition according to the requirements of customers.
