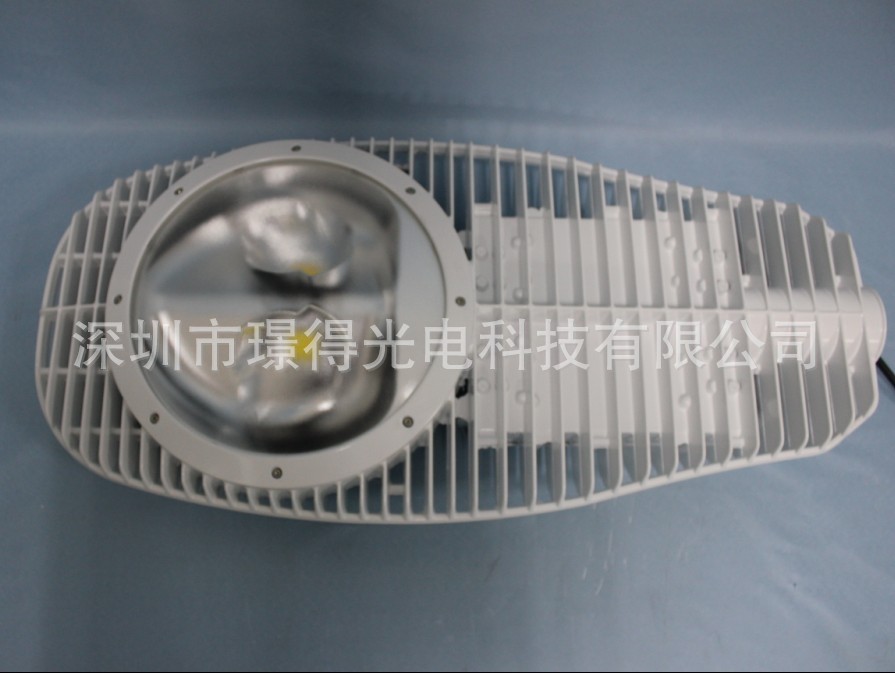

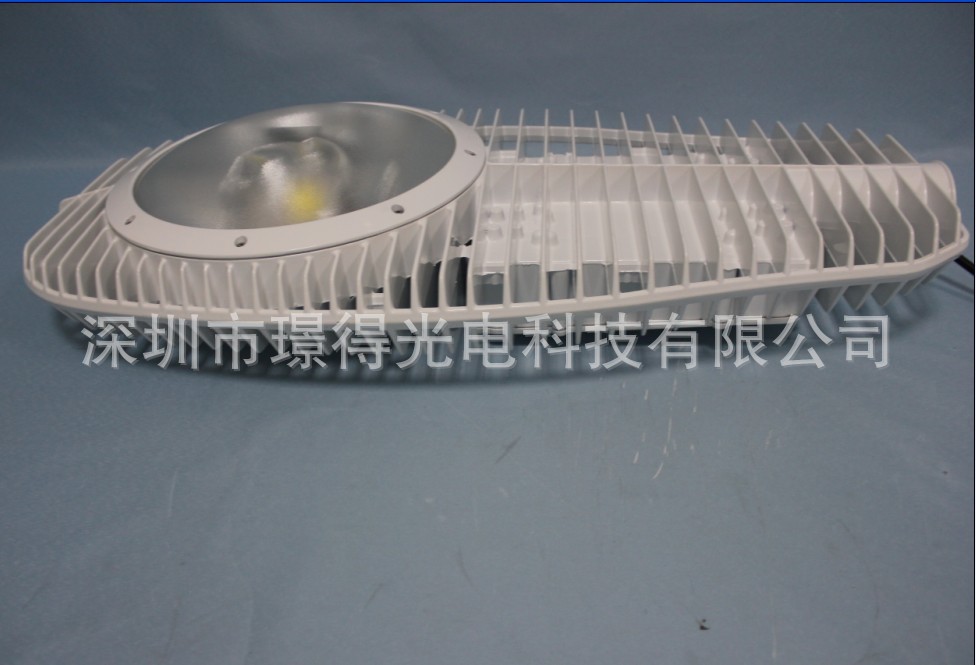

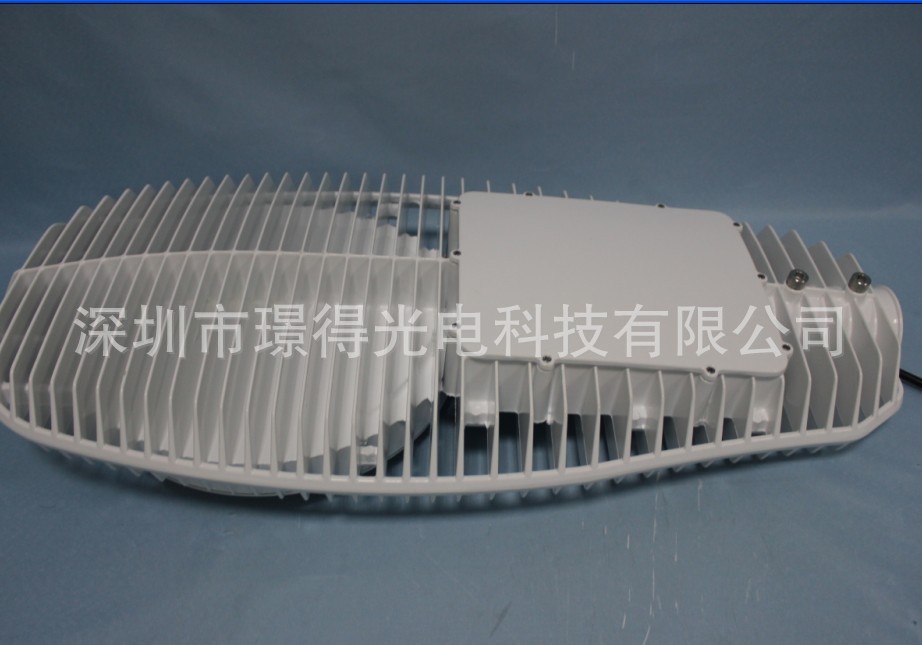

| 80W路灯灯技术参数 (80W LED street linght mian technicai parameters) |
产品型号 Product model
) | KD-RS760-160W | | |
| 输入电压 Input Voitage | AC85-265V | | |
| 电源频率 Freqency range | 50HZ-60HZ | | |
| 总谐波失真 Total Ha rmnic distiortion | <9% | | |
| 功率因数 Power factor | >0.95 | | |
| 电源效率 Power efficency | >87% | | |
| LED工作电压 working voltage | DC30-DC36V | | |
| LED的数量 LED NO. | 2PC | | |
| LED功耗 LED consumption | 136W | | |
| 系统总功率 Systen consumption | 156W | | |
| LED发光效率 LED luminous effciency | 85LM/W | | |
| LED灯具的初始光通量 LED lnitial flux | WW | 11500LM | | |
| PW | 13000LM | | |
| CW | 11800LM | | |
| 灯具效率 | >91% | | |
| 平均照度 Average llluminance | 高度 height: 8M | 33.5LUX | | |
| 高度 height: 10M | 30.5LUX | | |
| 高度 height: 12M | 28.5LUX | | |
| 光斑面积 llluminance area | 高度 height :8M | 28*12M | | |
| 高度 height :10M | 32*13M | | |
| 高度 height :12M | 36*15M | | |
| 照度均匀度 llluminance uniformity | >0.6 | | |
| 相关色温 Color rendering index | WW | 2700K-4000K | | |
| PW | 4000K-6000K | | |
| CW | 6000K-7000K | | |
| 显色指数 Color rendering index | WW | RA>68 | | |
| PW/CW | RA>75 | | |
| 配光曲线 linght distribution | 对称式/矩形光斑 Classical symmetry/Rectangle of light stain | | |
| 配光方式 Light design | LED+反光罩二次配光 LED+The cover of the second match to light | | |
| LED节点温度 junction temperature | <80度 | | |
| 工作环境温度 Working temperature | ’-40℃～55℃ | | |
| 储存环境温度 Storage temperature | ’-25℃～65℃ | | |
| 防护等级 IP grade | IP65 | | |
| 光源使用寿命 working life-span | 50000H | | |
| 电源线 Cord | 1m㎡三芯线 Three core cord | | |
电源线连接Cord connecting
| 棕色 Brown | L火线 Line | | |
| 蓝色 Blue | N零线 Zero line | | |
| 黄绿色 Yellow | G地线 To line | | |
| 净重 NW | 12.5KG | | |
| 毛重 GW | 13.5KG | | |
| 包装尺寸 Package size | 800*180*370 | | |
| 灯头外壳颜色 The color of the lamp shell | 白色 White | | |
| 认证 Certificate | CE,ROHS,IP65 | | |
