SCT2005 Series  (JAE2.0-Pitch2.0mm  Wire to Board Connector )
Specifications :
Current Rating : 1A AC,DC
Voltage Rating : 200V AC,DC
Temperature Range : -25 deg C ~+85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 800V AC/minute
*Contact SCT2005 for detals*

Housing
Part No:SCT2005H-
Poles:2-16P.
Material:Nylon66 UL94V0
Packing Q'TY:1000pcs/bag
Mates With SCT2005T  Series Terminal

Terminal
Part No:SCT2005T
Thickness:0.20mm
Material:Phosphor bronze
Finish:Tin Plated
Wire Range:AWG#24-#28
Insulation O.D. : 1.30mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT2005H- Series Housing

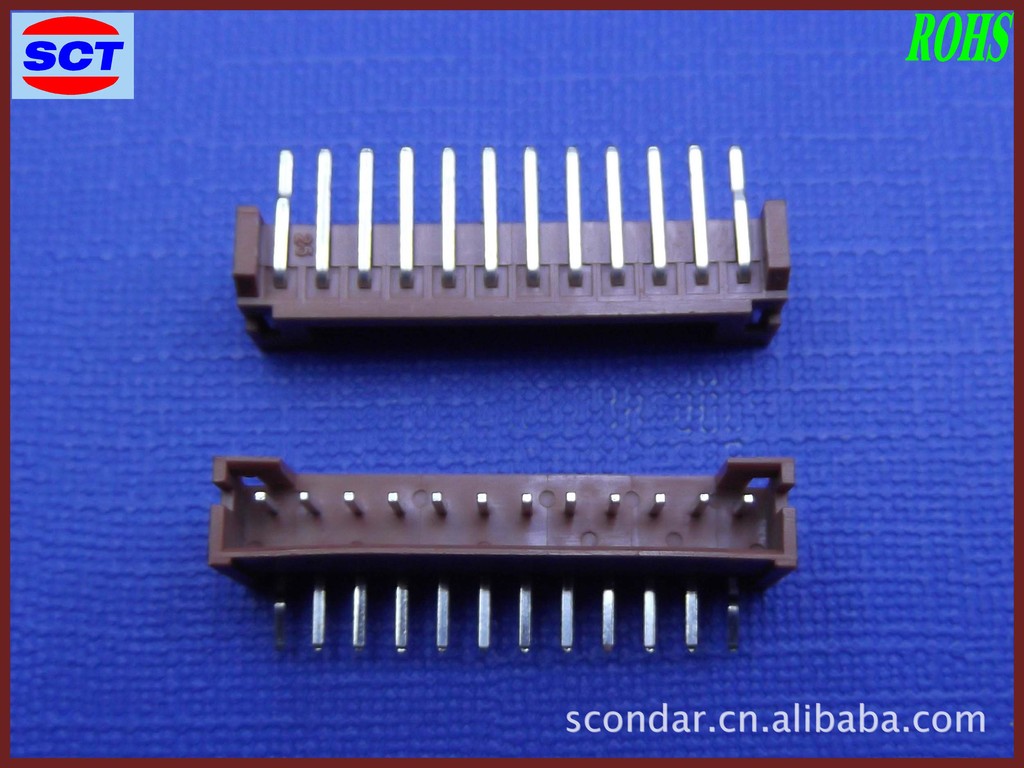

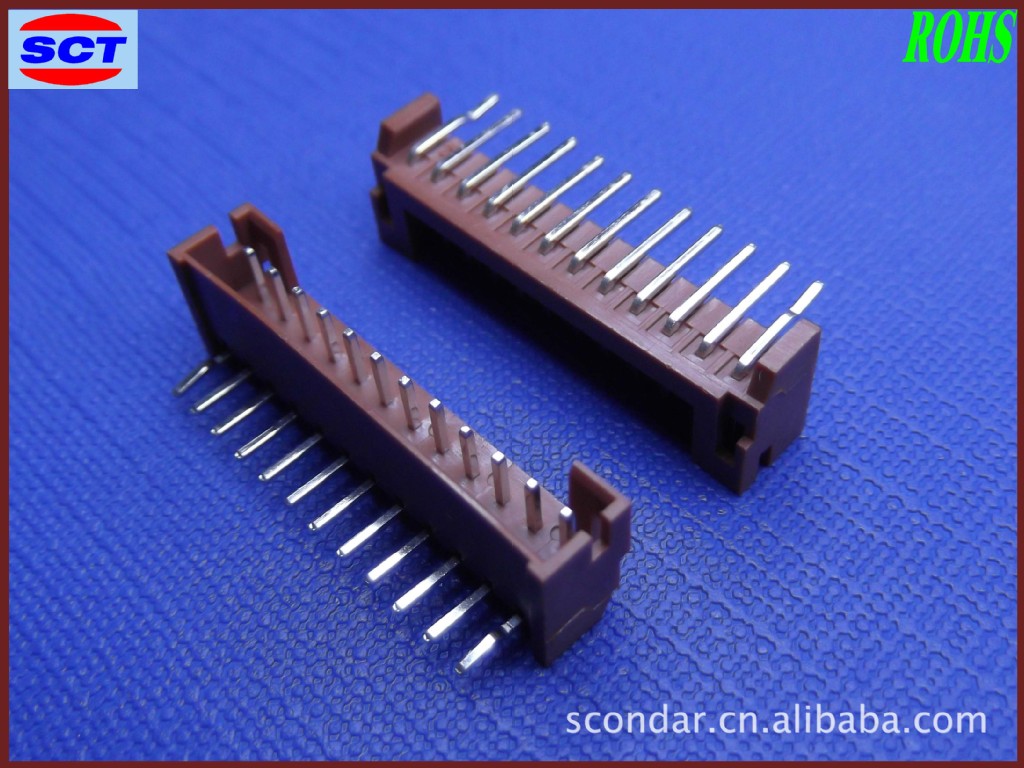

Wafer (DIP   Type)
Part No:SCT2005WV/WR-NP
Poles:2-16P.
Material:Nylon6T UL94V-0
Packing Q'TY:1000pcs/box
Mates With SCT2005H- Series Single Row Housing
