供应不锈钢闸阀 法兰闸阀 闸阀 不锈钢阀门 厂家直销
不锈钢闸阀 |
| 应用规范
1、设计制造按GB12234-89
2、结构长度按GB12221-89
3、法兰尺寸按JB/T79-94
4、阀门检查和试验按GB13927 性能规范 型号 | 公称压力
(MPa) | 实验压力 | 工作温度(℃) | 适用介质 | 强度水（MPa） | 密封（水）空气（MPa） | 低压密封空气（MPa） | ZAH-16C
Z41W-16P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤200 | 硝酸类 | Z41W-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | 醋酸类 | Z41W-40P(R) | 4.0 | 6.0 | 4.4 | 0.6 | ≤200 | 硝酸类 | Z41W-60P(R) | 6.4 | 9.6 | 7.0 | 0.6 | ≤200 | 醋酸类 |
主要零件材质
阀体/阀盖 | ZGICr18 Ni9Ti | ZG00Cr18 Ni10 | ZG1Cr18 Ni12M0 2 Ti | ZG00Cr17Ni14M0 2 | WCB | 零件名称 | ZGICr18 Ni9Tit系列 | ZG00Cr18 Ni10系列 | ZG1Cr18 Ni12M0 2 Ti系列 | ZG00Cr17Ni14M0 2系列 | WCB系列 | 闸板 | ZGICr18 Ni9Ti | ZG00Cr18 Ni10 | ZG1Cr18 Ni12M0 2 Ti | ZG00Cr17Ni14M0 2 | 1Cr13 | 阀杆 | 1Cr18 Ni9Ti | 00Cr18 Ni10 | 1Cr18 Ni12M0 2 Ti | 00Cr17Ni14M0 2 | 1Cr13 | 填料 | PTFE编织 | PTFE编织 | PTFE编织 | PTFE编织 | 石墨 | 垫片 | 304L＋PTFE | 304L＋PTFE | 316＋PTFE | 316L＋PTFE | 石墨 | 压盖 | ZGICr18 Ni9Ti | ZG00Cr18 Ni10 | ZG1Cr18 Ni12M0 2 Ti | ZG00Cr17Ni14M0 2系列 | WCB | 填料压环 | 1Cr18 Ni9Ti | 00Cr18 Ni10 | 1Cr18 Ni12M0 2 Ti | 00Cr17Ni14M0 2 | 1Cr13 | 螺栓 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 1Cr17Ni2 | 35CrMoA | 螺母 | 1Cr18 Ni9Ti | 1Cr18 Ni9Ti | 1Cr18 Ni9Ti | 1Cr18 Ni9Ti | 45 |

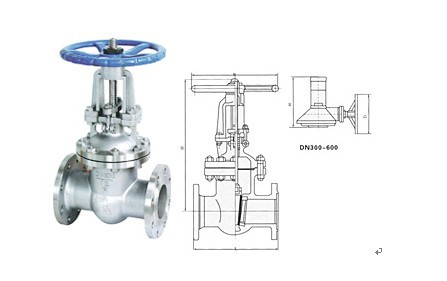

1.6MPa主要连接尺寸 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | L | mm | 130 | 150 | 160 | 180 | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 | H | mm | 175 | 180 | 210 | 210 | 350 | 358 | 373 | 435 | 500 | 614 | 674 | 818 | 1225 | 1415 | 1630 | 1780 | 2050 | 2181 | 2599 | W | mm | 180 | 180 | 200 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 360 | 400 | 450 | 500 | 500 | 600 | 720 | 720 | 720 |
2.5MPa主要连接尺寸 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | L | mm | 130 | 150 | 160 | 180 | 200 | 250 | 265 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 | H | mm | 175 | 180 | 210 | 210 | 350 | 358 | 373 | 435 | 500 | 614 | 674 | 818 | 1225 | 1415 | 1630 | 1780 | 2050 | 2181 | 2599 | W | mm | 180 | 180 | 200 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 360 | 400 | 450 | 500 | 500 | 600 | 720 | 720 | 720 |
4.0MPa主要连接尺寸 尺寸 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | L | mm | 130 | 150 | 160 | 180 | 200 | 250 | 280 | 310 | 350 | 400 | 450 | 550 | 650 | 750 | 850 | 950 | H | mm | 175 | 180 | 210 | 210 | 350 | 358 | 373 | 435 | 500 | 614 | 674 | 818 | 1225 | 1415 | 1630 | 1780 | W | mm | 180 | 180 | 200 | 200 | 200 | 240 | 240 | 280 | 320 | 360 | 360 | 400 | 450 | 500 | 500 | 600 |
|
|
