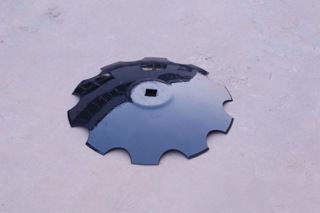

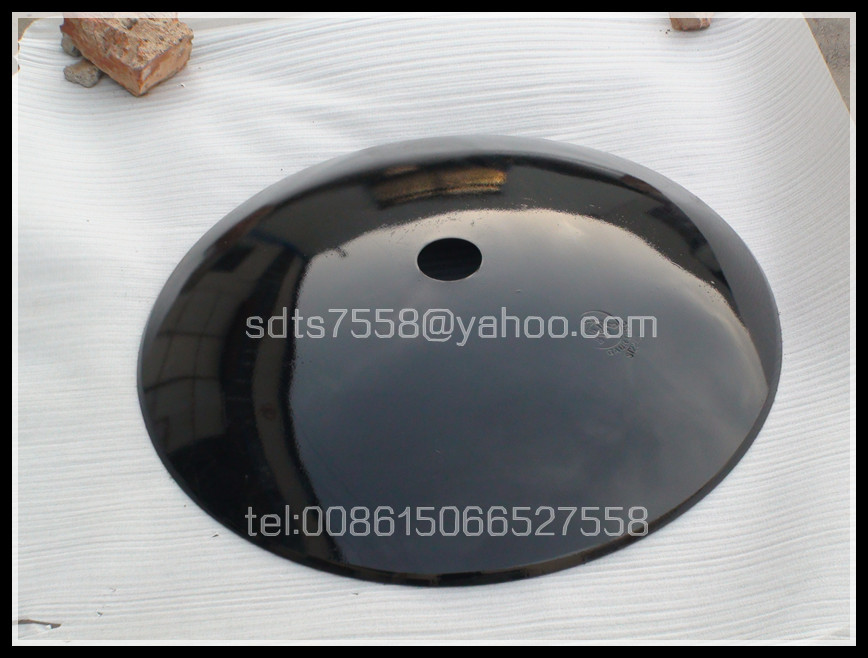

碳素钢耙片，65MN 耙片，圆盘耙片，缺口耙片，平台耙片
主要规格参数：
材料：优质65MN弹簧钢
直径：12“-32”
厚度： 3-12mm
HRC:38-50
Diameter | Overall dimension | Thickness |
mm | inch | mm | mm |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3; 4 |
460 | 18 | 38~60 | 3; 4 |
480 | 19 | 57 | 3; 4 |
510 | 20 | 44~63 | 3; 4; 5 |
535 | 21 | 63 | 3; 4; 5 |
560 | 22 | 60~85 | 4; 5; 6 |
585 | 23 | 75~90 | 4; 5; 6 |
610 | 24 | 75~95 | 4; 5; 6 |
660 | 26 | 86~115 | 5; 6; 7; 8 |
710 | 28 | 100~130 | 5; 6; 7; 8 |
760 | 30 | 120~135 | 6; 7; 8; 10; 12 |
810 | 32 | 120~140 | 8; 10; 12 |
、
