K23JD-15 K23JD-20 K23JD-25 二位三通电磁换向阀 k23jd-181
K23JD-15 K23JD-20 K23JD-25是一种用压缩空气操作的自动化元件,K23JD-15 K23JD-20 K23JD-25受配压阀压力空气的控制,通常与电磁配压阀组合使用,K23JD-15 K23JD-20 K23JD-25可用于远距离控制水电站油、气、水管路系统的通断。 K23JD-15 K23JD-20 K23JD-25用于降低并稳定系统中某一支路的气压力,常用于夹紧、控制、润滑等气路。K23JD-15 K23JD-20 K23JD-25有直动型与先导式。99
K23JD-15 K23JD-20 K23JD-25 series 3/2-ways shut directional valve is a product jointly designed by
First Ministry ofMachinery have streamlined structure and reliable actions.
K23J系列截止式换向阀
K23JD-6 K23JD-8 K23JD-10 K23JD-15 K23JD-20 K23JD-25
K23JD-6T K23JD-8T K23JD-10T K23JD-15T K23JD-20T K23JD-25T
K23JD2-6 K23JD2-8 K23JD2-10 K23JD2-15 K23JD2-20 K23JD2-25
K23JD2-6T K23JD2-8T K23JD2-10T K23JD2-15T K23JD2-20T K23JD2-25T
K23JD-6P K23JD-8P K23JD-10P K23JD-15P K23JD-20P K23JD-25P
K23JD2-6P K23JD2-8P K23JD2-10P K23JD2-15P K23JD2-20P K23JD2-25P
截止阀(机械部.无锡市气动元件总厂联合设计型)
型 号 | K23JD-6 | K23JD-8 | K23JD-10 | K23JD-15 | K23JD-20 | K23JD-25 | K23JD-F32 | K23JD-F40 | K23JD-F50 |
公称通径 (mm) | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
工作压力 (MPa) | 0.15~0.8 | ||||||||
泄漏量 (cm3/min) | =<10 | =<10 | =<25 | =<25 | =<50 | =<50 | =<70 | =<70 | =<70 |
换向时间 (S) | =<0.04 | =<0.04 | =<0.06 | =<0.06 | =<0.1 | =<0.1 | =<0.15 | =<0.15 | =<0.2 |
切换频率 (Hz) | >=10 | >=10 | >=8 | >=8 | >=4 | >=4 | >=3 | >=3 | >=2 |
环境温度 (°C) |
-10~55 | ||||||||
介质温度 (°C) |
-5~50 | ||||||||
流通能力S值 (mm2) | >=10 | >=20 | >=40 | >=60 | >=120 | >=190 | >=300 | >=400 | >=650 |
电源电压 (V) |
AC: 220, 110, 36, DC: 48, 24, 12 电压波动允许为额定值的+10%~-15% , 气控无本项参数 | ||||||||
寿命 (万次) |
>=150 |

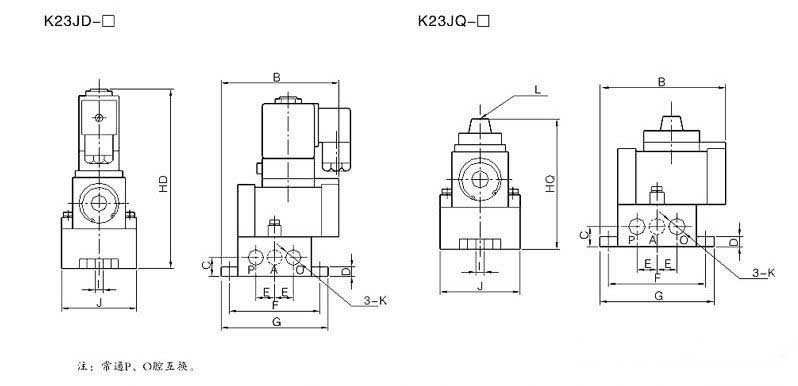

型号 | 接管螺纹 K | B | C | D | E | F | G | HD | HQ | I | J | L |
K23JD-6 | G1/8 (M10X1) |
90 | 14 | 7 | 14 | 68 | 80 | 134 | 91 | 7 | 56 | G1/8 |
K23JD-8 | G1/4 (M12X1.25) | |||||||||||
K23JD-10 | G3/8 (M16X1.5) | 125 | 19 | 10 | 19 | 86 | 100 | 155 | 111 | 7 | 64 | |
K23JD-15 | G1/2 (M20X1.5) | |||||||||||
K23JD-20 | G3/4 (M27X2) | 180 | 30 | 12 | 30 | 130 | 162 | 218 | 149 | 11 | 100 | |
K23JD-25 | G1 (M33X2) |
