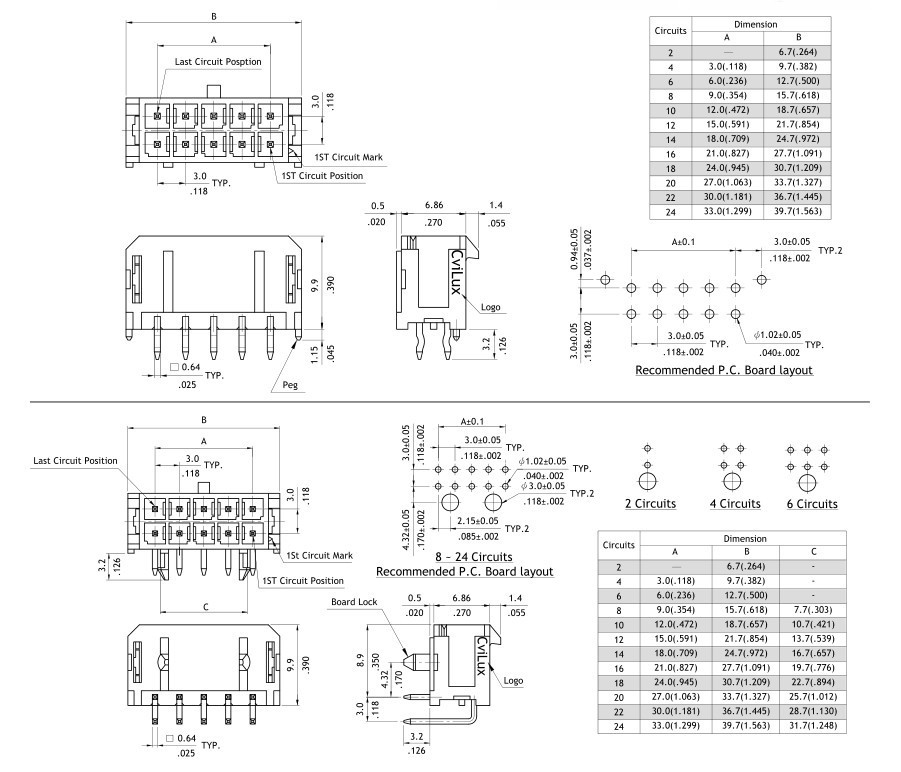

CP35 Series 3.00mm(.118) Dual Rows Right Angle DIP Header Power Connectors
◎ Rated current and voltage : 4A~5A , 250V AC(r.m.s) ◎ Dielectric Withstanding Voltage : 1500V AC for one minute ◎ Contact Resistance : ＜10mΩ ◎ Insulation Resistance : ＞1000MΩ ◎ Operating Temperature : -40℃~105℃ ◎ RoHS Compliant
