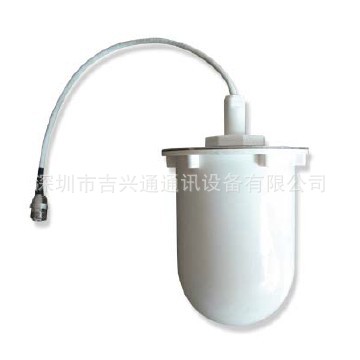

Model

JXT-SA698/2700-3/5

Frequency Range

698-960MHz / 1710-2700MHz

Gain

3/5 DBI

VSWR

≤ 2 Ω

Polarization

Vertical

Horizontal Beamwidth

360º

Vertical Beamwidth

45º - 65º

Intermodulation

< - 107 dbm

Input Impedance

50Ω

Max Input Power

100W

Connector

N-Female , Cable 5D-FB

Lighting Protection

DC Ground

Mechanical Specifications

Dimensions

168*98mm

Weight

250g

Radome Material

Uv-Protected ABS

Environment Temperature

Working Temperature : -40º - +60º

Limit Temperature : -55º
- +70º
