■ Description产品说明
KN-FL-10W（E）is a kind of emergency light with multifunction and chargeable. Lifespan is up to 300 times of using. New appearance, Compact structure, and convenient to carry. High efficiency Integrated light source of LED and perfect IC of power managing guarantee the stabilization of constant current output and extend the lifespan of LED.
LithiumIonbattery with high volume could guarantee over continuous 3 hours lighting needs. The protection fender itself could prevent battery core from the harm outside
KN-FL -10W（E）是一款多用途充电应急泛光灯，长达300次以上的使用寿命。产品外观新颖，结构紧凑，携带方便。高效的LED集成光源和优质的电源管理IC，确保恒流输出稳定，延长LED寿命。大容量的锂离子电池可以保证连续3小时以上的照明需求，自带的保护板可确保电芯不会受到损害
■Applications产品应用
● Night lighting and Outdoor activities 夜间照明、户外活动
● Emergency lighting and Signal warning 应急照明、信号警示
● Emergency driver(still in developing) 应急电源（开发中）
■Product Picture产品图片
■Features产品参数
●Adaptor适配器
Input Voltage输入电压 | 100-240VAC |
Output Voltage输出电压 | 12±0.5VDC |
Efficiency 效率 | ≥85% |
Car Adaptor 车充 | Input Voltage输入10-16VDC |
Output Current电流0.7A |
Technical Parameter技术参数
LED数量 | 1 PC |
Working VoltageLED工作电压 | DC24±0.8V |
Led ConsumptionLED功耗 | 8W |
System Consumption系统功耗 | 10W |
Led Luminous EfficiencyLED发光效率 | 70-80 Lm /W |
Led Initial FluxLED灯具初始光通量 | 400～600Lm |
Junction Temperature LED结温 | ≤80℃ |
Color Temperature色温 | 2700-7000K |
lamp’s Efficiency灯具效率 | ＞80 % |
Illuminance Uniformity照度均匀度 | ＞0.5 |
Color Rendering Index显色指数 | Ra＞75 |
Light Distribution配光曲线 | 对称式/圆形光斑 |
Light Design配光方式 | LED+反光罩二次配光 |
Cycle life电池循环寿命 | ＞300 times |
Capacity电池容量 | 4000mAh/7.4V |
Charging Time充电时间 | 6～7Hrs |
Working Time工作时间 | ≥3.0Hrs |
Operating Temperature工作温度 | Charging 充电 0～+45℃ |
Discharging放电 -20℃～+60℃ | |
Storage Temperature储存环境温度 | -20℃～+70℃ |
IP Grade防护等级 | IP65 |
Life-span光源寿命 | ≥50000Hrs |
Net weight净重 | 1.4Kg |
The color of the lamp shell灯具颜色 | Yellow/black/ silver黄色、黑色、银色 |
注：不同色温的LED光性能有所偏差，偏差值≤5%
Note:Light optic with a little deviation for different color temperature LED，deviation value≤5%

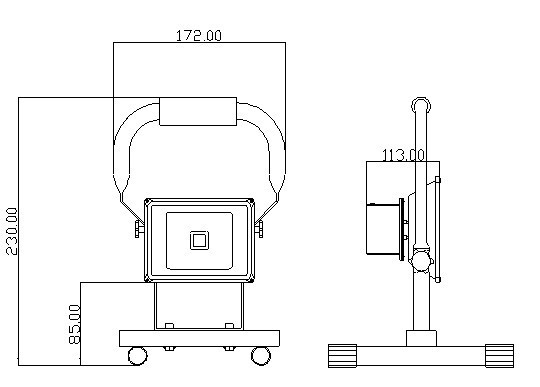

■Dimension尺寸
■Packing /weight包装/重量
The size of the radiator package size 灯具包装尺寸(W*L*H) | 205*220*255（mm） |
The size of the package size 外箱尺寸(W*L*H) | 455*425*275（mm） |
Qty数量 | 4pcs |
The weight of the radiator after packing 灯头包装后重量 | 2.87 Kg |
Net weight净重 | 1.4Kg |
