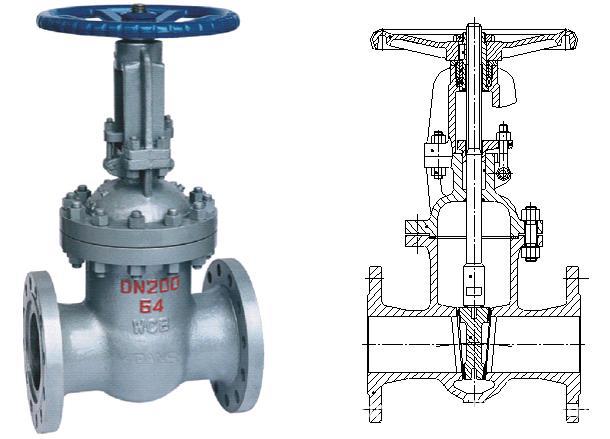

设计尺寸：
1、设计制造按GB12234-89
2、结构长度按GB12221-89
3、法兰尺寸按JB/T79-94
4、阀门检查和试验按GB13927
性能规范:
型号 | 公称压力
(MPa) | 实验压力 | 工作温度(℃) | 适用介质 |
强度(水)(Mpa) | 密封(水)空气 | 低压密封空气(Mpa) |
Z4IH -16C
Z41W-16P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤200 | NITRICACID |
硝酸类 |
ACETICACID |
醋酸类 |
NITRICACID |
Z41W-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤200 | 硝酸类 |
Z41W-40P(R) | 4.0 | 6.0 | 4.4 | 0.6 | ≤200 | ACETICACID |
Z41W-64P(R) | 6.4 | 9.6 | 7.0 | 0.6 | ≤200 | 醋酸类 |
主要零件材质:阀体/阀盖 | ZG1Cr18Ni9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB |
零件名称 | ZG1Cr18Ni9Ti系列 | ZG00Cr18Ni10系列 | ZG1Cr18Ni12Mo 2 Ti系列 | ZG00Cr17Ni14Mo 2系列 | WCB系列 |
闸板 | ZG1Cr18NI9Ti | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | 1Cr13 |
阀杆 | 1Cr18Ni9Ti | ooCr18Ni10 | 1Cr18Ni12Mo 2 Ti | ooCr17Ni14Mo 2 | 1Cr13 |
填料 | PTFE编织 | PTFE编织 | PTFE编织 | PTFE编织 | 石墨Graphite |
垫片 | 304L+PTFE | 304L+PTFE | 316L+PTFE | 316L+PTFE | 石墨+304
Graphite+304 |
压盖 | ZG1Cr181Ni10 | ZG00Cr18Ni10 | ZG1Cr18Ni12Mo 2 Ti | ZG00Cr17Ni14Mo 2 | WCB |
填料压环 | 1Cr18Ni9Ti | 00Cr18Ni10 | 1Cr18Mi12Mo 2 Ti | 00Cr17Ni14Mo 2 | 1Cr13 |
螺栓 | 1Cr171Ni2 | 1Cr171Ni2 | 1Cr171Ni2 | 1Cr171Ni2 | 35CrMoA |
螺母 | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 45 |
