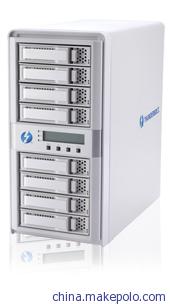

供应ARECA ARC-8050磁盘阵列
北京博恒视创科技有限公司
中国 北京
产品属性
图文详情
品牌推荐
型号
ARC-8050
品牌
ARECA
标配CPU个数
其他
支持内容容量
8GB或以下
内置硬盘接口
ATA/SAS
单机磁盘数量
8
平均传输速率
1000Mbps
Controller Architecture | ||
 | 800 MHz Dual core ROC for RAID core and SAS microcode | |
| 1GB on-board DDR3-1333 SDRAM with ECC protection | |
| Write-through or write-back cache support | |
| Support 8 internal 6Gb/s SAS ports | |
| Multi-RAID storage support for large storage requirements | |
| Support EFI BIOS for bootable from RAID storage volume | |
| NVRAM for RAID event & transaction log | |
| Redundant flash image for adapter availability | |
| Battery Backup Module ready (Option) | |
| RAID Features | ||
| RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD | |
| Multiple RAID selection | |
| Online array roaming | |
| Online RAID level/stripe size migration | |
| Online capacity expansion and RAID level migration simultaneously | |
| Online volume set growth | |
| Support global hot spare and local hot spare | |
| Instant availability and background initialization | |
| Automatic drive insertion / removal detection and rebuilding | |
| Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets | |
| Support intelligent power management to save energy and extend service life | |
| Support NTP protocol to synchronize RAID controller clock over the on-board LAN port | |
| Monitors/Notification | ||
| Environment and drive failure indication through LCD, LED and alarm buzzer | |
| Keep silent and adequate air flow and cooling by intelligent cooling fan speed controller | |
| Enclosure management ready | |
| Drive Support | ||
| Up to 8 x 6Gb/s SAS/SATA/SSD | |
| Host Connection | ||
| Two Thunderbolt Channels- dual 10 Gbps channel per channel | ||
| Simultaneous bi-directional, 10 Gbps transfers over a single cable | |
| Dual-protocol support (PCI Express and DisplayPort) | |
| Compatible with existing DisplayPort devices | |
| Daisy-chaining devices | |
| RAID Management | ||
| Field-upgradeable firmware in flash ROM | |
| Firmware-embedded RAID manager via McBIOS Setup and LCD | |
| Firmware-embedded browser-based RAID manager, SMTP manager, SNMP agent and Telnet function via out-of-band 10/100Mbit LAN port or in-band Archttp utility | |
| API library for customer to combine GUI with its own monitor utility | |
| Command Line Interface | |
| Software Drivers | ||
| Mac OS X 10.6.x/10.7.x/10.8.x | |
| Windows 7/8 “For Windows, Install Driver First” | |
