（工厂批发）中性无线AP 酒店 餐厅 休闲中心 连锁店无线AP 现货 无线覆盖最好选择。。
成熟产品，完善的售后。期待您的惠顾。
Specifications
1.Up to 150Mbps with auto fall back with IEEE 802.11b/g
2.Static IP WAN connection
3.DHCP client WAN connection
Products:
Description

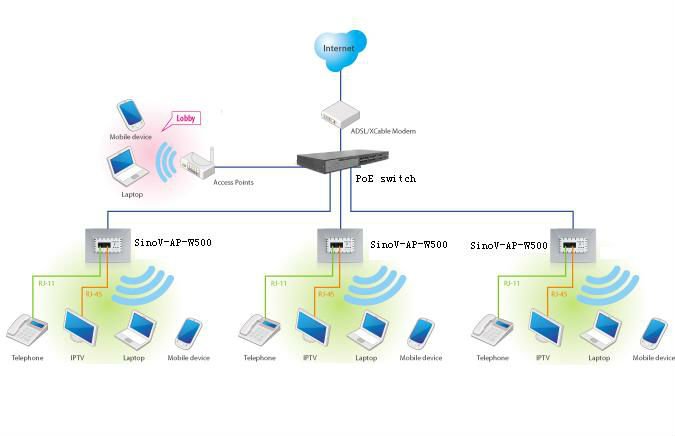

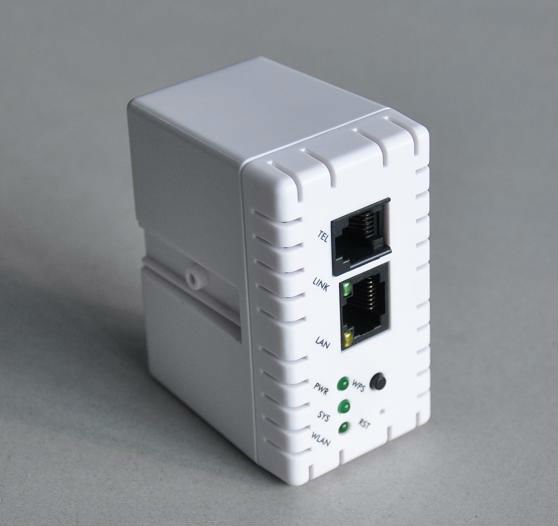

The SINOV-AP-W500 In Wall Access Point is designed as 150Mbps Internet access for Hotel / MDU System Integrator to provide guests and roomers secure Internet access and phone line connection in their hotel room, guest room, living room and lobby. It is deployed by systems integrator simply to connect with PoE switch, PSTN line, or Internet Subscriber Server that can upgrade the function into proprietary AAA (authentication, authorization, and accounting) billing service.
The SINOV-AP-W500 avoids channels conflict when guests and roomers connect to the Internet as its lowest RF output adjustable to match every room. It enhances security function by utilizing WEP and WPA/WPA2 encryption. With a practical, thoughtful, and compact design, it has 3 levels of adjustment with patented retractable screws to fit any wall jack suitable for stylish hotels, luxury houses, and MDUs (Multi-Dwelling Units).
Add wireless and wired Internet connections for your handheld devices, laptop and IPTV needs in the hotel room. | |
All-In-One Hotel Room Internet Access | |
One RJ-45 port for connecting IPTV and laptop, one RJ-11 port for connecting telephone devices and the smallest access point for iPhone, iPad and Android smart phones. | |
Avoid Channel Conflict | |
Adjust output power of SINOV-AP-W500 wireless signals to as low as possible so that it is just enough to cover each single room. | |
Easy to Install | |
It doesn’t need to pull new wirings for WiFi Internet installation, reuse the existing network infrastructure and energy saving. |
specification | |
Network specification | IEEE802.3 10Base T Ethernet IEEE802.3u 100Base TX fast Ethernet IEEE802.3af Power over Ethernet IEEE802.11n Wireless LAN 150Mbps IEEE802.11g Wireless LAN 54Mbps IEEE802.11b Wireless LAN 11Mbps ANSI/IEEE802.3 NWay auto-negotiation |
Wireless | Up to 150Mbps with auto fall back with IEEE 802.11b/g WPA/WPA2, 64/128 bit WEP data encryption |
Modulation type | OFDM, DSSS, BPSK, QPSK, CCK |
Frequency band | 2.4 GHz frequency band |
Compatibility | All Wi-Fi cerificated wireless adaptors Support all operation systems |
Interface | 1 LAN port for 10/100Base TX auto cross-over 1 TCP/IP port for 10/100Base TX support IEEE 802.3af PoE 2 RJ-11 connectors for telephone transparent |
Rich networking function | Static IP WAN connection DHCP client WAN connection NTP client |
Management | Web-based management tool TFTP/HTTP firmware upgrade Backup/Restore configuration file Remote authorized management SNMP v1/v2 (MIB II) |
Security and firewall | SSL user login page Configuration page Layer 2 isolation security IP/MAC/URL address pass through VPN (IPSec/PPTP) pass through PPTP VPN client |
Power requirement | Only support IEEE 802.3af Power over Ethernet Power consumption: under 7.2 Watts |
Output power | SINOV-AP-W500L11n : -7dBm 11g: -7dBm 11b: -3dBm SINOV-AP-W500H11n :14dBm 11g:14dBm 11b: 14dBm |
LED indicators | One power LED One WAN Link/ Activity LED One LAN Link/ Activity LED One WLAN Link/ Activity LED One system LED |
Dimension | (L): 71.6m / (W): 39.3mm / (H): 55mm Weight: about 84g (net) |
Environmental conditions | Operating temperature: 0C to 50C Storage temperature: -10C to 60C Humidity: 20% ~ 90% non-condensing 20% ~ 80% condensing
|
Enclosures and mounting boxes | Support both Europe or USA |
