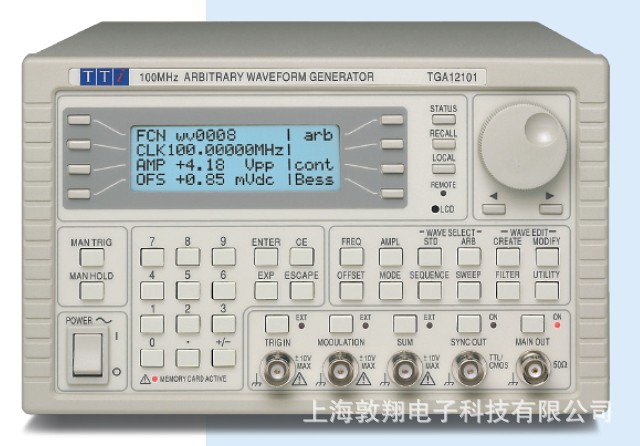

英国TTi 单通道任意波形产生器 波形发生器 TGA12101
l 100MS/s universal arbitrary
l waveform generators
l One, two or four channels
l 1M word waveform memory
l External ARB clock input
l Storage on CF memory cards
l RS-232, GPIB and USB interfaces
l Features as per the TGA1240 series with the following additions:
l 100MS/s maximum sampling, (0.1Hz to 100MHz variable clock).
l 1,048,576 point waveform memory per channel.
l Waveform storage using removable CompactFlash memory cards.
l 40MHz function generator capabilities using DDS.
l External ARB clock input for synchronism with external signals.
l “System clock” architecture for reduced inter-channel skew.
l Auxiliary sinewave output (3rd or 5th output) on TGA12102/4.
l RS-232 and GPIB (IEEE-488.2) and USB interaces.
TGA12101任意波形发生器|英国TTI函数信号发生器
型号: TGA12101
单通道输出. 40MHz 100MS/s任意波型输出
扫频、AM调制
触发、音调开关
RS232, GPIB, USB 通讯接口
